Запчасти Case W14C (8-12) - HYDRAULIC CIRCUIT, CLAM BUCKET AND GRAPPLE (08) - HYDRAULICS

1

L115160

VALVE

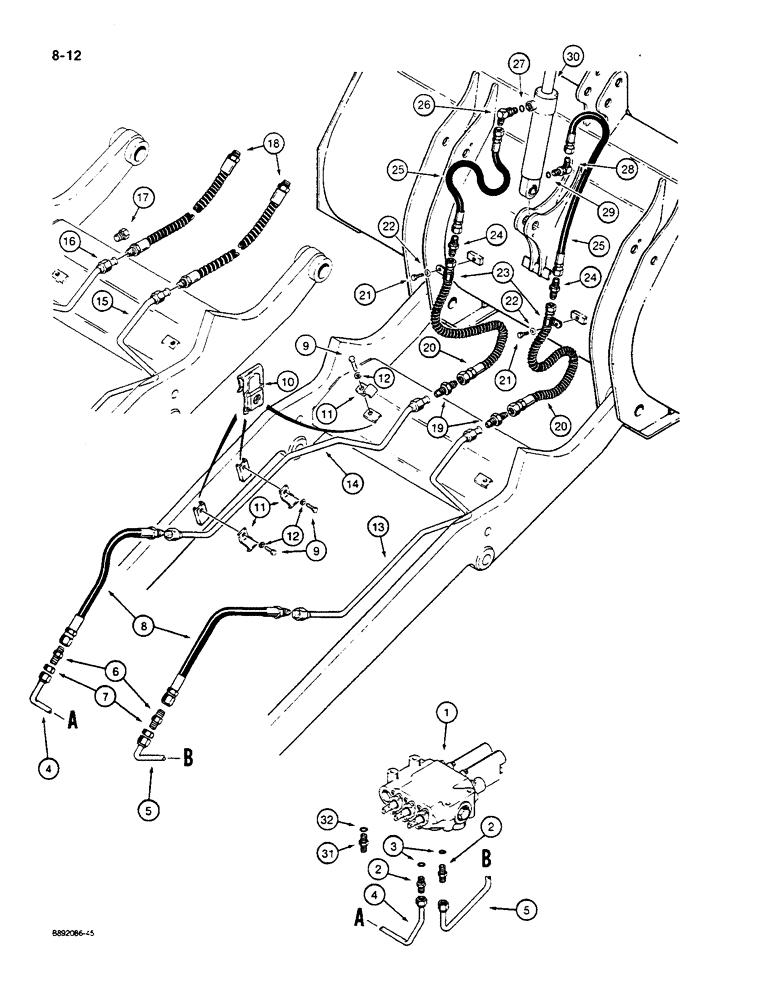

ASSEMBLY - loader control, three spool, parts list Figure 8-18, parts for clam and grapple circuit

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, parts for clam and grapple circuit

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Parts for clam and grapple circuit

1шт.

4

L113146

TUBE ASSY.,19.05 mm OD

TUBE - from valve to left-hand side, parts for clam and grapple circuit

1шт.

5

L126804

TUBE,19.05 mm OD

- from valve to right-hand side, parts for clam and grapple circuit

1шт.

6

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ, parts for clam and grapple circuit

2шт.

7

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16 inch NF, parts for clam and grapple circuit

2шт.

8

L116141

HOSE

- 927 mm long, parts for clam and grabble circuit

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Parts for clam and grapple circuit

6шт.

10

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, , Parts for clam and grapple circuit Ret, J, 3/8"-16

6шт.

11

D41165

CLAMP,19mm ID, 10.5mm Bolt Hole, J Type

- tube, parts for clam and grapple circuit

6шт.

12

492-11038

LOCK WASHER,3/8"

parts for clam and grapple circuit 3/8"

6шт.

13

L115964

TUBE ASSY.,19.06 mm OD

TUBE - valve to clam cylinder, right-hand, parts for clam circuit

1шт.

14

L115966

TUBE ASSY.,19.05 mm OD

TUBE - valve to clam cylinder, left-hand, circuit

1шт.

15

218-777

PLUG,1 1/16"-12, 37 Degree

- hex, 1-1/16-12 inch flare, if used, parts for clam circuit

2шт.

16

L54592

HOSE,0.50" ID x 50.00"

ASSY, , Clam Bucket, Circuit 0.50" ID x 50.00"

2шт.

17

L103965

PIPE,0.75" OD

TUBE - valve to grapple cylinder, right-hand, circuit

1шт.

18

L103967

PIPE,0.75" OD

TUBE - valve to grapple cylinder, left-hand, circuit

1шт.

19

218-853

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 1-1/16 NF x 3/4 NF inch flare, parts for grapple circuit

2шт.

20

R29428

HOSE

- 40-1/2 inch, long, parts for grapple circuit

2шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Parts for grapple circuit

2шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Parts for grapple circuit 3/8", SAE

2шт.

23

L32065

CLAMP

- hose to bucket, parts for grapple circuit

2шт.

24

218-430

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male JIC

ADAPTER - straight, 7/8 NF flare x 3/4 inch NF flare, parts for grapple circuit

2шт.

25

35209

HOSE ASSY.

HOSE - 32 inch long, parts for grapple circuit

2шт.

26

L78523

ELBOW

- 90 degree, adjustable, restrictor, parts for grapple circuit

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Parts for grapple circuit

1шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

ASSEMBLY - 90 degree adjustable, 7/8-14 inch thread, parts for grapple circuit

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Parts for grapple circuit

1шт.

30

G100723

CYLINDER ASSY.

CYLINDER ASSEMBLY - grapple, parts list Figure 8-36, circuit

1шт.

31

L123797

RESTRICTOR

FITTING - restrictor, used only with grapple circuit

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Parts used with grapple circuit

1шт.
