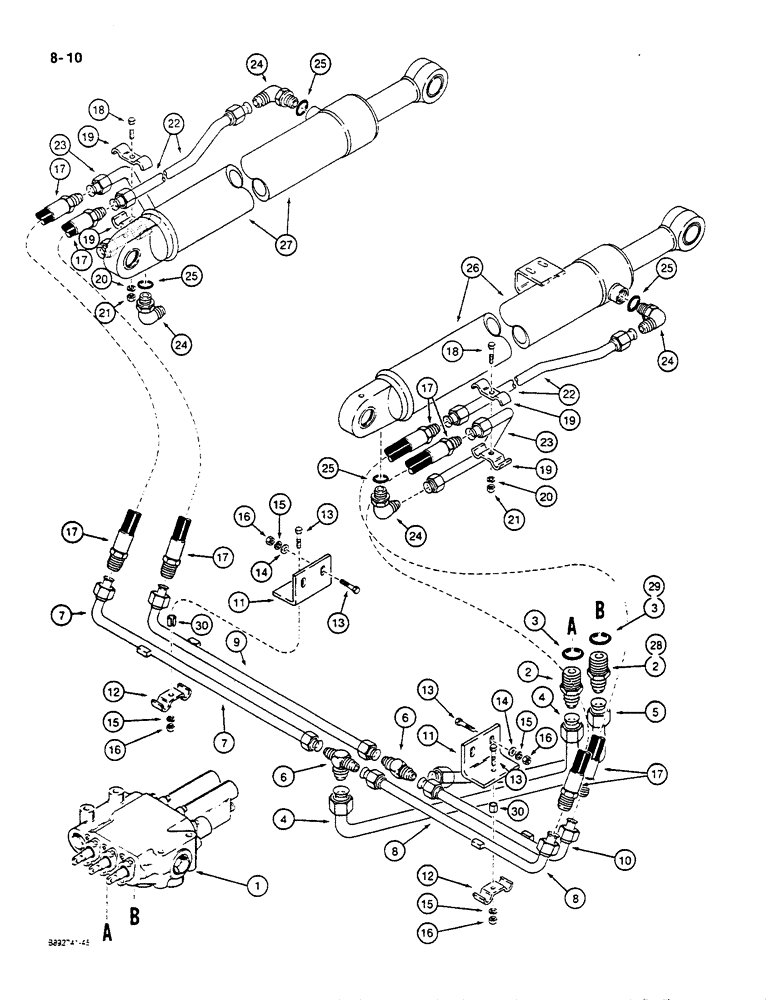

Запчасти Case W14C (8-10) - HYDRAULIC CIRCUIT, LOADER BUCKET (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - loader, see Figuress 8-16 and 8-18

1шт.

for correct valve assembly and components

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16 NF flare x 1-1/16 NF, see item 28 for adapter used with grapple at "B" port of bucket section

1-2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

4

L117810

TUBE ASSY.,25.4 mm OD x 476.4, 142.4 mm L

TUBE - bucket, "A" port of bucket section to closed end of cylinders

1шт.

5

L117771

TUBE ASSY.,25.4 mm OD

TUBE - bucket, "B" port of bucket section to rod end of cylinders

1шт.

6

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

- 1-5/16-12 flare base x 1-1/16-12 inch flare

2шт.

7

L114585

TUBE ASSY.,170.5 mm L

TUBE - bucket, left-hand cylinder, closed end

1шт.

8

L114587

TUBE ASSY.,168.1 mm L

TUBE - bucket, right-hand cylinder, closed end

1шт.

9

L114584

TUBE,119.5 mm L

- bucket, left-hand cylinder, rod end

1шт.

10

L114586

TUBE ASSY.,117.5 mm L

TUBE - bucket, right-hand cylinder, rod end

1шт.

11

L47468

BRACKET

- tube mounting

2шт.

12

R15257

CLAMP

- tube

2шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

6шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

15

492-11038

LOCK WASHER,3/8"

6шт.

16

425-106

NUT,3/8"-16, Cl 5

6шт.

17

L113967

HOSE ASSY.

HOSE - 36 inch long, bucket cylinder ports

4шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

19

R15257

CLAMP

- tube

4шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

L116244

TUBE ASSY.,19.05 mm OD x 754.8, 43.3 mm L

TUBE - at cylinder, rod end

2шт.

23

L116242

TUBE ASSY.,19.05 mm OD x 158.7, 144.2 mm L

TUBE - at cylinder, closed end

2шт.

24

L114091

FITTING

ELBOW - 90 degree, special

4шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

26

G108394

CYLINDER

ASSEMBLY - bucket, right-hand, parts list Figure 8-34

1шт.

27

G108393

CYLINDER

ASSEMBLY - bucket, left-hand, parts list Figure 8-34

1шт.

28

L123797

RESTRICTOR

ADAPTER - restrictor, used only with grapple, "B" port of bucket section

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

30

D76209

SPACER

- tube, Serial Range: bracket-clamp

2шт.
