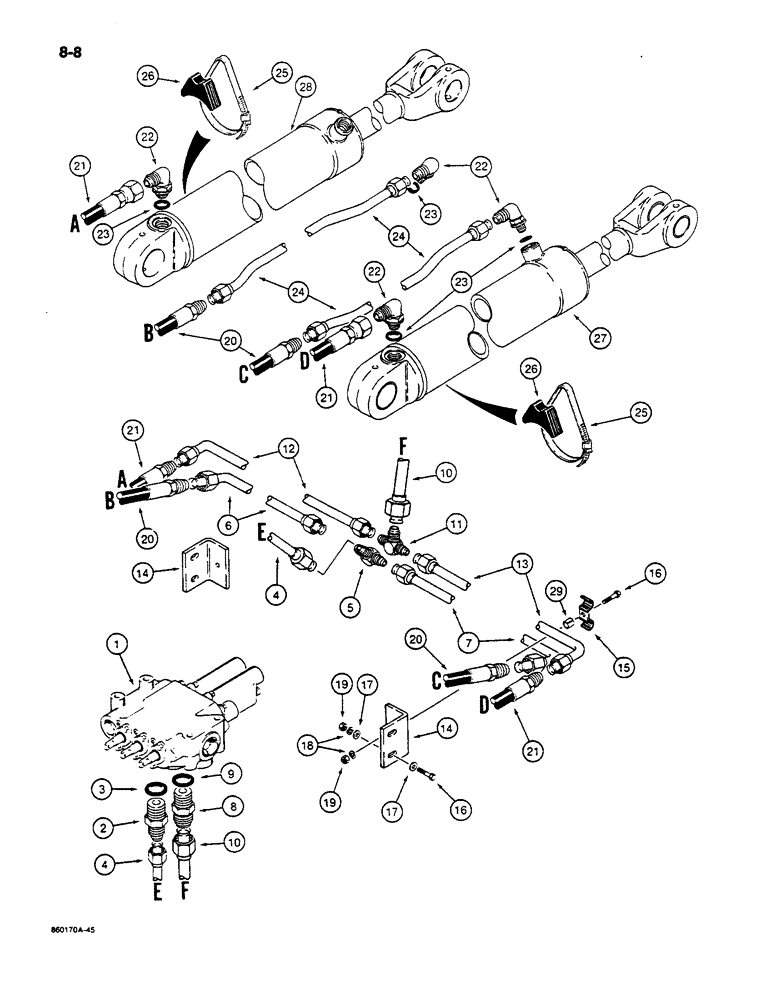

Запчасти Case W14C (8-08) - HYDRAULIC CIRCUIT, LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - loader, see Figures 8-16 and 8-18

1шт.

for correct valve assembly and components

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

4

L113832

TUBE ASSY.,19.05 mm OD x 947.4, 320.8 mm L

TUBE - crossover, rod end of cylinder

1шт.

5

218-596

TEE,1 1/16"-12 37 Degree

- 1-1/16-12 inch flare

1шт.

6

L114588

TUBE,129.7 mm L

- lift, left-hand cylinder, rod end

1шт.

7

L114590

TUBE,127.3 mm L

- lift, right-hand cylinder, rod end

1шт.

8

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16 NF flare x 1-1/16 NF

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

10

L117774

TUBE ASSY.,25.4 mm OD

TUBE - crossover, closed end of cylinder

1шт.

11

218-606

TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br

- 1-5/16-12 flare base x 1-1/16-12 inch flare

1шт.

12

L114589

TUBE ASSY.,179.3 mm L

TUBE - lift, left-hand cylinder, closed end

1шт.

13

L114591

TUBE ASSY.,179.3 mm L

TUBE - lift, right-hand cylinder, closed end

1шт.

14

L47468

BRACKET

- tube mounting

2шт.

15

R15257

CLAMP

- tube

2шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

6шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

18

492-11038

LOCK WASHER,3/8"

6шт.

19

425-106

NUT,3/8"-16, Cl 5

6шт.

20

L113967

HOSE ASSY.

HOSE - 36 inch long, lift cylinder rod end

2шт.

21

L116141

HOSE

- 927 mm long, lift cylinder closed end

2шт.

22

L114091

FITTING

ELBOW - 90 degree, special

4шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

24

L77722

TUBE,0.75" OD x 29.5, 0.97" L

- at cylinder

2шт.

25

214-183

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

CLAMP - adj, 5-1/4 to 6-1/8 inch dia

2шт.

26

L79937

SADDLE

- tube

2шт.

27

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, right-hand, see Figuress 8-30 and

1шт.

8-32 for correct cylinder assembly and components

1шт.

28

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, left-hand, see Figures 8-30 and

1шт.

8-32 for correct cylinder assembly and components

1шт.

29

D76209

SPACER

- tube, Serial Range: bracket-clamp

2шт.
