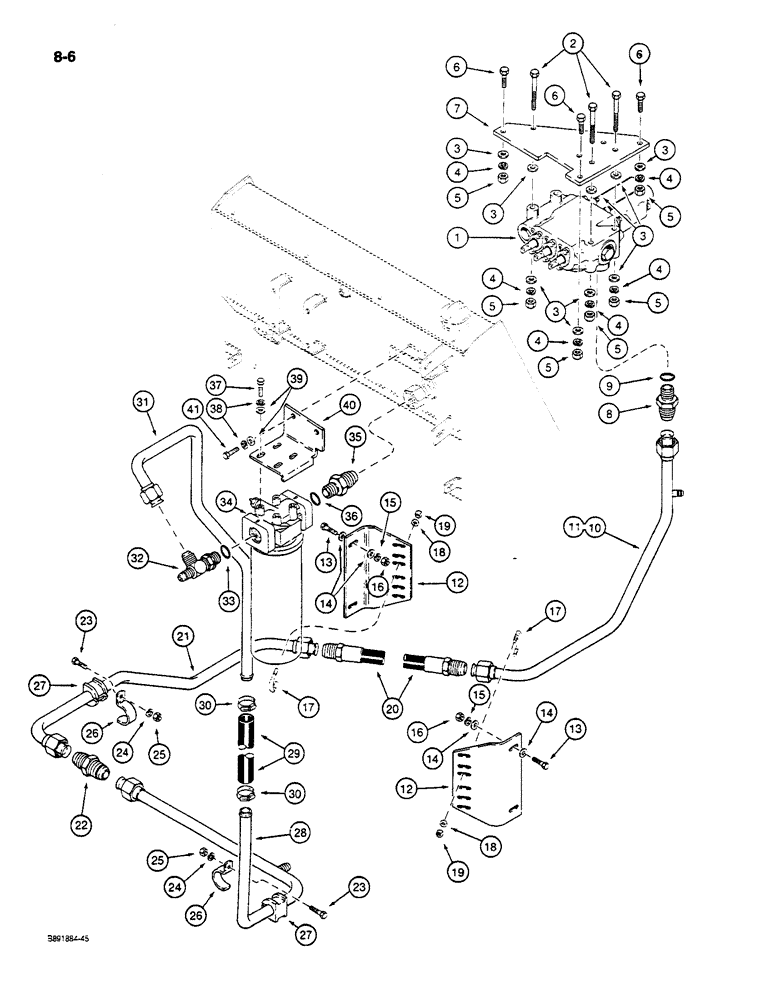

Запчасти Case W14C (8-06) - HYDRAULIC CIRCUIT, LOADER CONTROL VALVE TO FILTER AND RESERVOIR (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE ASSEMBLY - loader, see Figures 8-16 and 8-18

1шт.

for correct valve assembly and components

1шт.

2

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

3шт.

3

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

9шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

7

L112631

PLATE

- valve mounting

1шт.

8

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - straight, 1-5/16 x 1-5/8 inch thread

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

10

L127596

TUBE ASSY.,31.75 mm OD

TUBE - return from loader valve, two spool, if used

1шт.

11

L127595

TUBE,31.75 mm OD

- return from loader valve, three spool, if used

1шт.

12

L117452

BRACKET

- return tubes, used with axle mounted parking brake

2шт.

13

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

L104253

U-BOLT

- tube mount

2шт.

18

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

19

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

20

L115834

HOSE ASSY.

HOSE - 26 inch long, return, through center joint

1шт.

21

L116833

TUBE,31.75 mm OD

- return to filter, left-hand, rear chassis

1шт.

22

218-439

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male JIC

CONNECTOR - straight, 1-5/8-12 inch flare

1шт.

23

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

D68845

MOUNTING CLIP

CLAMP - tube

2шт.

27

D67298

INSULATOR

- tube clamp

2шт.

28

L116909

TUBE ASSY.

TUBE - return to filter, crossover

1шт.

29

L113907

HOSE,1.25" ID x 9.00", SAE 100R3

Return 1.25" ID x 9.00", SAE 100R3

1шт.

30

214-371

CLAMP,1.56"-1.81", T-Bolt

- adj, 1-9/16 to 1-13/16 inch dia.

2шт.

31

L118614

TUBE ASSY.,31.75 mm OD x 655, 924 mm L

TUBE - return to filter

1шт.

32

218-5240

TEE,37 Degree, 1 1/16"-12, 1 1/16"-12 O-Ring Run, 1 5/8"-12

- 1-5/8-12 flare base x 1-5/16-12 inch flare x adj O-ring

1шт.

33

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

34

A167610

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-28

1шт.

35

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight

1шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

37

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

38

492-11038

LOCK WASHER,3/8"

6шт.

39

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

40

L123607

BRACKET

- filter mounting

1шт.

41

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.
