Запчасти Case W14C (1-12) - PICTORIAL INDEX, BRAKE SYSTEM (00) - PICTORIAL INDEX

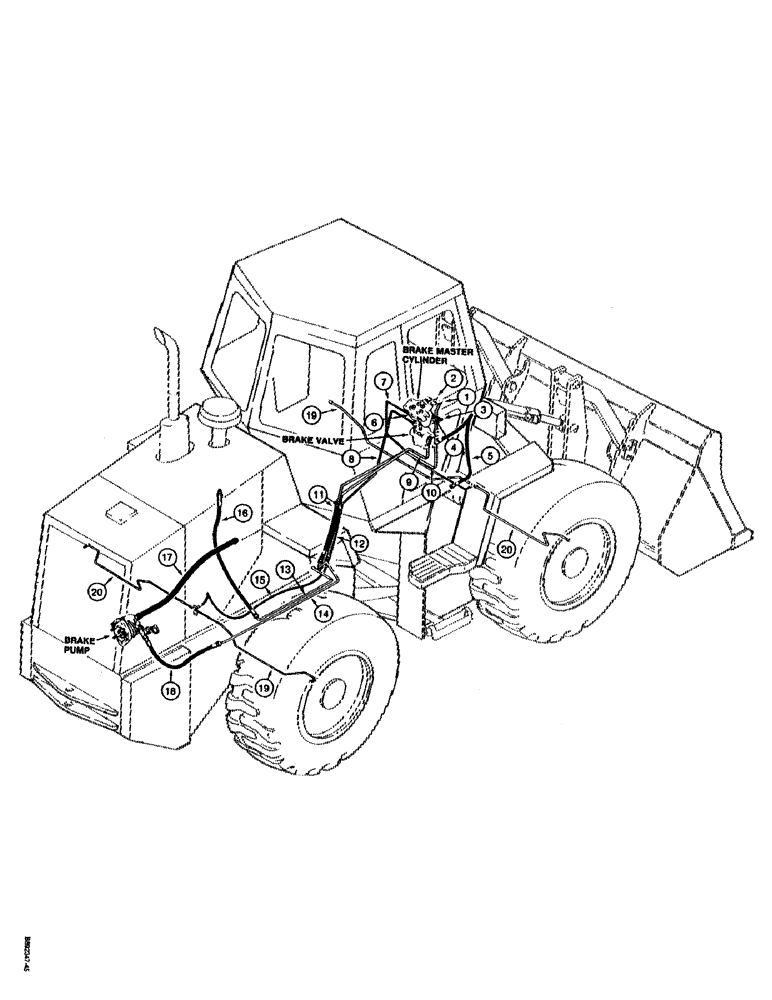

Схема запчастей Case W14C - (1-12) - PICTORIAL INDEX, BRAKE SYSTEM (00) - PICTORIAL INDEX

Артикул

Название

Примечание

Количество

1

Pressure tube at right-hand port of master cylinder, Page 7-9

1шт.

2

Return tube at left-hand port of master cylinder, Page 7-9

1шт.

3

Lower right-hand tube at master cylinder to tee at brake valve, Page 7-7

1шт.

4

Lower left-hand tube at master cylinder to tee at brake valve, Page 7-7

1шт.

5

Hose from brake valve to boss on loader valve return tube, Page 7-9

1шт.

6

Tee connecting tube, to right-hand port of brake valve, Page 7-7

1шт.

7

Tube at brake valve to front axle tee, Page 7-7

1шт.

8

Tube at brake valve to rear axle hose, Page 7-7

1шт.

9

Lower left-hand return tube at brake valve, Page 7-9

1шт.

10

Lower right-hand pressure tube at brake valve, Page 7-9

1шт.

11

Connecting hoses at lower brake valve tubes to rear tubes, Page 7-9

1шт.

12

Hose at brake valve tube to hose at rear axle, Page 7-7

1шт.

13

Return to tank tube, Page 7-11

1шт.

14

Pressure tube from pump hose, Page 7-11

1шт.

15

Hose at rear axle tee, Page 7-7

1шт.

16

Return to tank hose, Page 7-11

1шт.

17

Tank to pump suction hose, Page 7-11

1шт.

18

Hose at brake pump pressure check port, Page 7-11

1шт.

19

Left-hand front and right-hand rear axle tubes, Page 7-7

1шт.

20

Right-hand front and left-hand rear axle tubes, Page 7-7

1шт.
