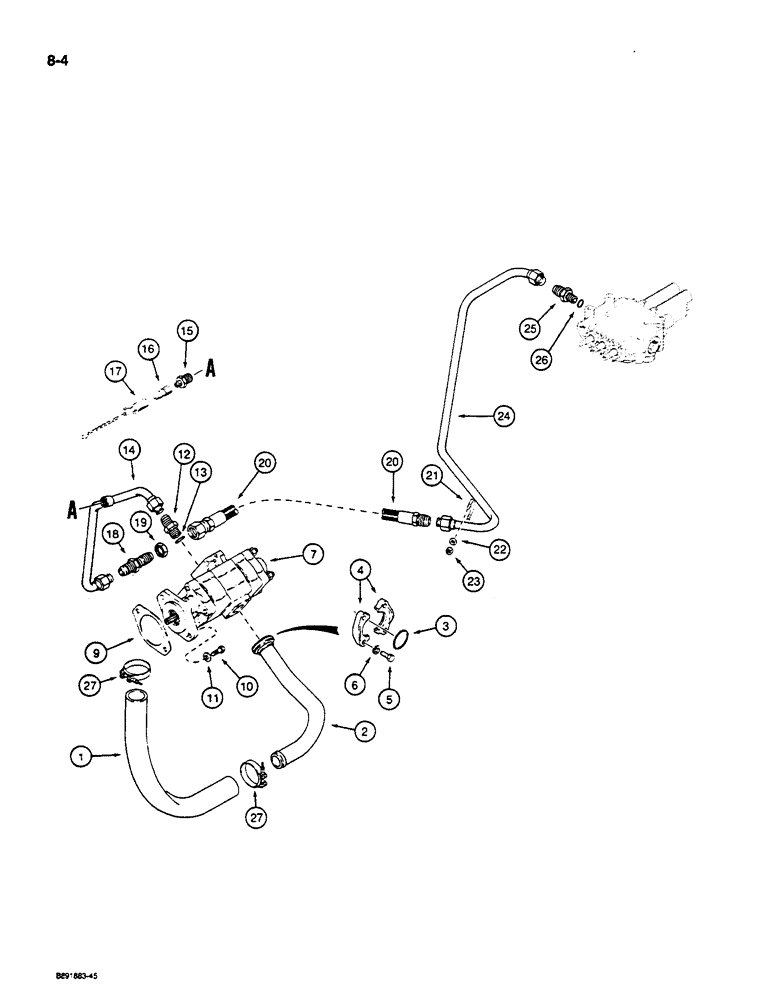

Запчасти Case W14C (8-04) - HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND LOADER CONTROL (08) - HYDRAULICS

1

L123807

HOSE,50.8 mm ID x 673.00 mm, SAE 100R4

Suction 50.8 mm ID x 673.00 mm, SAE 100R4

1шт.

2

L126430

TUBE,50.8 mm OD

- suction to pump, see page 5-15 for tube used with auxiliary steering

1шт.

3

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- tube flange

1шт.

4

A14141

FLANGE

- split, suction, Serial Range: tube-pump

2шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

7

L116685

PUMP, HYDRAULIC

PUMP ASSEMBLY - steering and equipment, parts list Figure 8-14

1шт.

8

B17428

LOCTITE

SEALANT - 50 ml tube, not shown

1шт.

9

J913192

GASKET

- hydraulic pump

1шт.

10

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

11

R24718

WASHER

- special, flat, hardened

2шт.

12

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch thread

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

14

L117404

TUBE,25.4 mm OD

- pump to loader valve

1шт.

15

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 1-1/16 NF flare x 3/4 PT

1шт.

16

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect, test

1шт.

17

H434163

DUST CAP

CAP - dust

1шт.

18

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

CONNECTOR - bulkhead, straight, 1-5/16 NF flare

1шт.

19

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

1шт.

20

L117481

HYDRAULIC HOSE,19.00 mm ID x 902.00 mm, SAE 100R12

HOSE, , Pump to Loader Valve 19.00 mm ID x 902.00 mm, SAE 100R12

1шт.

21

L78947

U-BOLT

- tube mounting

1шт.

22

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

23

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

24

L117433

TUBE ASSY.,25.4 mm OD x 635, 215 mm L

TUBE - to loader valve

1шт.

25

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16 NF flare x 1-1/16 NF

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

27

L126871

CLAMP

- hose, adj, 56.6 mm to 64 mm dia

2шт.
