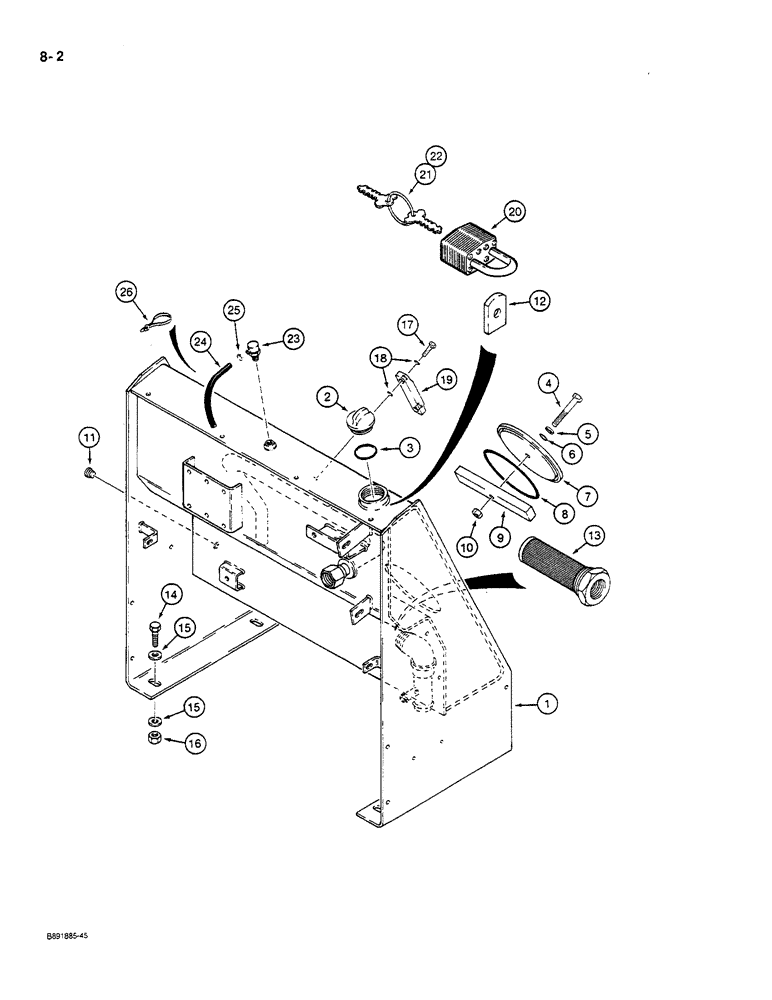

Запчасти Case W14C (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

L127654

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic

1шт.

2

L100349

PLUG

CAP - reservoir

1шт.

3

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - cap

1шт.

4

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

5

L78045

WASHER

- seal

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

SEAL - access cover bolt

1шт.

7

L77124

COVER ASSY

COVER - access, reservoir

1шт.

8

L111687

O-RING,6.975" ID x 0.275" Width

- access cover

1шт.

9

L50741

BAR

- cover hold down

1шт.

10

131-510

LOCK NUT,1/2"-13

NUT - hex, self-locking, 1/2 inch NC

1шт.

11

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - magnetic, square socket head, 3/4 PT

1шт.

12

L79201

BRACKET

TAB - lock

1шт.

13

L117016

STRAINER ASSY.

SCREEN - suction

1шт.

14

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

15

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32, hardened

8шт.

16

25-1010

NUT,5/8"-11, G5

4шт.

L116247

GAUGE

- sight

1шт.

17

N13213

BOLT

BOLT - special, sight gauge

2шт.

18

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- seal, sight gauge

4шт.

19

NSS

NOT SOLD SEPARAT

BODY - sight gauge

1шт.

20

D93753

PADLOCK

- includes keys, if used

1шт.

21

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

22

R29555

KEY

- for Master padlock only, if used

2шт.

23

L127658

VENT

- reservoir

1шт.

24

L76635

HOSE,0.38" ID x 72.00", SAE 30R2 Type 1

0.38" ID x 72.00", SAE 30R2, Type I, Vent

1шт.

25

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
