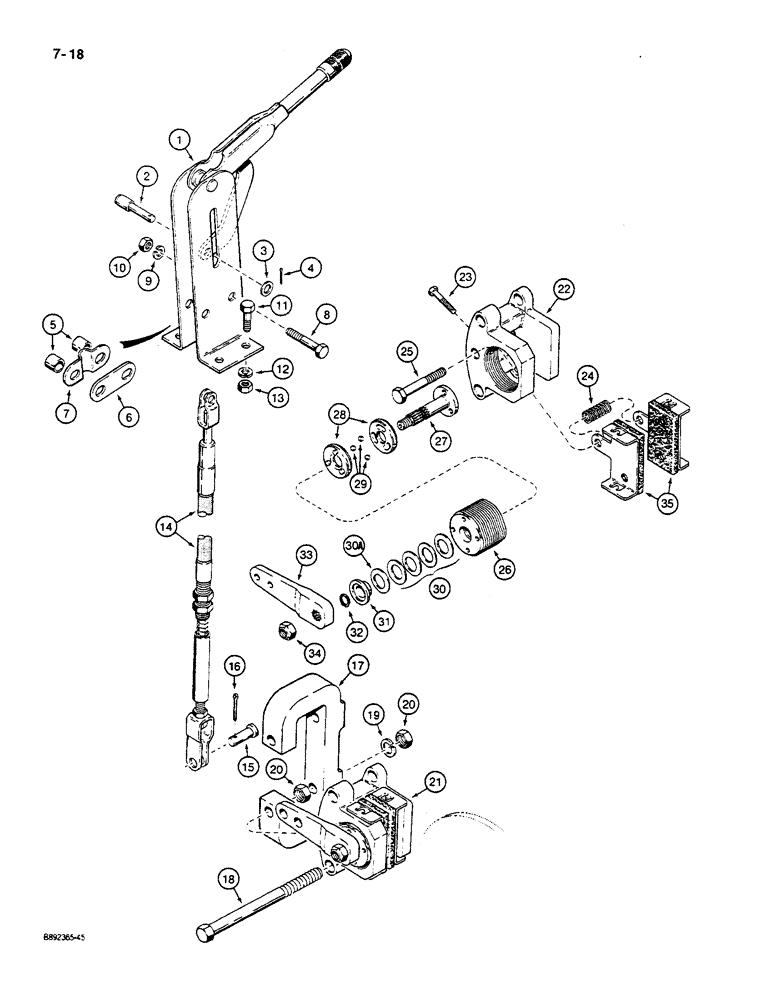

Запчасти Case W14C (7-18) - PARKING BRAKE LEVER AND LINKAGE (07) - BRAKES

L127578

LEVER ASSY.

LEVER ASSEMBLY - parking brake, see Figure 4-16, item 34, for

1шт.

parking brake switch

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER - parking brake

1шт.

2

S301030

PIN

- clevis, lever to brake cable

1шт.

3

195-103

WASHER,5/16"

- flat, 3/8 x 7/8 x 5/64inch

1шт.

4

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

5

S301028

SPACER

- clamp

2шт.

6

S301029

LINK

SPACER - plate

1шт.

7

A55980

CLAMP

- parking brake cable

1шт.

8

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

14

L127577

CABLE

- parking brake

1шт.

15

141-52

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 3/4 inch

1шт.

16

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

1шт.

17

L127591

BRACKET

- mechanical brake mounting, at axle

1шт.

18

113-2463

BOLT,Hex, 1/2" - 13 x 6", Gr 8

- hex, 1/2 NC x 6 inch

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

21

L127457

BRAKE ASSY.

BRAKE ASSEMBLY - mechanical, at axle

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING - brake

1шт.

23

S301034

BOLT

- special

1шт.

24

S108914

SPRING

- detent

1шт.

25

S301033

BOLT

- special

1шт.

S300939

KIT

- piston and module

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - brake

1шт.

27

NSS

NOT SOLD SEPARAT

PISTON - brake

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - cam

2шт.

29

NSS

NOT SOLD SEPARAT

BALL - steel

3шт.

30

NSS

NOT SOLD SEPARAT

SPRING - Belleville

4шт.

30a

NSS

NOT SOLD SEPARAT

WASHER - seat

1шт.

31

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

32

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

33

NSS

NOT SOLD SEPARAT

LEVER - brake actuating

1шт.

34

NSS

NOT SOLD SEPARAT

NUT - hex

1шт.

S300948

LINING

KIT - lining

1шт.

35

NSS

NOT SOLD SEPARAT

PAD - brake lining

2шт.

S300940

PACKAGE, REPAIR

KIT - repair, cam and ball only

1шт.
