Запчасти Case W14C (7-16) - BRAKE PUMP (07) - BRAKES

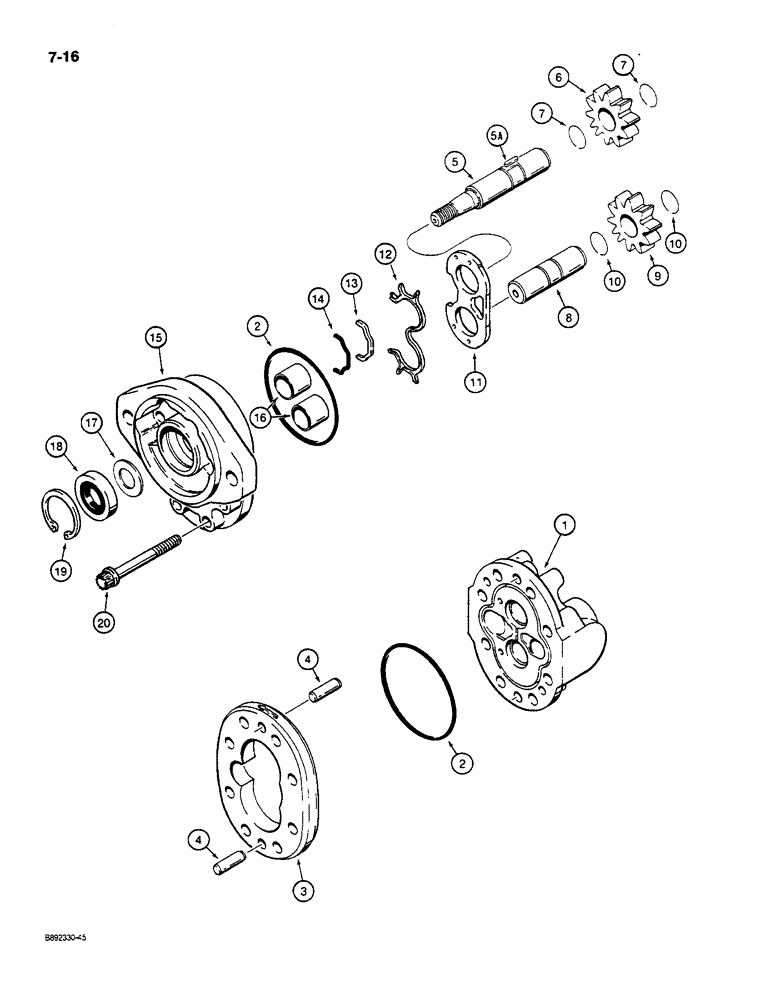

Схема запчастей Case W14C - (7-16) - BRAKE PUMP (07) - BRAKES

Артикул

Название

Примечание

Количество

S515954

PUMP, HYDRAULIC

PUMP ASSEMBLY - brake, for mounting hardware see Figure 7-12, items 31 and 32

1шт.

387411A2R

REMAN-HYD PUMP

W14C, Reman for New P/N S515954

1шт.

387411A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S300370

COVER

- port end

1шт.

2

H758599

O-RING,2.989" ID x 3.129" OD

- cover

2шт.

Part of seal repair kit P/N S300373.

1шт.

N13657

BODY

HOUSING ASSEMBLY - gear

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - gear housing

1шт.

4

71120

VALVE

PIN - dowel

2шт.

S300372

PINION

GEAR ASSEMBLY - drive

1шт.

5

S300379

DRIVE SHAFT

SHAFT - drive

1шт.

5a

S300378

BUCKET TOOTH KEY

KEY - round, shaft

1шт.

6

S300375

PINION

GEAR - shaft

1шт.

7

S300377

RING, SNAP

RING - snap

2шт.

N13658

SPROCKET ASSY.

GEAR ASSEMBLY - idler

1шт.

8

S300376

DRIVE SHAFT

SHAFT - idler

1шт.

9

S300375

PINION

GEAR - shaft

1шт.

10

S300377

RING, SNAP

RING - snap

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

Part of seal repair kit P/N S300373.

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER - seal

1шт.

Part of seal repair kit P/N S300373.

1шт.

13

NSS

NOT SOLD SEPARAT

RING - backup, seal

1шт.

Part of seal repair kit P/N S300373.

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - pump

1шт.

Part of seal repair kit P/N S300373.

1шт.

S300371

COVER

ASSEMBLY - drive end

1шт.

15

NSS

NOT SOLD SEPARAT

COVER - drive end

1шт.

16

S300374

BUSHING

- cover

2шт.

17

N13135

WASHER

- special

1шт.

Part of seal repair kit P/N S300373.

1шт.

18

S300380

SEAL

- shaft

1шт.

Part of seal repair kit P/N S300373.

1шт.

19

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

Part of seal repair kit P/N S300373.

1шт.

20

166-30

12 PT SCREW,Flg, 5/16" - 18 x 2", Gr 8

BOLT - Ferry, 5/16 NC x 5 inch, grade 8

8шт.

S300373

SEAL KIT

KIT - repair, seal, Includes: Ref. 2, 11 - 14 and 17 - 19

1шт.

Выбрано товаров: 37
