Запчасти Case W14C (7-12) - BRAKE MASTER CYLINDER (07) - BRAKES

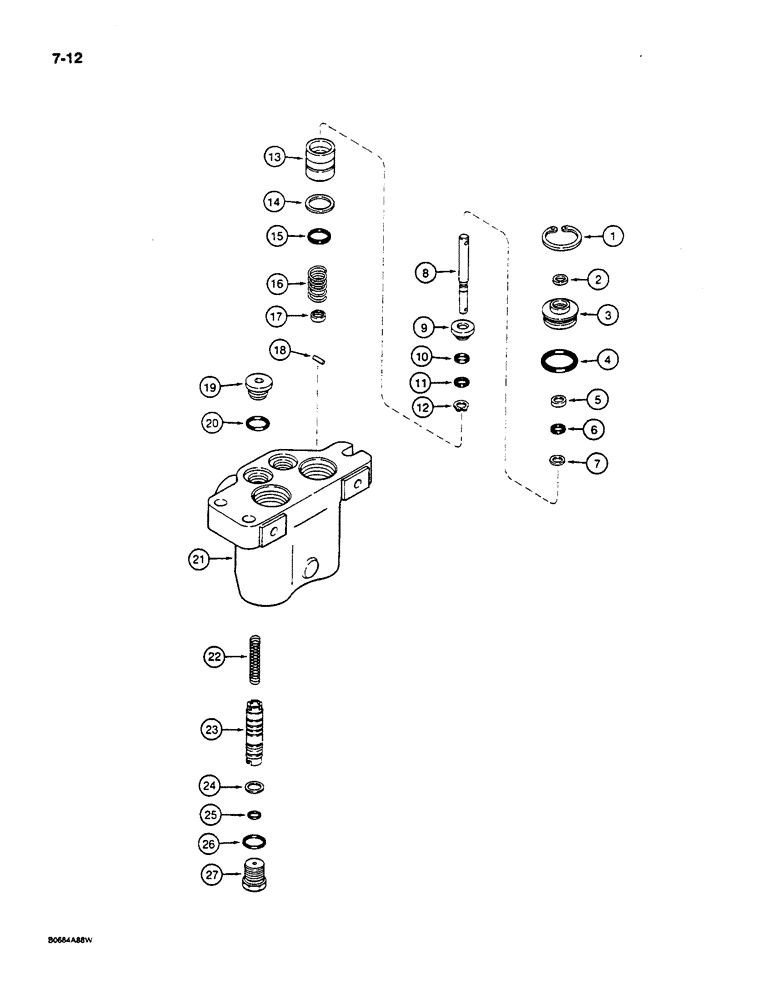

Схема запчастей Case W14C - (7-12) - BRAKE MASTER CYLINDER (07) - BRAKES

Артикул

Название

Примечание

Количество

G105024

VALVE

CYLINDER ASSEMBLY - brake master

1шт.

Ref: G105024 Cylinder Assy - Per ECN S9226-01 and C920216 (680L,780D,W14C) will switch to master cylinder assy P/N 108439A1 released on ECN C920216. G105024 will be retained for use on Ag machines.

1шт.

1

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, , piston stop 1.375", Int, #137

2шт.

G101063

STOP

ASSEMBLY - master cylinder

2шт.

2

G101066

SEAL,9.52mm ID x 14.45mm OD x 2.74mm Thk

- brake

1шт.

3

NSS

NOT SOLD SEPARAT

STOP - piston

1шт.

4

G106482

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

- piston stop

1шт.

5

G101070

RING

- backup

1шт.

6

355967R1

O-RING,0.364" ID x 0.003" Width

- piston stop

1шт.

7

G101065

SEAL RETAINER

RETAINER - seal

1шт.

8

G101059

PIN,9.53mm OD x 110.62mm L

- piston

2шт.

9

G101060

WASHER

SEAL - rod

2шт.

10

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- seal

2шт.

11

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- seal washer

2шт.

12

G10659

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

2шт.

G101062

PISTON

ASSEMBLY - master cylinder

2шт.

13

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

14

G101302

RING

SEAL - ring, piston

1шт.

15

364840R1

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

- piston

1шт.

16

G101303

SPRING

- piston

2шт.

17

G101067

RETAINER

- spring

2шт.

18

G101304

PIN

- retainer

2шт.

19

71100209

PLUG,Hex Soc, 3/4"-16 ORB

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

22

A59950

SPRING

- booster spool

2шт.

G102283

SPOOL

ASSEMBLY - booster

2шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - booster

1шт.

24

A59951

RING

- backup

1шт.

25

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Booster spool

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

27

A59948

PLUG

- reducer

2шт.

Выбрано товаров: 32
