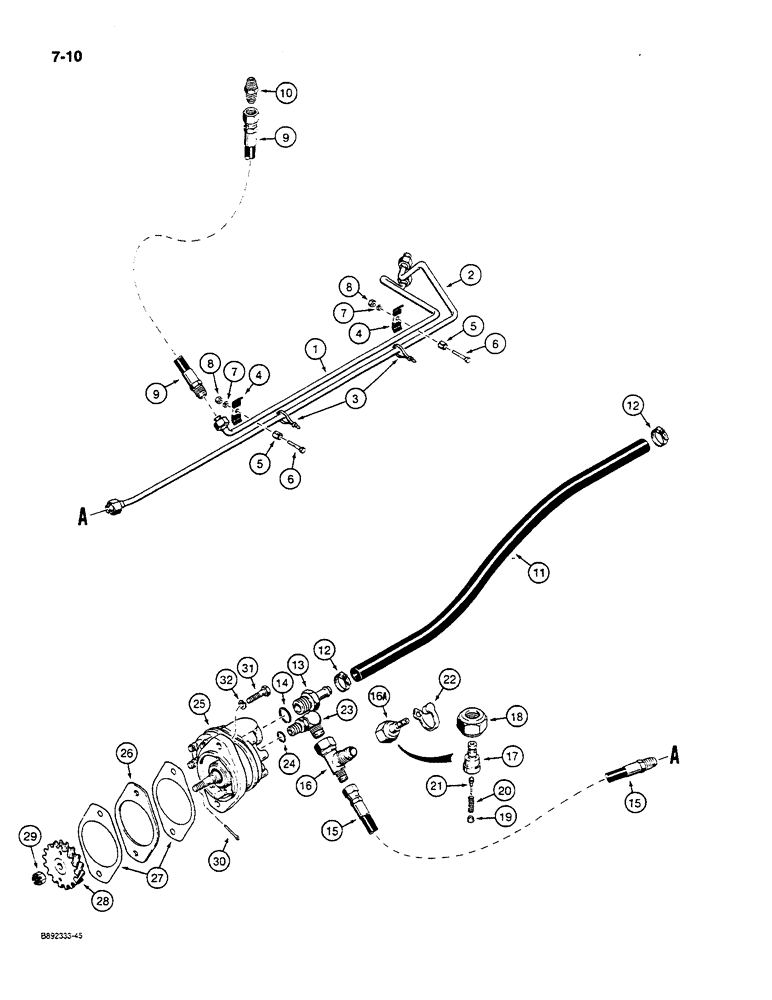

Запчасти Case W14C (7-10) - BRAKE SYSTEM, SUPPLY AND RETURN LINES AT BRAKE PUMP (07) - BRAKES

1

L127526

TUBE,12.7 mm OD

- return

1шт.

2

L127524

TUBE,12.7 mm OD

- pressure, from pump hose

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

4

R25528

CLAMP

-, Serial Range: tubes-chassis

2шт.

5

D76208

SPACER

- tube clamp

2шт.

6

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

L127627

HOSE

- 686 mm long, Serial Range: return-tank

1шт.

10

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 3/4-16 flare x 1/2 inch PT

1шт.

11

L127625

HOSE,19 mm ID x 838.00 mm, SAE 100R3

Suction 19 mm ID x 838.00 mm, SAE 100R3

1шт.

12

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

- adj. #16, 0.81/1.50 Type F Worm

2шт.

13

217-393

FITTING,3/4" Hose Barb x 1-5/16" - 12 Male ORB

ADAPTER - straight, 3/4 stem end x 1-5/16-12 inch O-ring boss

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

15

L127626

HOSE ASSY.

HOSE - 533 mm long, to brake pump pressure check port

1шт.

16

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

- 1-1/16-12 flare branch x swivel x 3/4-16 inch flare

1шт.

16a

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING Assy - quick disconnect

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - coupling

1шт.

18

129-132

NUT,1 1/4"-12, G5

1шт.

19

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - coupling

1шт.

21

NSS

NOT SOLD SEPARAT

POPPET - coupling

1шт.

22

H434163

DUST CAP

CAP - dust, coupling

1шт.

23

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adj, 1-1/16-12 flare x 7/8-14 inch O-ring

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

S515954

PUMP, HYDRAULIC

PUMP ASSEMBLY - brake, parts list Figure 7-16

1шт.

387411A2R

REMAN-HYD PUMP

W14C, Reman for New P/N S515954

1шт.

387411A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

26

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

SHIM - pump gasket

1шт.

27

A77441

GASKET

- pump

2шт.

28

J905606

PINION

GEAR - pump drive shaft

1шт.

29

25-138

SLOTTED NUT,1/2"-20, G5

NUT - hex, slotted, 1/2 inch NF

1шт.

30

132-321

COTTER PIN,3/32" x 1"

PIN, SPLIT (COTTER), 3/32" x 1"

1шт.

31

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 35 mm

2шт.

32

892-1112

LOCK WASHER,M12

WASHER - lock, 12 mm

2шт.
