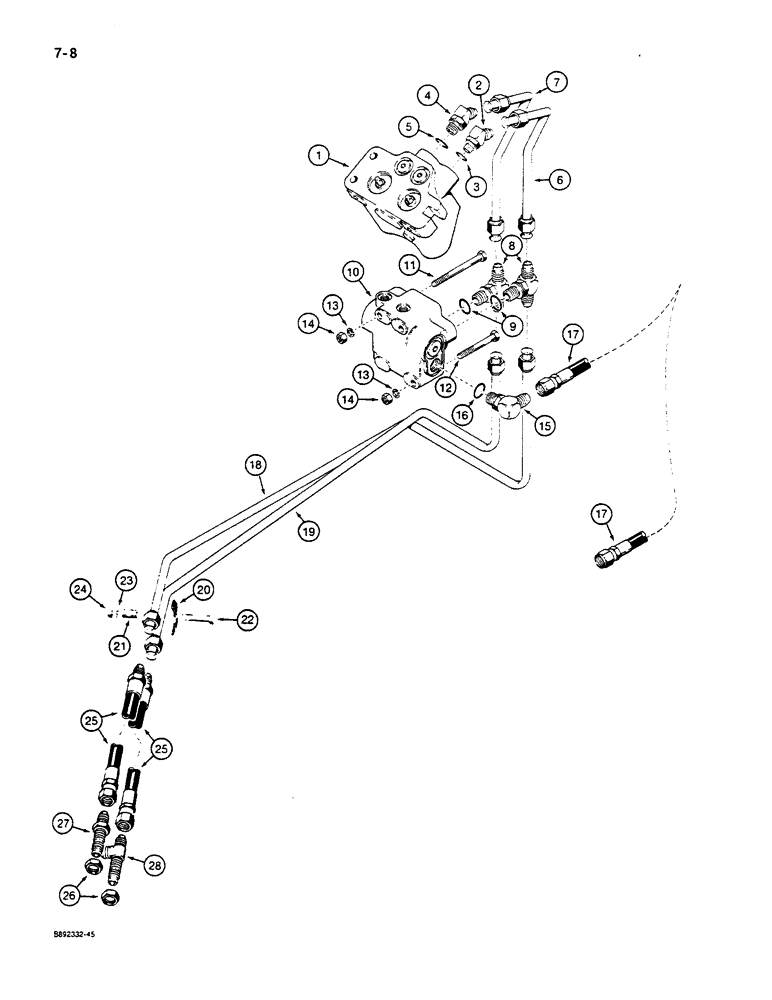

Запчасти Case W14C (7-08) - BRAKE SYSTEM, AT MASTER CYLINDER AND BRAKE VALVE (07) - BRAKES

1

G105024

VALVE

CYLINDER ASSEMBLY - brake master, parts list Figure 7-12

1шт.

See Figure 7-12 note about new master cylinder #

1шт.

2

218-5529

ELBOW,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

- 45 degree, adj, 3/4-16 flare x 9/16-18 inch O-ring boss

1шт.

master cylinder upper right-hand port

1шт.

4

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, adj, 3/4-16 inch flare x O-ring boss

1шт.

master cylinder upper left-hand port

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

L127516

TUBE,12.7 mm OD

- pressure, right-hand tube to brake valve

1шт.

7

L127518

TUBE,12.7 mm OD

- return, left-hand tube to brake valve

1шт.

8

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch adj O-ring boss branch x flare

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

G107891

VALVE

ASSEMBLY - brake, parts list Figure 7-14

1шт.

11

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

2шт.

12

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

1шт.

13

492-11038

LOCK WASHER,3/8"

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.

15

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

L127630

HOSE

- 592 mm long, brake valve to boss on loader valve return

1шт.

tube

1шт.

18

L127520

TUBE,12.7 mm OD

- pressure, from right-hand port of brake valve

1шт.

19

L127522

TUBE,12.7 mm OD

- return, from left-hand port of brake valve

1шт.

20

R25528

CLAMP

- tube

1шт.

21

D76208

SPACER

- tube clamp

1шт.

22

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

425-106

NUT,3/8"-16, Cl 5

1шт.

25

L127632

HOSE

- 537 mm long, at brake valve tubes

2шт.

26

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

27

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - bulkhead, 3/4-16 inch flare

1шт.

28

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

- bulkhead, 3/4-16 inch flare, attaches to hose at

1шт.

transmission clutch cutout solenoid valve, see Figure 6-8

1шт.

transmission clutch cutout solenoid valve, see page 6-9

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
