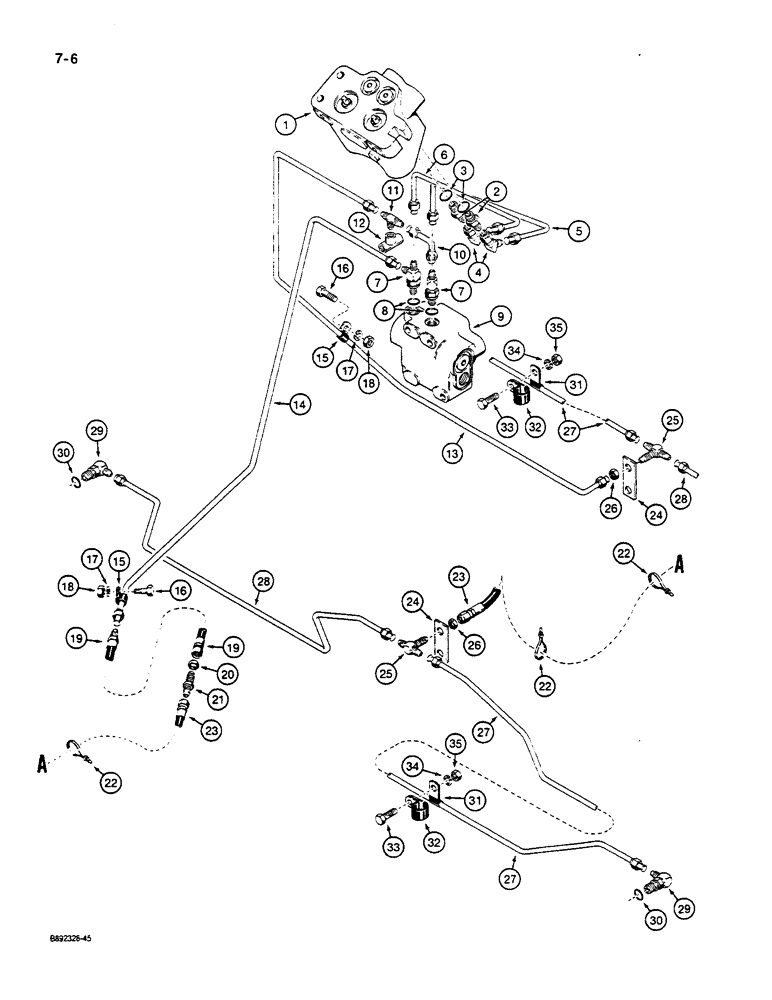

Запчасти Case W14C (7-06) - BRAKE SYSTEM, FRONT AND REAR AXLES, FROM MASTER CYLINDER AND BRAKE VALVE (07) - BRAKES

1

G105024

VALVE

CYLINDER ASSEMBLY - brake master, parts list Figure 7-12

1шт.

See Figure 7-12 note about new master cylinder #

1шт.

2

218-5088

HYD CONNECTOR,7/16" - 20 Male JIC x 1/2" - 20 Male ORB

ADAPTER - straight, 7/16-20 flare x 1/2-20 inch O-ring boss

1шт.

at brake master cylinder

2шт.

3

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

4

218-5170

ELBOW,45 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Female JIC

2шт.

5

L127506

TUBE,6.35 mm OD

- lower right-hand tube at master cylinder to tee at

1шт.

brake valve

1шт.

6

L127508

TUBE,6.35 mm OD

- lower left-hand tube at master cylinder to tee at

1шт.

brake valve

1шт.

7

218-5289

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 7/16-20 flare branch x flare x adj O-ring, at brake

1шт.

valve

2шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

9

G107891

VALVE

ASSEMBLY - brake, parts list Figure 7-14

1шт.

10

L127510

TUBE,6.35 mm OD x 72, 30 mm L

- tee to tee, front axle

1шт.

11

218-551

TEE,7/16"-20, 37 Degree x 1/8"-27, NPTF Br

- 1/8 PT branch x 7/16-20 inch flare, front axle

1шт.

12

217-1160

TEE,1/8"-27 Female

- female, 1/8 inch PT, see page 4-21 for attaching

1шт.

pressure senders, items

1шт.

13

L127514

TUBE,6.35 mm OD

- brake valve to front axle

1шт.

14

L127512

TUBE,6.35 mm OD

- brake valve to rear axle

1шт.

15

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- tube

2шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

L127633

HOSE

- 536 mm long, brake valve tube to hose at rear axle

1шт.

20

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - hex, self-locking bulkhead, 7/16-20 inch NF

1шт.

21

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - bulkhead, 7/16-20 inch flare, at hose to rear axle

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

23

L127631

HOSE

- 1710 mm long, at rear axle

1шт.

24

L127558

BRACKET

- tee mounting at front and rear axles

2шт.

25

218-802

TEE,7/16"-20, 37 Degree, Blkhd

- bulkhead, 7/16-20 inch flare bulkhead branch x flare

1шт.

at front and rear axles

2шт.

26

218-1252

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - hex, self-locking bulkhead, 7/16-20 inch NF

2шт.

27

L127563

TUBE,6.35 mm OD

- left-hand front and right-hand rear

2шт.

28

L127560

TUBE,6.35 mm OD

- right-hand front and left-hand rear

2шт.

29

218-5283

ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

- 90 degree, adj, 7/16-20 flare x 9/16-18 inch O-ring

4шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- 1/4 inch P-type, tube to axle

4шт.

32

L127711

CLAMP,3/4", 3/8" Bolt

- 3/4 inch P-type, tube to axle

4шт.

33

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

34

492-11038

LOCK WASHER,3/8"

4шт.

35

425-106

NUT,3/8"-16, Cl 5

4шт.
