Запчасти Case W14C (7-04) - BRAKE PEDAL AND BRAKE MASTER CYLINDER MOUNTING (07) - BRAKES

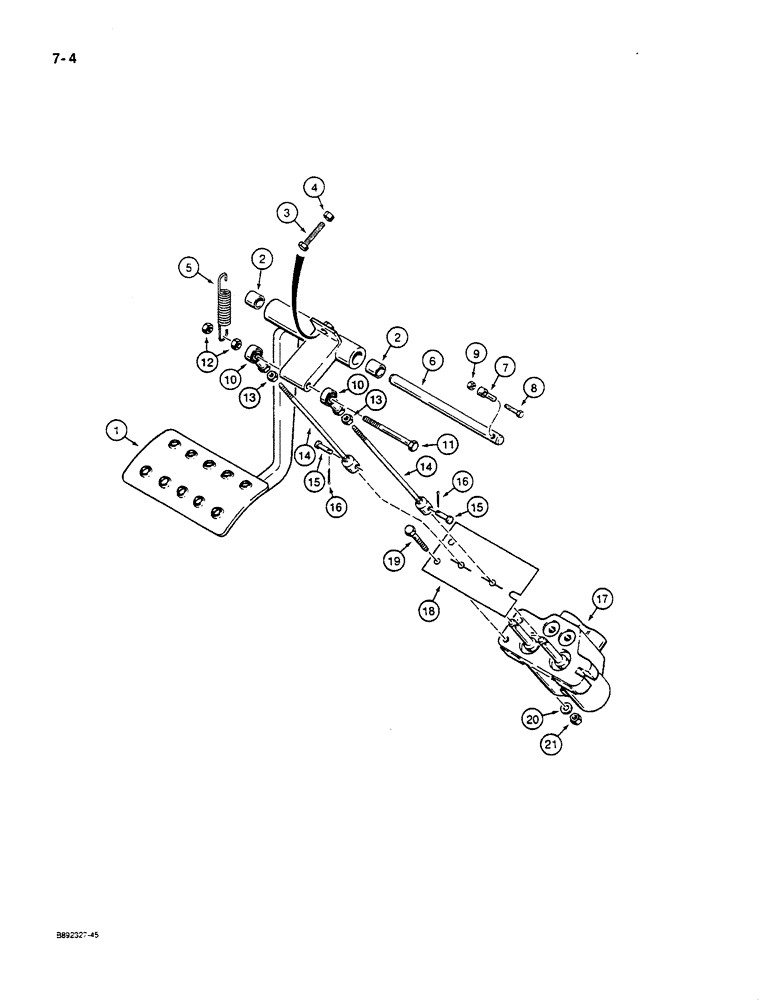

Схема запчастей Case W14C - (7-04) - BRAKE PEDAL AND BRAKE MASTER CYLINDER MOUNTING (07) - BRAKES

Артикул

Название

Примечание

Количество

1

L129662

PEDAL

- brake (replaces L127545)

1шт.

Ref: #1 Per ECN S9026-30 this pedal will sub to a new P/N L129662 which has a ear length increased by 1/2". The sub also includes (2) pcs of a new brake rod P/N L129661 which is 1/2" longer than Ref. # 14.

1шт.

Ref: #1 & #14 Replaced to increase length by 1/2" see comment above

1шт.

2

L127668

BUSHING

- 5/8 ID x 7/8 OD x 3/4 inch long

2шт.

3

113-129

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5, Full Thd

1шт.

4

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

5

A36199

SPRING

- pedal return

1шт.

6

L127550

BAR

PIN - pedal pivot

1шт.

7

213-22

EYE

RETAINER - pedal

1шт.

9

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4 inch NC

1шт.

10

A32398

BALL JOINT

LINK - eye, female, 3/8 inch

2шт.

11

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

12

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

2шт.

13

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

2шт.

14

L127541

ROD

- brake

2шт.

Ref: #1 & #14 Replaced to increase length by 1/2" see comment under ref #1

1шт.

15

A67313

PIN

- clevis, brake rod to master cylinder

2шт.

16

132-329

COTTER PIN,1/16" x 3/4"

1/16" x 3/4"

2шт.

17

G105024

VALVE

CYLINDER ASSEMBLY - brake master, parts list Figure 7-12

1шт.

Ref: #17 Ieakage occasionally occurs when using o-ring type fitting on master cylinder, the brake valve fitting port was revised to improve seat on o-ring. This change caused a top level P/N change of the master cylinder used on W14C Wheel Loader, 680 & 780 Loader Backhoes. When ordering a complete Master-Cylinder for these units order P/N 108439A1 not the G105024. (no SUB) per ECN S9226-01

1шт.

18

A163161

GASKET

- brake master cylinder, Serial Range: attaches-firewall

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

3шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

21

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

3шт.

8

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Выбрано товаров: 25
