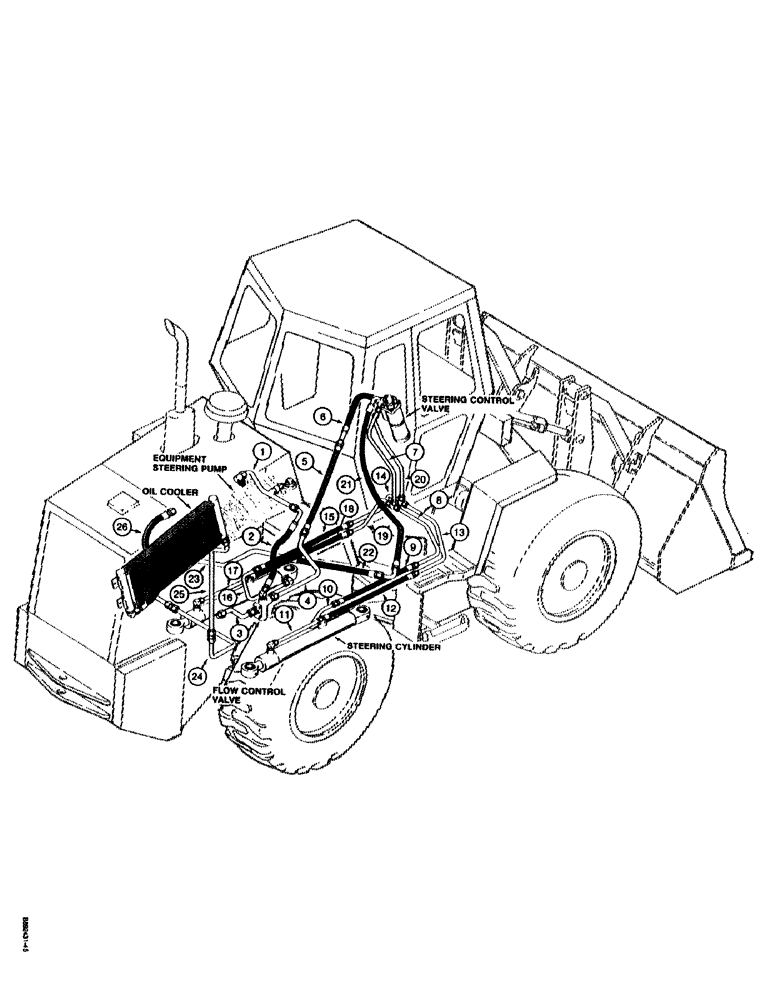

Запчасти Case W14C (1-10) - PICTORIAL INDEX, STEERING AND COOLING HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Steering supply tube, from steering/equipment pump, Page 5-7

1шт.

2

Supply hose from pump to flow control valve, Page 5-7

1шт.

3

Return tube at flow control valve to filter, Page 5-7

1шт.

4

Supply tube, flow control valve to steering valve, Page 5-7

1шт.

5

Supply hose, from tube at flow control valve to hose at steering valve, Page 5-7

1шт.

6

Supply hose, to lower front port of steering valve, Page 5-7

1шт.

7

Tube, from upper rear port on steering valve to cylinders, Page 5-9

1шт.

8

Rear right-hand steering tube, from tee to closed end of cylinder, Page 5-9

1шт.

9

Hose, to tube at closed end of right-hand cylinder, Page 5-9

1шт.

10

Tube, at closed end of right-hand cylinder, Page 5-9

1шт.

11

Tube, at rod end of right-hand cylinder, Page 5-9

1шт.

12

Hose, from tube at rod end of right-hand cylinder to front tube, Page 5-9

1шт.

13

Front right-hand steering tube, from rod end of cylinder to tee, Page 5-9

1шт.

14

Front left-hand steering tube, from tee to closed end of cylinder, Page 5-9

1шт.

15

Hose, to tube at closed end of left-hand cylinder, Page 5-9

1шт.

16

Tube, at closed end of left-hand cylinder, Page 5-9

1шт.

17

Tube, at rod end of left-hand cylinder, Page 5-9

1шт.

18

Hose, from tube at rod end of left-hand cylinder to rear left-hand tube, Page 5-9

1шт.

19

Rear left-hand steering tube, from rod end of cylinder to tee, Page 5-9

1шт.

20

Tube, from cylinders to lower rear port on steering valve, Page 5-9

1шт.

21

Return hose, from upper front port of steering valve to cooler, Page 5-11

1шт.

22

Return hose, from hose at steering valve to front lower tube at cooler, Page 5-11

1шт.

23

Front lower return tube to cooler, Page 5-11

1шт.

24

Rear lower return tube to cooler, Page 5-11

1шт.

25

Rear upper return tube at cooler, Page 5-11

1шт.

26

Return hose from cooler to filter to reservoir, Page 5-11

1шт.
