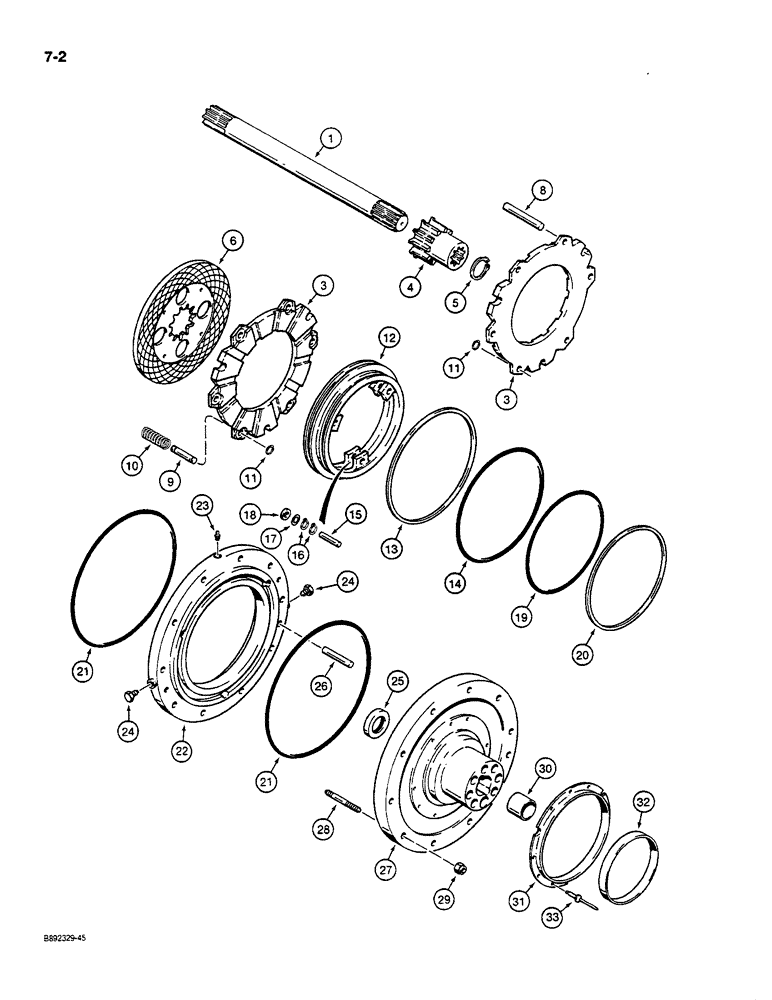

Запчасти Case W14C (7-02) - FRONT AND REAR AXLE, BRAKES (07) - BRAKES

L127439

AXLE, FRONT

AXLE ASSEMBLY - front, complete, Carraro No. 125822, parts

1шт.

list Figures 6-52 through 6-58 and 7-2

1шт.

L127440

AXLE, REAR

AXLE ASSEMBLY - rear, complete, Carraro No. 125823, parts

1шт.

list Figures 6-52 through 6-58 and 7-02

1шт.

L128115

AXLE

ASSEMBLY - rear, no-spin differential, parts list

1шт.

Figures 6-52 through 6-58 and 7-02

1шт.

1

D143011

SHAFT

- half

2шт.

3

E135796

PLATE ASSY.

PLATE - pressure

4шт.

4

D143061

RING, COUPLING

SLEEVE - splined

2шт.

5

D143060

CIRCLIP

RING - retaining

2шт.

6

D143058

DISC

- brake, rotating

2шт.

8

D143062

DOWEL

PIN - dowel

6шт.

9

D144107

PIN

- retaining

12шт.

10

D143064

SPRING

- detent

12шт.

11

D144106

RING

- retaining

24шт.

12

D143056

PISTON

- brake

2шт.

13

E135813

RING

- backup (replaces D143055)

2шт.

14

D143054

GASKET

SEAL - ring, 252 mm ID

2шт.

15

D143050

PIN

- piston retaining

6шт.

16

D143051

CIRCLIP

RING - retaining

12шт.

17

D143052

SHIM,0.10mm Thk

1шт.

18

D143053

SPACER

- pin

6шт.

19

D143076

OIL SEAL

SEAL - ring, 230 mm ID

2шт.

20

E135811

PLASTIC RING

RING - backup (replaces D143075)

2шт.

21

D143074

O-RING,11.984" ID x 12.262" OD

- brake cylinder

4шт.

22

D143078

CYLINDER

- brake

2шт.

23

D143065

PLUG

- bleed

2шт.

24

D143066

PLUG

- drain

4шт.

25

D143072

SEAL

- oil

2шт.

26

D143073

DOWEL

PIN - dowel

2шт.

27

D143068

FLANGE

SHAFT - wheel

2шт.

28

D143067

STUD

- wheel to brake cylinder

20шт.

29

K965250

NUT

- stud retaining

20шт.

30

D143071

BUSHING

- wheel shaft

2шт.

31

D143070

SHIELD

RING - wear, outer

2шт.

REF: #31 & 32 Rings- wear inner and outer Per ECN S9104-28 Carraro modified the three axles listed on this page will effect the two wear rings in # 31 & 32. These rings were replaced by a Chssette oil seal, case number 1349265C1.

1шт.

32

K395138

WEAR RING

RING - wear, inner

2шт.

REF: #31 & 32 Rings- wear inner and outer Per ECN S9104-28 Carraro modified the three axles listed on this page will effect the two wear rings in # 31 & 32. These rings were replaced by a Chssette oil seal, case number 1349265C1.

1шт.

33

D143069

RIVET

- ring retaining

12шт.
