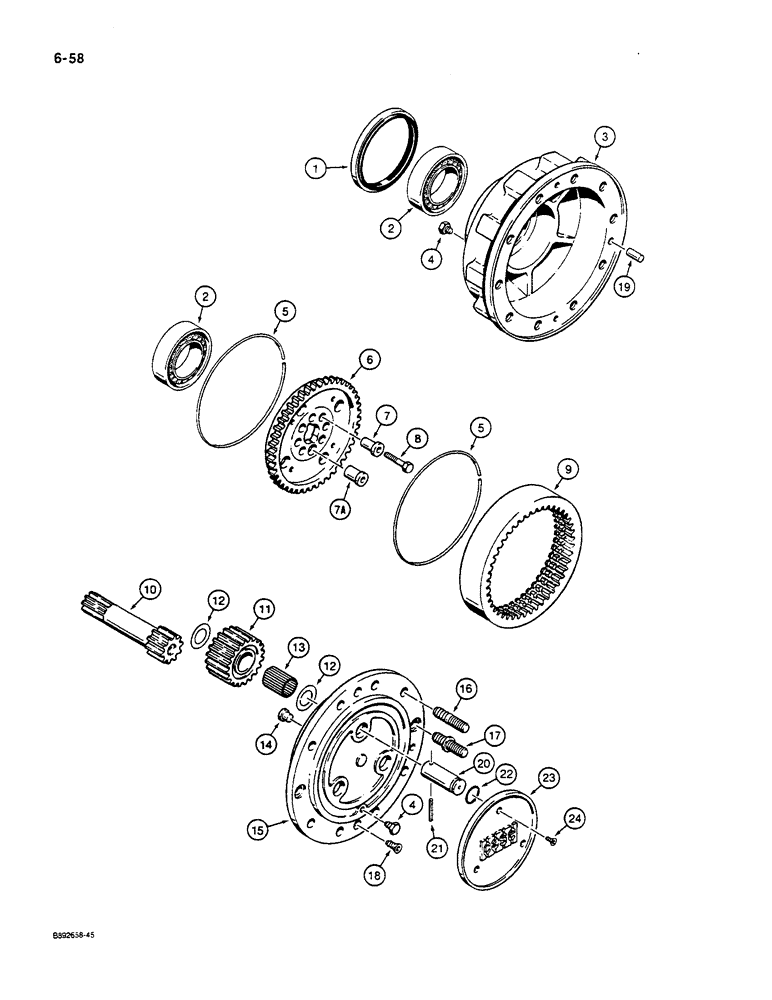

Запчасти Case W14C (6-58) - FRONT AND REAR AXLE, PLANETARY (06) - POWER TRAIN

L127439

AXLE, FRONT

AXLE ASSEMBLY - front, complete, Carraro No. 125822, parts list Figures 6-52 through 6-58 and 7-02

1шт.

L127440

AXLE, REAR

AXLE ASSEMBLY - rear, complete, Carraro No. 125823, parts list Figures 6-52 through 6-58 and 7-02

1шт.

L128115

AXLE

ASSEMBLY - rear, no-spin differential, parts list Figures 6-52 through 6-58 and 7-02

1шт.

1

K395102

OIL SEAL

- oil, hub, L127439 and L127440 axles

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

3

D142978

HUB

- wheel attaching

2шт.

4

A156873

PLUG, DRAIN,M22 x 1.5

4шт.

5

D142979

RING, SNAP

RING - lock

4шт.

6

D142980

CARRIER

HUB - ring gear

2шт.

7

K395105

RING

BUSHING - 20 mm OD, centering

14шт.

7a

K395104

RING

BUSHING - 24 mm OD, centering

2шт.

8

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

16шт.

9

D142981

GEAR WHEEL

GEAR - ring, planetary

2шт.

10

E135789

SHAFT

- pinion

2шт.

11

D142985

SUN GEAR

GEAR - pinion, planetary

6шт.

12

D142984

WASHER

- thrust, pinion gear

12шт.

13

196089A1

NEEDLE BEARING,Needle, 4mm OD x 34.8mm L

BEARING - needle, planetary gear (replaces K260211)

180шт.

14

K395093

HEADED PIN,12mm OD x 15mm L

PIN - thrust

2шт.

15

D142988

CARRIER

COVER - planetary

2шт.

Ref: #15 Replaced by P/N 144659A1 Cover with 6mm holes.

1шт.

Ref: #15 Replaced by P/N E135791 Cover with 4mm holes.

1шт.

Ref # 15, 20, 21 now has part numbers for 6mm as well as 4mm roll pin parts - These parts should be matched to their related mm sizes. See below for P/N changes. W14C should only be serviced with 6mm roll pin parts.

1шт.

16

D142986

STUD,88mm L

- special, without collar

16шт.

17

D142987

STUD

- special, with collar, for recessed bolt holes

4шт.

18

K395029

SCREW

- special, planetary cover

4шт.

19

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

2шт.

20

109643A1

LARGE PIN

SHAFT - pinion gear 6mm hole cover. (replaces D142989)

6шт.

Ref # 15, 20, 21 now has part numbers for 6mm as well as 4mm roll pin parts - These parts should be matched to their related mm sizes. See below for P/N changes. W14C should only be serviced with 6mm roll pin parts.

1шт.

21

K260197

PIN

- split, pinion gear shaft

6шт.

Ref: #21 Replaced by P/N 109642A1 Pin with 6mm O.D. (Free turning inside)

1шт.

Ref: #21 Replaced by P/N 932252R1 Pin with 4mm split roll pin. 31-May-96

1шт.

Ref # 15, 20, 21 now has part numbers for 6mm as well as 4mm roll pin parts - These parts should be matched to their related mm sizes. See below for P/N changes. W14C should only be serviced with 6mm roll pin parts.

1шт.

22

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- pinion gear shaft

6шт.

23

S301074

COVER

PLATE - planetary cover, with CASE logo

2шт.

Ref: #23 The planetary cover plate with the "CASE" logo will be eliminated from all axles. Continue to use for service of machines with the logo.

1шт.

24

K395082

SCREW,M8 x 20mm

- special, planetary cover plate

6шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, planetary cover to hub, not shown

1шт.
