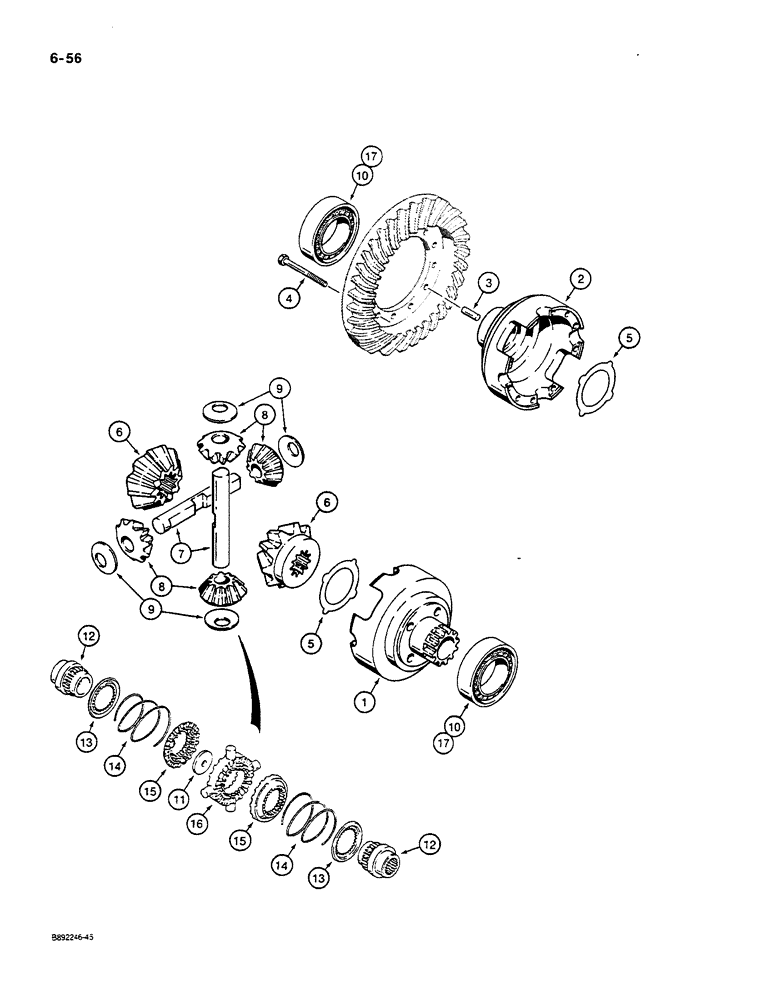

Запчасти Case W14C (6-56) - FRONT AND REAR AXLE, DIFFERENTIAL (06) - POWER TRAIN

L127439

AXLE, FRONT

AXLE ASSEMBLY - front, complete, Carraro No. 125822, parts list Figures 6-52 through 6-58 and 7-02

1шт.

L127440

AXLE, REAR

AXLE ASSEMBLY - rear, complete, Carraro No. 125823, parts list Figures 6-52 through 6-58 and 7-02

1шт.

L128115

AXLE

ASSEMBLY - rear, no-spin differential, parts list Figures 6-52 through 6-58 and 7-02

1шт.

E135783

HOUSING

CASE ASSEMBLY - differential

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - differential, splined end

1шт.

2

NSS

NOT SOLD SEPARAT

CASE - differential

1шт.

3

D143033

DOWEL

PIN - centering, ring gear to differential box

2шт.

4

S300976

BOLT,M12 x 1.5 x 90mm

BOLT - special, ring gear to differential box

10шт.

5

D142972

WASHER

- thrust, models with L127439 front and L127440 rear axles

2шт.

6

D143027

PINION

GEAR - side, differential, models with L127439 front and L127440 rear axles

2шт.

7

D142970

SHAFT

- pinion gear, models with L127439 front and L127440 rear axles

2шт.

8

D142969

SUN GEAR

GEAR - pinion, models with L127439 front and L127440 rear axles

4шт.

9

D142968

WASHER

- thrust, pinion gear, models with L127439 front and L127440 rear axles

4шт.

10

69007

TAPERED BEARING,65mm ID x 100mm OD x 23mm W

- roller, models with L127439 front and L127440 rear axles

2шт.

S301073

DIFFERENTIAL

SPIDER AND GEAR ASSEMBLY - no-spin, models with L128115 rear axles

1шт.

11

S301067

SPACER

- spider, models with L128115 no-spin rear axles

1шт.

12

S301068

GEAR

- side, outer, models with L128115 no-spin rear axles

2шт.

13

S301069

RETAINER

- spring, models with L128115 no-spin rear axles

2шт.

14

S301070

SPRING

- spider, models with L128115 no-spin rear axles

2шт.

15

S301071

CLUTCH

- side, inner, models with L128115 no-spin rear axles

2шт.

16

S301072

SPACER

SPIDER - differential, models with L128115 no-spin rear axles

1шт.

17

S301066

BEARING

- roller, models with L128115 no-spin rear axles

2шт.

Ref: #17 Roller Bearing - Carraro # 027365 is incorrect the correct # is 027367.

1шт.
