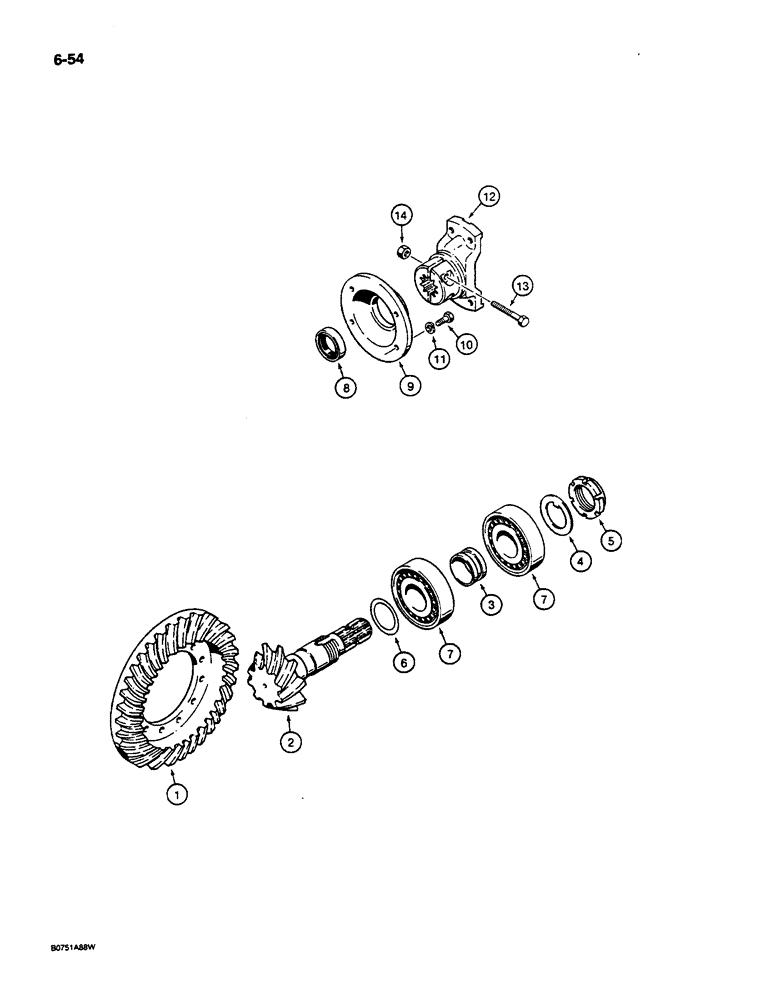

Запчасти Case W14C (6-54) - FRONT AND REAR AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

L127439

AXLE, FRONT

AXLE ASSEMBLY - front, complete, Carraro No. 125822, parts list Figures 6-52 through 6-58 and 7-02

1шт.

L127440

AXLE, REAR

AXLE ASSEMBLY - rear, complete, Carraro No. 125823, parts list Figures 6-52 through 6-58 and 7-02

1шт.

L128115

AXLE

ASSEMBLY - rear, no-spin differential, parts list Figures 6-52 through 6-58 and 7-02

1шт.

D143024

GEAR, BEVEL

GEAR - set, ring and pinion, rear axle

1шт.

E135761

GEAR-SET

GEAR - set, ring and pinion, front axle

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

D142998

SPACER

- bearing

1шт.

4

D146685

WASHER

- special, D143024 gear set

1шт.

4

S300977

WASHER

- special, E135761 gear set

1шт.

5

D143000

NUT

RING - nut, pinion gear

1шт.

6

D142953

SHIM,2.50mm Thk

1шт.

6

D142954

BLOCK

SHIM - 2.60 mm thick

1шт.

6

D142955

SHIM,2.70mm Thk

1шт.

6

D142956

SHIM,2.80mm Thk

1шт.

6

D142957

SHIM,2.90mm Thk

1шт.

6

D142958

SHIM,3.00mm Thk

1шт.

6

D142959

SHIM,3.10mm Thk

1шт.

6

D142960

BLOCK

SHIM - 3.20 mm thick

1шт.

6

D142961

SHIM,3.30mm Thk

1шт.

6

D142962

SHIM,3.40mm Thk

1шт.

7

D142963

BEARING

- roller, pinion gear

2шт.

8

N8895

OIL SEAL

- oil

1шт.

9

D143025

COVER

- differential carrier

1шт.

10

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm

4шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

12

D143026

FLANGE

YOKE - flange

1шт.

13

514-723

BOLT,Hex, M10 x 1.25 x 60mm, Cl 8.8

- hex, 10mm 1.25 x 60 mm.

2шт.

14

K965414

NUT

- hex, self-locking, 10 mm - 1.25, special

2шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, differential carrier cover to carrier, not shown

1шт.
