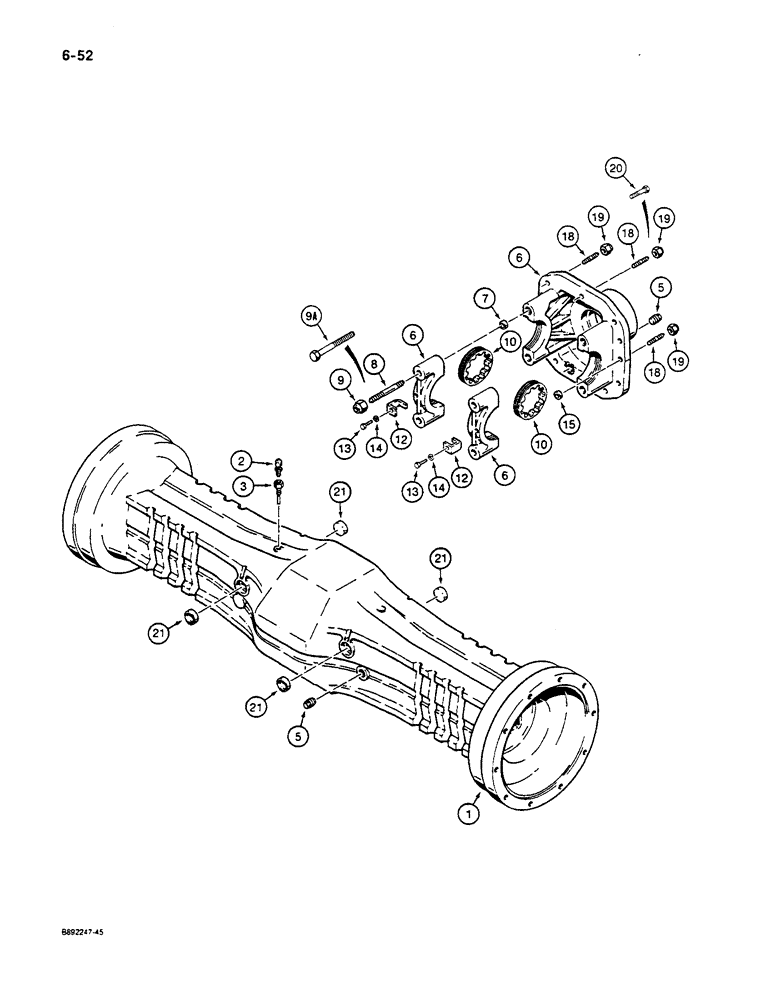

Запчасти Case W14C (6-52) - FRONT AND REAR AXLE, AXLE HOUSING AND CARRIER (06) - POWER TRAIN

L127439

AXLE, FRONT

AXLE ASSEMBLY - front, complete, Carraro No. 125822, parts list Figures 6-54 through 6-58 and 7-02

1шт.

L127440

AXLE, REAR

AXLE ASSEMBLY - rear, complete, Carraro No. 125823, parts list Figures 6-54 through 6-58 and 7-02

1шт.

L128115

AXLE

ASSEMBLY - rear, no-spin differential, parts list Figures 6-54 through 6-58 and 7-02

1шт.

1

D143008

HOUSING

- axle

1шт.

2

K965231

BREATHER

- axle housing

1шт.

3

S302037

ADAPTER

EXTENSION - breather (replaces D142949)

1шт.

5

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

D143017

SUPPORT ASSY.

CARRIER ASSEMBLY - differential

1шт.

6

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

7

K260153

RING

BUSHING - centering, carrier

4шт.

8

D143001

STUD

- carrier, L127439 and L127440 axle

4шт.

9

K260157

NUT

- hex, self-locking, special, L127439 and L127440 axle

4шт.

9a

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT - 12 mm, special, replaces item 8 stud and item 9 nut on models with L128115 no-spin rear axle

4шт.

10

D142973

RING

- lock

2шт.

12

K261869

LOCK

BRACKET - lock

2шт.

13

K261871

SCREW

BOLT - hex head, 6 mm - 1 x 12 mm, special

2шт.

14

K261870

WASHER

- special

2шт.

15

D143018

BUSHING

- carrier stud

2шт.

18

K262139

STUD

- 58 mm long, L127439 and L127440 axle

12шт.

19

905834R1

THIN NUT,M12 x 1.25, Thin

NUT - hex, self-locking, 12 mm-1.25, special, L127439 and L127440 axle

12шт.

20

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT, , Special, L128115, No-spin rear axle Hex Flg, M12 x 33, 12.9

12шт.

21

K956809

PLUG

- axle housing, if used

4шт.

M20704

ADHESIVE

SEALANT - 3 oz (89 ml) of sealant in a tube, carrier to axle housing, not shown

1шт.
