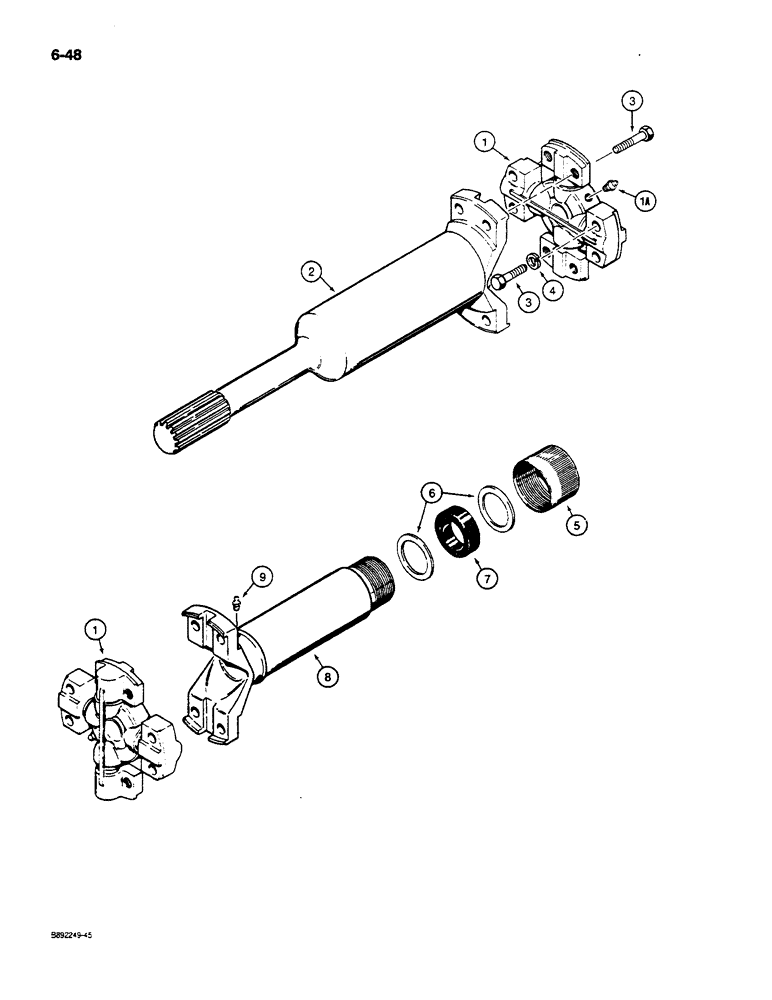

Запчасти Case W14C (6-48) - CENTER DRIVE SHAFT (06) - POWER TRAIN

L127602

SHAFT

ASSEMBLY - drive, center

1шт.

Ref: L127602 Shaft assy. - see notes on page 6-42 about new Rockford Powertrain drive shaft.

1шт.

1

S300904

UNIVERSAL JOINT

JOINT ASSEMBLY - universal, center cross

2шт.

1a

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

2

S300906

TUBE,18.75" L

YOKE - shaft, splined end

1шт.

3

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, grade 8

16шт.

4

492-11038

LOCK WASHER,3/8"

8шт.

5

A19923

CAP

- dust

1шт.

6

D73712

WASHER

- backup, steel

2шт.

7

D73711

FELT SEAL

WASHER - felt

1шт.

8

S300905

FORK

TUBE - yoke

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.
