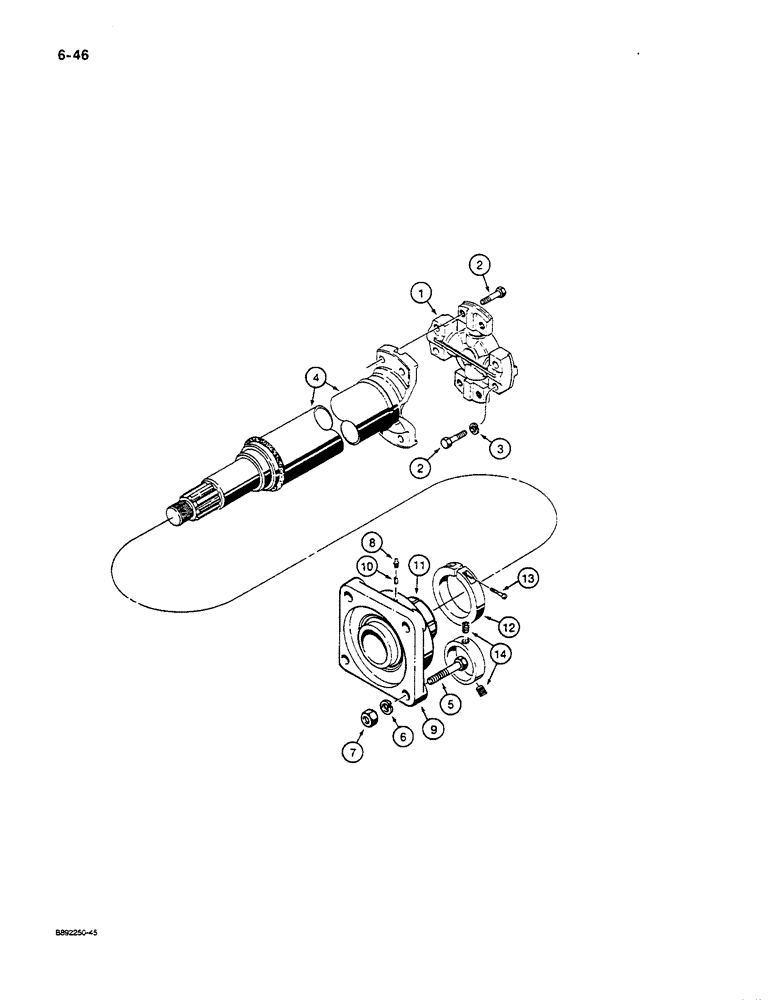

Запчасти Case W14C (6-46) - FRONT AXLE DRIVESHAFT (06) - POWER TRAIN

L127601

SHAFT ASSY.

SHAFT ASSEMBLY - drive, front axle

1шт.

Ref: L127601 Shaft Assy - see notes on Figure 6-42 about the new Rockford Powertrain driveshaft.

1шт.

L36151

KIT

JOINT ASSEMBLY - universal, driveshaft

1шт.

1

NSS

NOT SOLD SEPARAT

JOINT - universal, center cross

1шт.

2

328-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, grade 8

8шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

S300903

TUBE,20.67" L

SHAFT - tube, external spline

1шт.

5

13-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex head, 5/16 NC x 1-3/4 inch, drive shaft support bearing

4шт.

6

92-9

BEARING WASHER,9/16"

Drive shaft support bearing 9/16"

4шт.

7

25-109

NUT,9/16"-12, G5

- hex, 9/16 inch NC, drive shaft support bearing

4шт.

L106070

FLANGED BEARING

BEARING ASSEMBLY - support, front drive shaft, uses set screws, drive shaft support bearing

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long, drive shaft support bearing

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - bearing, drive shaft support

1шт.

10

L33788

AXLE PIN

PIN - lock, drive shaft support bearing

1шт.

L33787

KIT

- repair, bearing and collar, converts from set screws, drive shaft support to collar arrangement

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - seal, center, drive shaft support

1шт.

Original production bearings may have holes for set screws (Ref. 14) instead of slots.

1шт.

12

L33789

COLLAR

- bearing, if used, drive shaft support

1шт.

13

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - hex socket, 1/4 NC x 1inch, if used, drive shaft support

1шт.

14

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

SCREW - set, 3/8 NF x 5/16inch, if used, drive shaft support

2шт.
