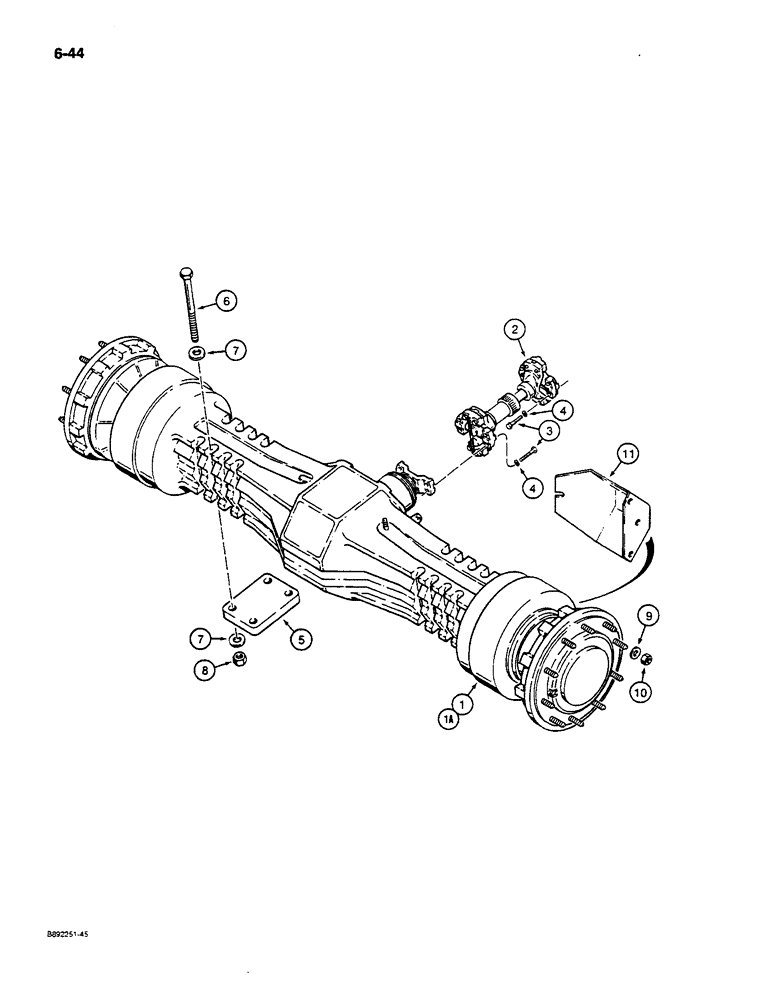

Запчасти Case W14C (6-44) - REAR AXLE MOUNTING AND DRIVE SHAFT (06) - POWER TRAIN

1

L127440

AXLE, REAR

AXLE ASSEMBLY - rear, parts list Figures 6-52 through 6-58 and 7-2

1шт.

1a

L128115

AXLE

ASSEMBLY - rear, no-spin differential, parts list

1шт.

Figuress 6-52 through 6-58 and 7-2

1шт.

2

L127603

SHAFT

ASSEMBLY - drive, rear axle, parts list Figure 6-50 (replaces L127603)

1шт.

3

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, grade 8

16шт.

4

492-11038

LOCK WASHER,3/8"

8шт.

5

L127599

PAD

- rear axle mounting

2шт.

6

28-12192

BOLT,Hex, 3/4" - 16 x 12", Gr 8

- hex, 3/4 NF x 12 inch, grade 8

8шт.

7

L117258

WASHER

- flat, 3/4 inch, hardened

16шт.

8

131-186

LOCK NUT,3/4"-16, GB

NUT - hex, self-locking, 3/4 inch NF

8шт.

9

D138380

WASHER,22.8mm ID x 44.5mm OD x 5.56mm Thk

- flat, hardened, special

20шт.

10

D138492

NUT,M22 X 1.5 - 6 HVY HEX

- hex, special

20шт.

11

L127911

GUARD ASSY.

GUARD - brake tube, uses existing lock nuts from axle brake housing

2шт.
