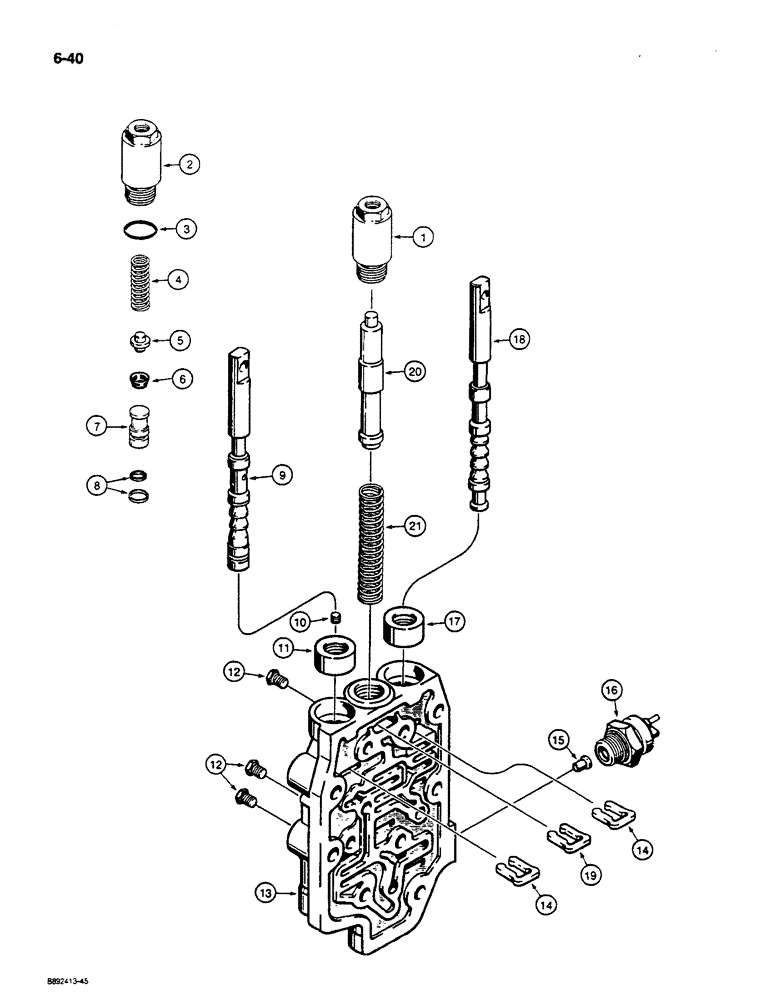

Запчасти Case W14C (6-40) - TRANSMISSION, CONTROL VALVE ASSEMBLY (06) - POWER TRAIN

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figures 6-14 through 6-40

1шт.

S300899

VALVE

ASSEMBLY - transmission control

1шт.

1

N7711

ACTUATOR

ASSEMBLY - hydraulic

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - actuator

1шт.

3

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- 11/16 x 7/8 inch

1шт.

N14401

PIN

KIT - pin and spring, piston balance

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - piston balance

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - spring retaining

1шт.

6

D87210

SEAL

CUP - actuator

1шт.

7

N7712

PISTON

- inching

1шт.

8

D87218

SEAL

- piston

1шт.

S300896

HOUSING ASSY.

HOUSING ASSEMBLY - transmission control valve

1шт.

9

E114395

SPOOL

- range selector

1шт.

10

221-850

PLUG,Hex Soc, 1/16"-27

- hex socket, 1/16 inch PT

1шт.

11

D63387

OIL SEAL,15.88mm ID x 28.7mm OD x 13.87mm Thk

- oil, body

1шт.

12

221-660

PLUG,Hex Hd, 1/16"-27

- hex, 1/16 inch taper PT

3шт.

13

NSS

NOT SOLD SEPARAT

BODY - transmission control valve

1шт.

14

E114397

STOP

- spool

2шт.

15

E114398

PIN

- neutral start switch

1шт.

16

S300424

SWITCH

- neutral start

1шт.

17

D63387

OIL SEAL,15.88mm ID x 28.7mm OD x 13.87mm Thk

- oil, body

1шт.

18

N7205

SPOOL

- control valve, forward and reverse

1шт.

19

E114397

STOP

- spool

1шт.

20

E114401

SPOOL

- clutch cutout

1шт.

21

D87217

SPRING

- control valve

1шт.
