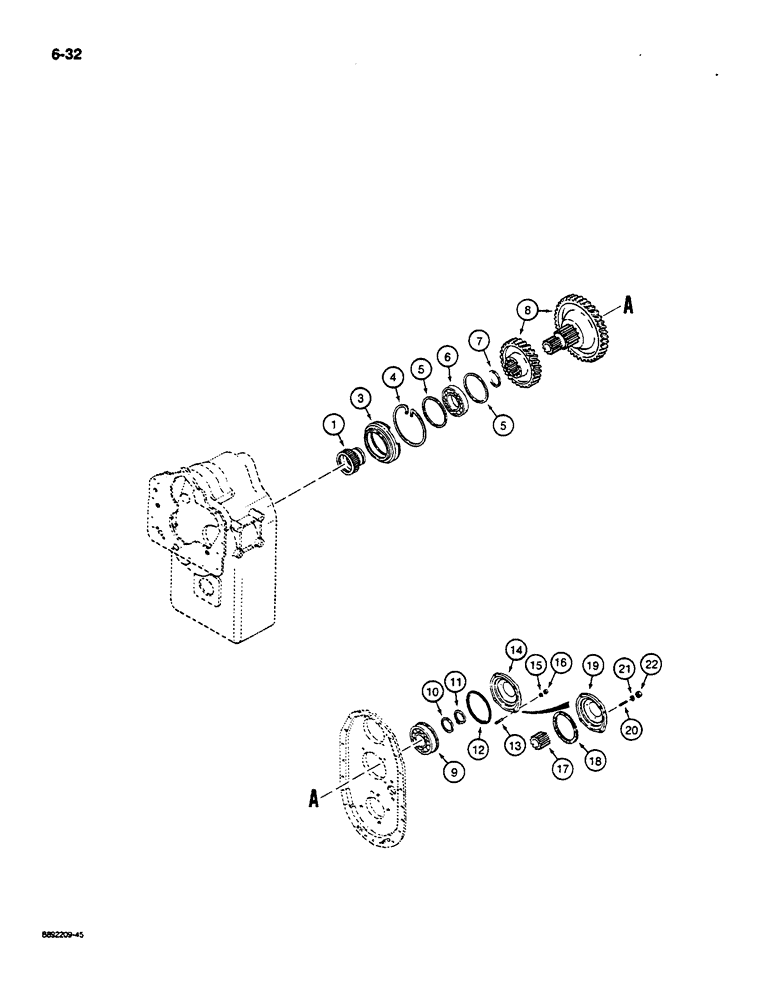

Запчасти Case W14C (6-32) - TRANSMISSION, IDLER GEAR SET (06) - POWER TRAIN

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figures 6-14 through 6-40

1шт.

1

N8832

HUB

- clutch disc hub

1шт.

2

N13129

RING

- oil retaining, forward clutch gear, not shown

1шт.

The oil retaining ring is an internal part of the shaft and it is recommended that the ring should not be removed.

1шт.

3

E114350

BEARING CARRIER

CARRIER - bearing

1шт.

4

E114349

RING, SNAP

RING - snap, bearing carrier

1шт.

5

E114346

O-RING

RING - bearing locating

2шт.

6

E114347

BEARING

- ball, third clutch disc hub

1шт.

7

E114345

RING

- retaining, bearing

1шт.

8

S300875

SHAFT

GEAR - includes shaft, idler, matched set

1шт.

9

S300101

BALL BEARING,55.001 mm ID x 120 mm OD x 29 mm

BEARING - ball, idler shaft

1шт.

10

E114368

WASHER, THRUST

WASHER - special, bearing support

1шт.

11

E114367

CLIP

RING - snap, rear bearing, idler shaft

1шт.

12

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- rear bearing cap or steering pump adapter

1шт.

13

N7209

BEARING CAP

STUD - bearing cap

4шт.

Ref.13 through 16 are replaced with Ref. 17 through 22 on models with auxiliary steering.

1шт.

14

E114365

BEARING CAP

CAP - idler shaft bearing

1шт.

Ref.13 through 16 are replaced with Ref. 17 through 22 on models with auxiliary steering.

1шт.

15

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

Ref.13 through 16 are replaced with Ref. 17 through 22 on models with auxiliary steering.

1шт.

16

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

4шт.

Ref.13 through 16 are replaced with Ref. 17 through 22 on models with auxiliary steering.

1шт.

17

N8146

ADAPTER

- steering pump, models with auxiliary

1шт.

18

E104134

GASKET

- adapter, models with auxiliary steering

1шт.

19

N8145

SLEEVE

COUPLING - drive, models with auxiliary steering

1шт.

20

S117901

STUD

- adapter to auxiliary steering pump

2шт.

21

492-11038

LOCK WASHER,3/8"

models with auxiliary steering 3/8"

2шт.

22

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF, Models with auxiliary steering

2шт.
