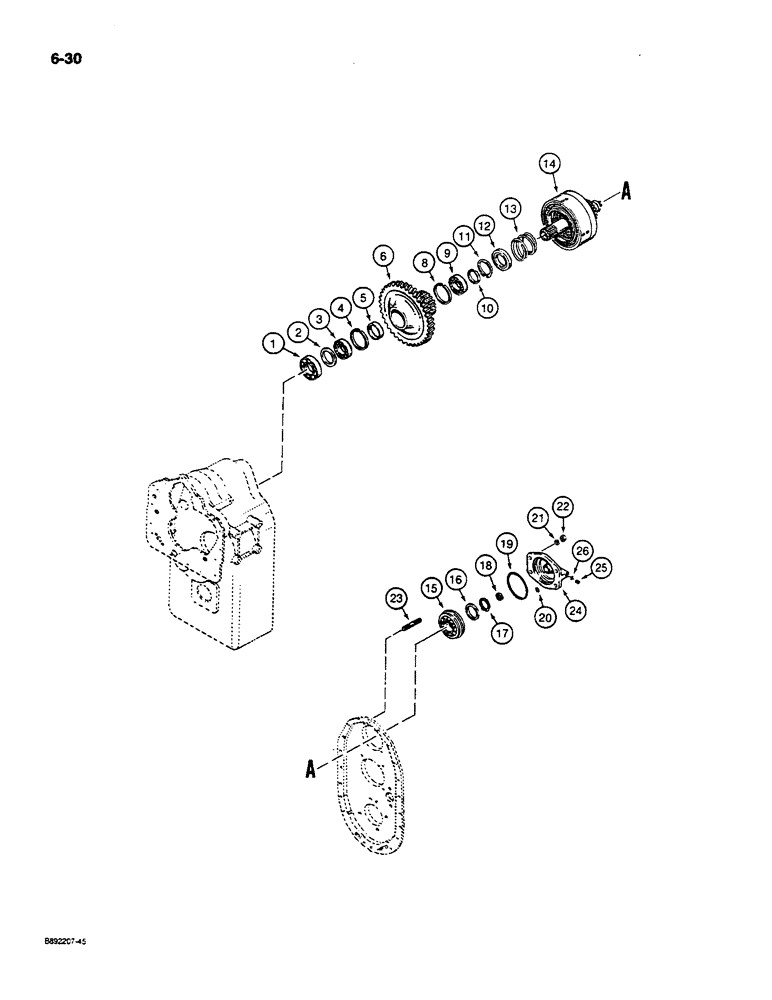

Запчасти Case W14C (6-30) - TRANSMISSION, LOW GEARS (06) - POWER TRAIN

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figures 6-14 through

1шт.

6-40

1шт.

1

E114340

BALL BEARING

BEARING - ball, low speed clutch shaft, rear

1шт.

2

E114341

SPACER

- rear bearing

1шт.

3

S89657

BEARING

- ball, gear, low speed

1шт.

4

S89658

RING

- bearing retaining

1шт.

5

N7213

SPACER

- low speed gear

1шт.

6

N7214

GEAR

HUB - low gear

1шт.

7

N13129

RING

- oil retaining, forward clutch gear, not shown

1шт.

The oil retaining ring is an internal part of the shaft and it is recommended that the ring should not be removed.

1шт.

8

S89658

RING

- bearing retaining

1шт.

9

S89657

BEARING

- ball, low speed gear

1шт.

10

E114334

CLIP

RING - retaining, bearing

1шт.

11

E114328

RING, SNAP

RING - snap, spring retainer

1шт.

12

E114332

RETAINER

- spring

1шт.

13

E114331

SPRING

- piston return

1шт.

14

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, parts list Figure 6-20

1шт.

15

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - ball, low speed shaft, front

1шт.

16

E114268

BEARING WASHER

WASHER - front bearing support

1шт.

17

E114334

CLIP

RING - snap, front bearing

1шт.

18

E114360

RING,16.77mm ID x 19.47mm OD x 3.1mm Thk

- bearing retaining

1шт.

19

N8134

O-RING

- front bearing cap, large

1шт.

20

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- bearing cap, front, small

1шт.

21

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

22

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

4шт.

23

N7209

BEARING CAP

STUD - bearing cap

4шт.

D142544

COVER ASSY

HOUSING ASSEMBLY - front bearing cap

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - front bearing

1шт.

25

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

1шт.

26

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.
