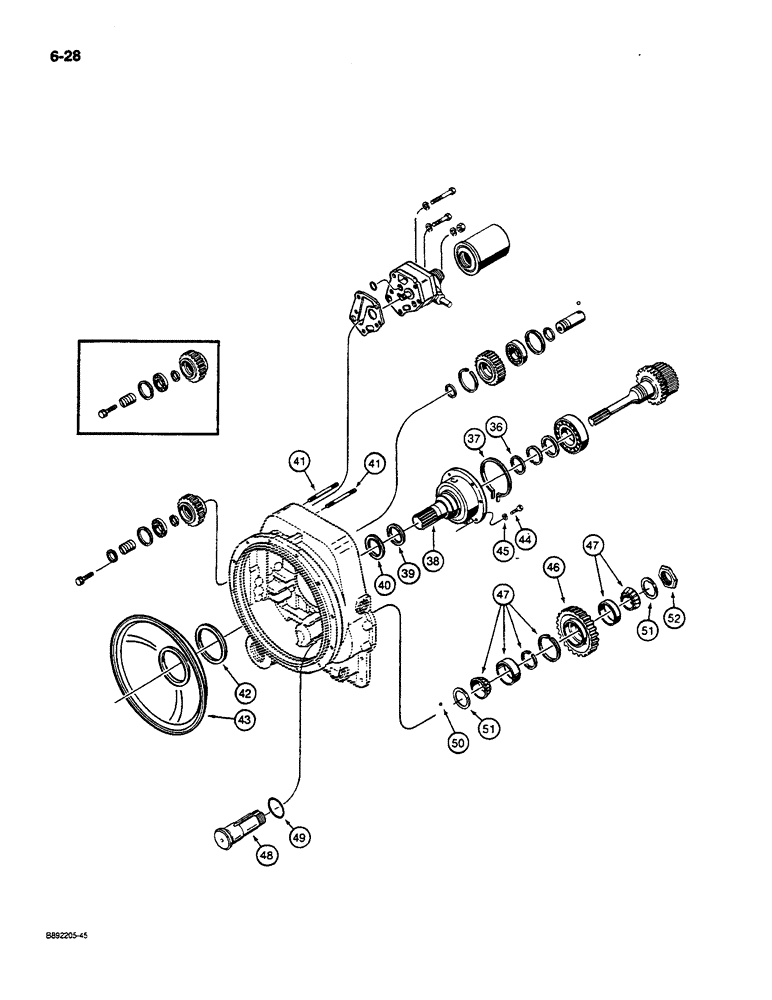

Запчасти Case W14C (6-28) - TRANSMISSION, CHARGING PUMP AND REVERSE IDLER (06) - POWER TRAIN

L127681

TRANSMISSION

ASSEMBLY - continued from previous figure, also includes parts on Figures 6-14 through 6-40

1шт.

36

A17901

SEAL

RING - piston

1шт.

37

E114266

RING

- snap, bearing

1шт.

38

N13324

SUPPORT

- stator

1шт.

39

D87245

RING

SPRING - piston ring expander

1шт.

40

D87244

RING,Locking, 67.31mm ID x 72.14mm OD x 3.05mm Thk

- piston

1шт.

41

N7153

STUD

- pump mounting

3шт.

42

D87224

OIL SEAL,101.6mm ID x 127.2mm OD x 7.92mm Thk

- oil, baffle

1шт.

43

E114272

BAFFLE

- housing

1шт.

44

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

45

492-11038

LOCK WASHER,3/8"

6шт.

46

N7155

GEAR

- reverse idler

1шт.

47

N7190

BEARING ASSY,45.24mm ID x 77.81mm OD x 44.67mm W

BEARING ASSEMBLY - reverse idler gear, matched parts not serviced separately

1шт.

48

D142275

SHAFT

- reverse idler

1шт.

49

D27878

O-RING,1.609" ID x 1.887" OD

- shaft, reverse idler

1шт.

50

211-208

BALL,5/16" Dia

- 5/16 inch, grade 25

1шт.

51

D142277

PLATE ASSY.

RING - reverse idler gear retaining

2шт.

52

D142278

BEARING LOCK NUT

NUT - special, reverse idler shaft

1шт.
