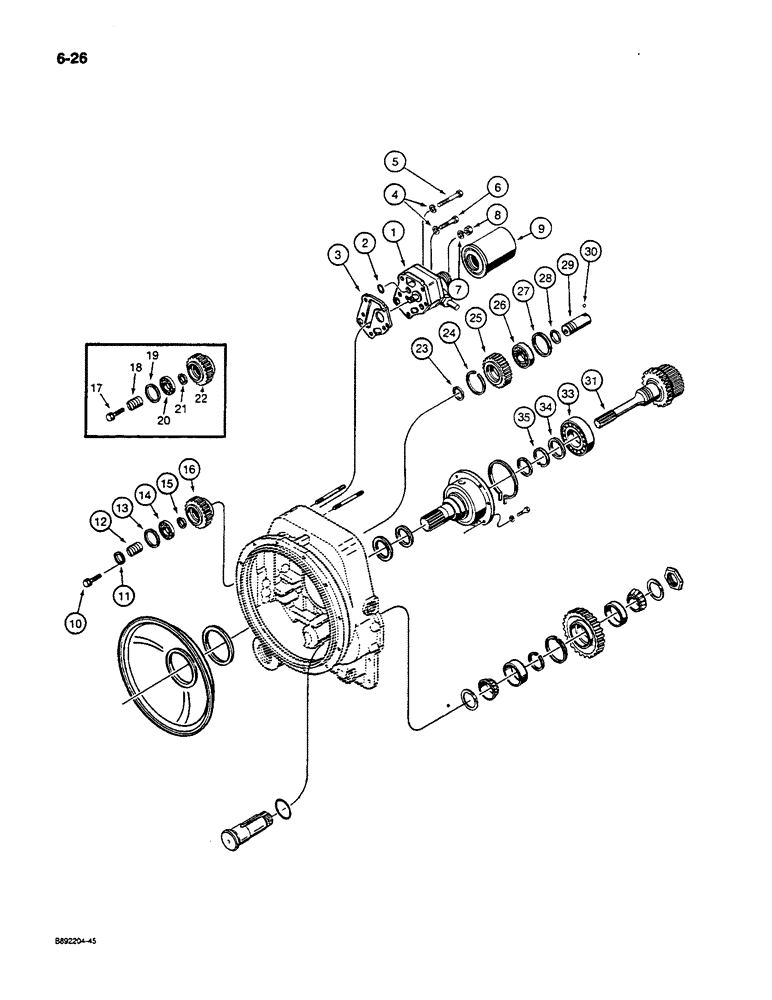

Запчасти Case W14C (6-26) - TRANSMISSION, CHARGING PUMP AND REVERSE IDLER (06) - POWER TRAIN

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figures 6-14 through 6-40

1шт.

1

S301656

PACKAGE, REPAIR

PUMP - charging, transmission (replaces D87252)

1шт.

2

E114251

O-RING

- charging pump

1шт.

3

E114250

GASKET

- charging pump to converter housing

1шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

113-352

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

1шт.

6

113-321

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

8

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

3шт.

9

D146735

FILTER

- charging pump

1шт.

10

E114257

BOLT

- includes washer, bearing support

2шт.

11

E114258

RING

- bearing locating

1шт.

12

E114259

SUPPORT

- pump drive bearing

1шт.

13

L30725

RING

- bearing retaining

1шт.

14

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- pump drive gear

1шт.

15

E114258

RING

- bearing locating

1шт.

16

E114260

GEAR WHEEL

GEAR - pump drive

1шт.

17

E114257

BOLT

- includes washer, bearing support

2шт.

18

E114259

SUPPORT

- auxiliary pump drive bearing

1шт.

19

E114261

RING

- bearing retaining

1шт.

20

N7254

BALL BEARING,35 mm ID x 71.998 mm OD x 17 mm

BEARING - pump drive gear

1шт.

21

E114258

RING

- bearing locating

1шт.

22

E114305

GEAR

- auxiliary pump drive

1шт.

23

E114258

RING

- bearing locating, idler gear, small

1шт.

24

E114261

RING

- bearing locating, idler gear, large

1шт.

25

E114262

GEAR WHEEL

GEAR - pump drive idler

1шт.

26

N7254

BALL BEARING,35 mm ID x 71.998 mm OD x 17 mm

BEARING - idler stub shaft

1шт.

27

E114261

RING

- bearing retaining

1шт.

28

E114258

RING

- bearing locating

1шт.

29

E114264

SHAFT

- idler gear stub

1шт.

30

211-206

BALL,1/4" Dia

- 1/4 inch, grade 25

1шт.

31

N7150

SHAFT

- turbine and hub

1шт.

32

N13129

RING

- oil retaining, turbine and hub shaft, not shown

1шт.

The oil retaining ring is an internal part of the shaft and it is recommended that the ring should not be removed.

1шт.

33

N7486

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

BEARING - turbine shaft

1шт.

34

E114268

BEARING WASHER

WASHER - bearing locating

1шт.

35

E104161

RING

- bearing retaining

1шт.
