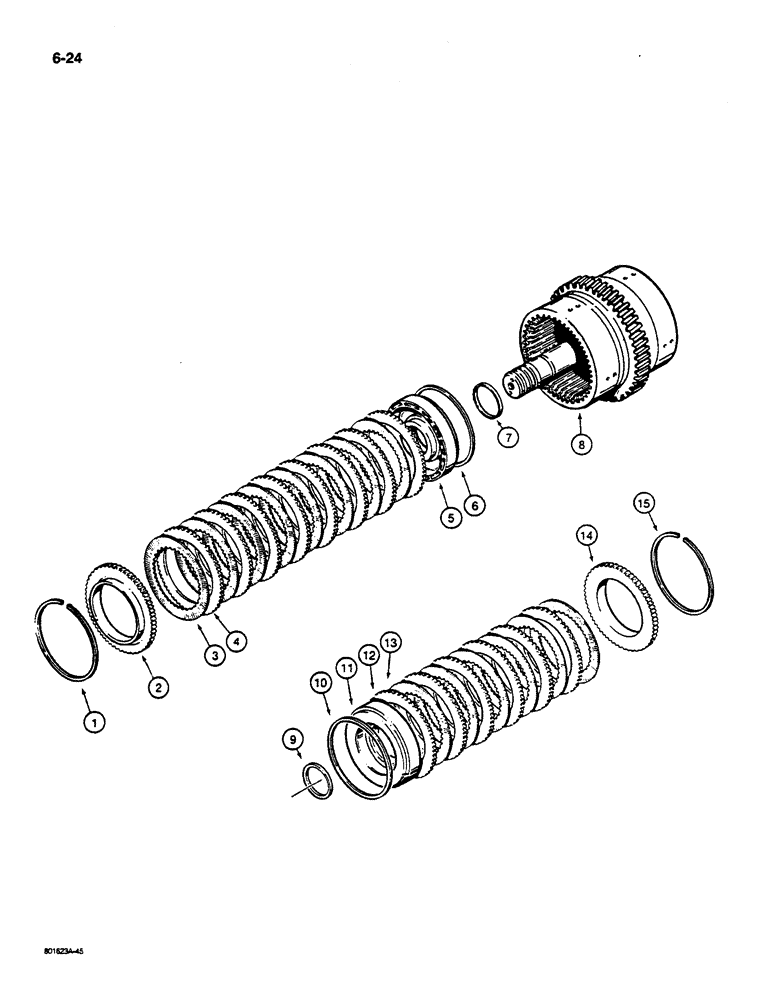

Запчасти Case W14C (6-24) - TRANSMISSION, FORWARD AND SECOND CLUTCH (06) - POWER TRAIN

L127681

TRANSMISSION

ASSEMBLY - includes parts on Figures 6-14 through 6-40

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - forward and second

1шт.

1

E114380

RING, SNAP

RING - retaining, backing plate

1шт.

2

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

3

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner teeth

8шт.

4

E114383

CLUTCH DISC

DISC - clutch, metal, outer teeth

8шт.

5

D87250

PISTON

- clutch

1шт.

6

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

7

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

8

N13638

DRUM

- includes shaft, forward and second

1шт.

9

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

- piston, inner clutch

1шт.

10

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

RING - piston, outer clutch

1шт.

11

E114392

PISTON

- clutch

1шт.

12

E114383

CLUTCH DISC

DISC - clutch, metal, outer teeth

6шт.

13

N7217

DISC,92.66mm ID x 133.6mm OD x 2.41mm Thk

- clutch, friction, inner teeth

6шт.

14

E114381

PLATE

GEAR - backing plate, clutch disc

1шт.

15

E114380

RING, SNAP

RING - retaining, backing plate

1шт.
