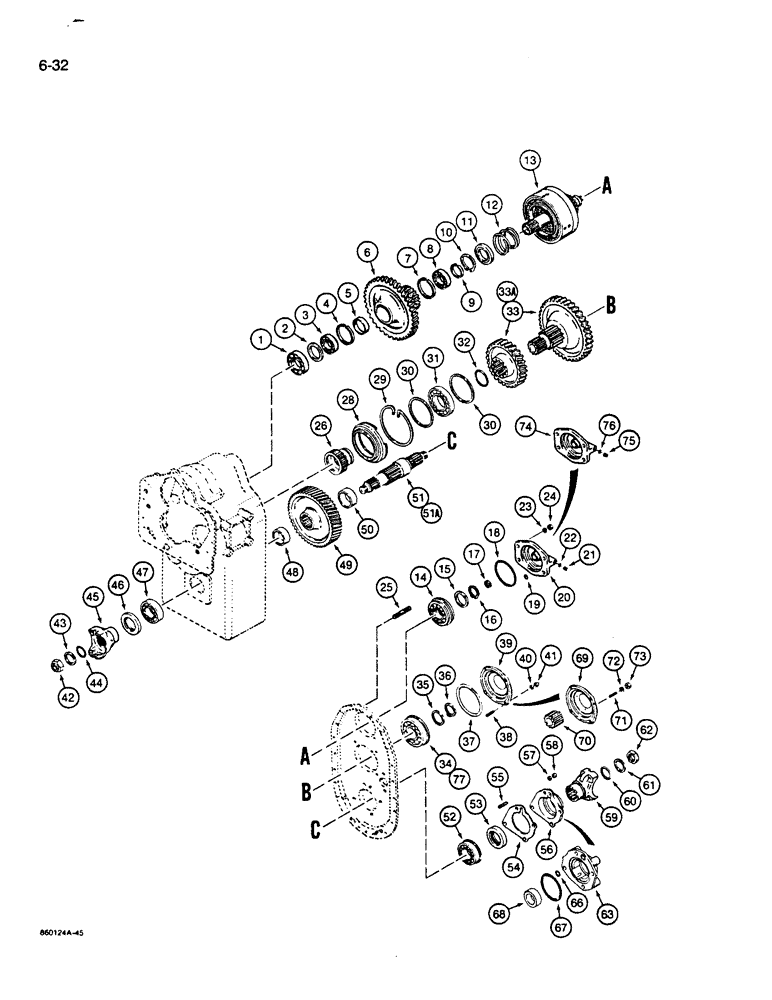

Запчасти Case W14B (6-32) - TRANSMISSION, OUTPUT SHAFT, IDLER SHAFT, AND LOW GEARS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - for correct assembly and components see figures 6-10- 6-40, Includes: Ref. 1 - 77

1шт.

1

E114340

BALL BEARING

BEARING - front, low speed clutch shaft

1шт.

2

E114341

SPACER

- front bearing

1шт.

3

S89657

BEARING

- gear, low speed

1шт.

4

S89658

RING

- bearing retaining

1шт.

5

N7213

SPACER

- low speed gear

1шт.

6

N13326

CYLINDER END CAP

HUB - low gear, Includes: Ref. 6A

1шт.

6a

N13129

RING

- oil retaining, reverse clutch gear, not shown

1шт.

The oil retaining ring is an internal part of the shaft and it is recommended that the ring should not be removed.

1шт.

7

S89658

RING

- bearing retaining

1шт.

8

S89657

BEARING

- low speed gear

1шт.

9

E114334

CLIP

RETAINING RING - bearing

1шт.

10

E114328

RING, SNAP

SNAP RING - spring retainer

1шт.

11

E114332

RETAINER

- spring

1шт.

12

E114331

SPRING

- piston return

1шт.

13

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - low, parts list figure 6-22

1шт.

14

N7276

BALL BEARING,50mm ID x 110mm OD x 27mm W

BEARING - rear, low speed shaft

1шт.

15

E114268

BEARING WASHER

WASHER - rear bearing support

1шт.

16

E114334

CLIP

RETAINING RING - rear bearing

1шт.

17

E114360

RING,16.77mm ID x 19.47mm OD x 3.1mm Thk

- bearing retaining

1шт.

18

N8134

O-RING

- rear bearing cap, large

1шт.

19

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

- bearing cap, rear, small

1шт.

N13147

CAP

HOUSING ASSEMBLY - rear bearing cap, use with L116662, L118034, and L118035 transmissions, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - rear bearing

1шт.

21

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Includes Ref. 22 Hex Hd, 3/8"-24 ORB

1шт.

22

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

23

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

24

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated

4шт.

25

N7209

BEARING CAP

STUD - bearing cap

4шт.

26

N8832

HUB

RETAINING RING - clutch disc hub, Includes: Ref. 27

1шт.

27

N13129

RING

- oil retaining, reverse clutch gear, not shown

1шт.

The oil retaining ring is an internal part of the shaft and it is recommended that the ring should not be removed.

1шт.

28

E114350

BEARING CARRIER

CARRIER - bearing

1шт.

29

E114349

RING, SNAP

SNAP RING - bearing carrier

1шт.

30

E114346

O-RING

RING - bearing locating

2шт.

31

E114347

BEARING

- third clutch disc hub

1шт.

32

E114345

RING

RETAINING RING - bearing

1шт.

33

N13327

GEAR

IDLER GEAR AND SHAFT - matched set, use only on models without auxiliary steering

1шт.

33a

N14121

BRACKET

IDLER GEAR AND SHAFT - matched set, use only on models with auxiliary steering

1шт.

34

E114369

BEARING

- idler shaft, use on models with L116662, L118034, and L118035 transmissions

1шт.

35

E114368

WASHER, THRUST

WASHER - special, bearing support

1шт.

36

E114367

CLIP

RETAINING RING - rear bearing, idler shaft

1шт.

37

A27384

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

- rear bearing cap or steering pump adapter

1шт.

38

N7209

BEARING CAP

STUD - bearing cap, use only on models without auxiliary steering

4шт.

39

E114365

BEARING CAP

CAP - idler shaft bearing, use only on models without auxiliary steering

1шт.

40

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Use only on models without auxiliary steering 7/16"

4шт.

41

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, use only on models without auxiliary steering

4шт.

42

N8135

NUT

- flange

1шт.

43

N8136

WASHER

- flange

1шт.

44

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- flange

1шт.

45

N13331

FLANGE

- output, front

1шт.

46

S89592

OIL SEAL,53.98mm ID x 90.17mm OD x 12.7mm Thk

- oil, output shaft

1шт.

47

ST436

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - output shaft, front

1шт.

48

N8141

SPACER

- output gear

1шт.

49

N8140

GEAR

- output shaft

1шт.

50

N8139

SPACER

- output gear

1шт.

51

N8142

SHAFT

- output, used on L118034, L118035, L126646, L126645, L127062 and L127063 transmissions

1шт.

51a

N13328

SHAFT

- output, used on L116662 transmission

1шт.

52

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

- output shaft, rear

1шт.

53

E114372

OIL SEAL,53.98mm ID x 79.55mm OD x 9.53mm Thk

OIL SEAL - rear bearing

1шт.

54

N7206

GASKET

- bearing cap, used on L118034, L118035, L126646, L126645, L127062 and L127063 transmissions

1шт.

55

N7210

STUD

- output bearing cap, rear

4шт.

56

N7207

BEARING CAP

CAP - output shaft rear bearing, used on L118034, L118035, L126646, L126645, L127062 and L127063 transmissions

1шт.

57

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

4шт.

58

E114371

NUT

- special, bearing cap stud

4шт.

59

N13367

FLANGE

- output, rear, used on L118034, L118035, L126646, L126645, L127062 and L127063 transmisssions only, see Fig. 7-2 Ref. 4 for flange used on L116662 transmission

1шт.

60

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- flange

1шт.

61

N8136

WASHER

- flange

1шт.

62

N8135

NUT

- flange

1шт.

63

E114407

CAP

- output shaft rear bearing, used on L116662 transmission

1шт.

64

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Used on L116662 transmission, not shown Hex Hd, 1 1/16"-12 ORB

1шт.

65

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Plug, not shown

1шт.

66

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- cap, rear bearing, used on L116662 transmission

1шт.

67

A27817

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

- cap, rear bearing, used on L116662 transmission

1шт.

68

E114374

SPACER

- bearing to flange, used on L116662 transmission

1шт.

69

N8146

ADAPTER

- steering pump, use only on models with auxiliary steering

1шт.

70

N8145

SLEEVE

COUPLING - drive, use only on models with auxiliary steering

1шт.

71

S117901

STUD

- adapter to auxiliary steering pump

2шт.

72

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Use only on models with auxiliary steering 3/8"

2шт.

73

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Use only on models with auxiliary steering 3/8"-16, G5

1шт.

D142544

COVER ASSY

HOUSING ASSEMBLY - rear bearing cap, use with L126646, L126645, L127062 and L127063 transmissions, Includes: Ref. 74 - 76

1шт.

74

NSS

NOT SOLD SEPARAT

HOUSING - rear bearing

1шт.

75

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Includes Ref. 76 Hex Hd, 3/8"-24 ORB

1шт.

76

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

77

S300101

BALL BEARING,55.001 mm ID x 120 mm OD x 29 mm

BEARING - idler shaft, use with L126646, L126645, L127062 and L127063 transmissions

1шт.
