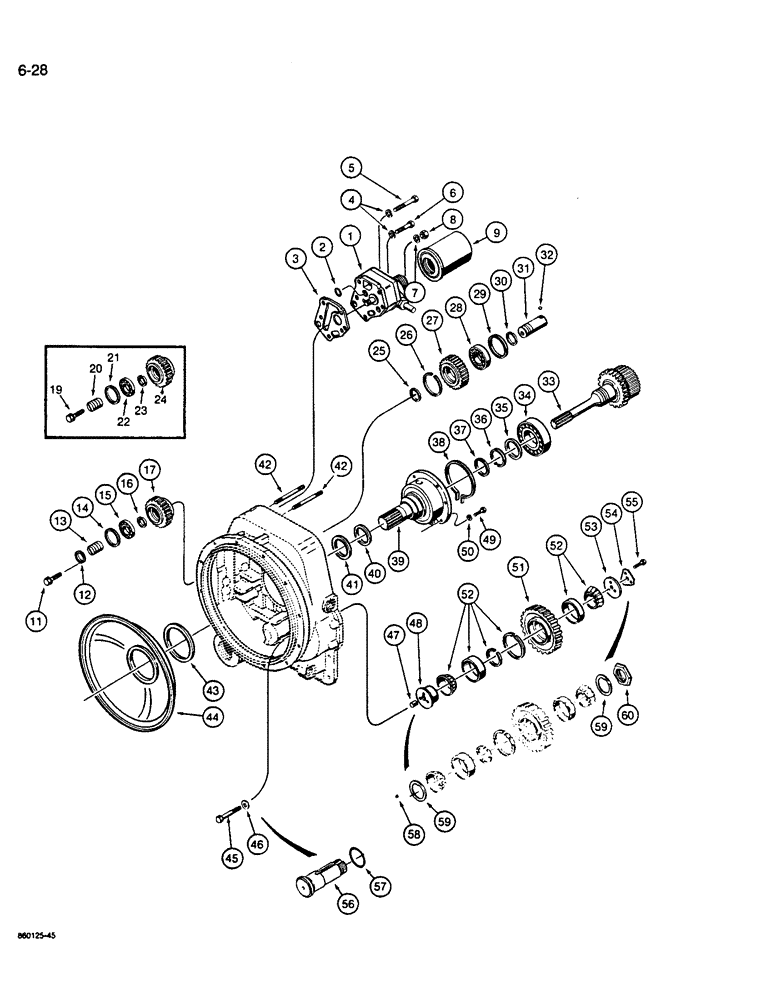

Запчасти Case W14B (6-28) - TRANSMISSION, CHARGING PUMP AND REVERSE IDLER (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - for correct assembly and components see figures 6-10 - 6-40, Includes: Ref. 1 - 60

1шт.

1

D87252

PUMP

ASSEMBLY - transmission charging, Includes: Ref. 1A

1шт.

1a

S301656

PACKAGE, REPAIR

KIT - repair, shim and gasket, not shown

1шт.

Also contains a shaft seal that is NSS. Goes between charge pump and converter housing.

1шт.

2

E114251

O-RING

- charging pump

1шт.

3

E114250

GASKET

- charging pump to converter housing

1шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

113-352

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

1шт.

6

113-321

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

7

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Pump mounting stud 7/16"

3шт.

8

425-117

NUT,7/16"-20, G5

- hex, 7/16" - 20 NF, plated, pump mounting stud

3шт.

9

D87214

FILTER

- charging pump

1шт.

11

E114257

BOLT

AND WASHER - bearing support

2шт.

12

E114258

RING

- bearing locating

1шт.

13

E114259

SUPPORT

- pump drive bearing

1шт.

14

L30725

RING

- bearing retaining

1шт.

15

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- pump drive gear

1шт.

16

E114258

RING

- bearing locating

1шт.

17

E114260

GEAR WHEEL

GEAR - pump drive

1шт.

19

E114257

BOLT

AND WASHER - bearing support

2шт.

20

E114259

SUPPORT

- auxiliary pump drive bearing

1шт.

21

E114261

RING

- bearing retaining

1шт.

22

E114263

BEARING

- pump drive gear

1шт.

23

E114258

RING

- bearing locating

1шт.

24

E114305

GEAR

- auxiliary pump drive

1шт.

25

E114258

RING

- bearing locating, idler gear, small

1шт.

26

E114261

RING

- bearing locating, idler gear, large

1шт.

27

E114262

GEAR WHEEL

GEAR - pump drive idler

1шт.

28

E114263

BEARING

- idler stub shaft

1шт.

29

E114261

RING

- bearing retaining

1шт.

30

E114258

RING

- bearing locating

1шт.

31

E114264

SHAFT

- idler gear stub

1шт.

32

211-206

BALL,1/4" Dia

- 1/4", grade 25, chrome alloy steel

1шт.

33

N7150

SHAFT

- turbine and hub, Includes: Ref. 33A

1шт.

33a

N13129

RING

- oil retaining, turbine and hub shaft, not shown

1шт.

The oil retaining ring is an internal part of the shaft and it is recommended that the ring should not be removed.

1шт.

34

N7486

BALL BEARING,1.9685" ID x 4.3307" OD x 1.063"

BEARING - turbine shaft

1шт.

35

E114268

BEARING WASHER

WASHER - bearing locating

1шт.

36

E104161

RING

- bearing retaining

1шт.

37

A17901

SEAL

RING - piston

1шт.

38

E114266

RING

SNAP RING - bearing

1шт.

39

N13324

SUPPORT

- stator

1шт.

40

D87245

RING

SPRING - piston ring expander

1шт.

41

D87244

RING,Locking, 67.31mm ID x 72.14mm OD x 3.05mm Thk

- piston

1шт.

42

N7153

STUD

- pump mounting

3шт.

43

D87224

OIL SEAL,101.6mm ID x 127.2mm OD x 7.92mm Thk

OIL SEAL - baffle

1шт.

44

E114272

BAFFLE

- housing

1шт.

45

28-744

BOLT,Hex, 7/16" - 20 x 2-3/4", Gr 8

- hex head, 7/16" - 20 NF x 2-3/4", grade 8, use with L116662, L118034, and L118035 transmissions

3шт.

46

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Use with L116662, L118034, and L118035 transmissions 7/16"

3шт.

47

E114275

PIN

- shaft, reverse idler, use with L116662, L118034, and L118035 transmissions

1шт.

48

N7154

SHAFT

- reverse idler, use with L116662, L118034, and L118035 transmissions

1шт.

49

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

50

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

51

N7155

GEAR

- reverse idler

1шт.

52

N7190

BEARING ASSY,45.24mm ID x 77.81mm OD x 44.67mm W

BEARING ASSEMBLY - reverse idler gear, matched parts not serviced separately

1шт.

53

E114278

PLATE

- reverse idler gear retaining, use with L116662, L118034, and L118035 transmissions

1шт.

54

E114279

PLATE ASSY.

PLATE - lock, use with L116662, L118034, and L118035 transmissions

1шт.

55

28-716

BOLT,Hex, 7/16" - 20 x 1", Gr 8

- hex head, 7/16" - 20 NF x 1", grade 8, use with L116662, L118034, and L118035 transmissions

3шт.

56

D142275

SHAFT

- reverse idler, use with L126646, L126645, L127062 and L127063 transmissions

1шт.

57

D27878

O-RING,1.609" ID x 1.887" OD

- shaft, reverse idler used with D142275 shaft

1шт.

58

211-208

BALL,5/16" Dia

- 5/16", grade 25, chrome alloy steel, check

1шт.

59

D142277

PLATE ASSY.

RING - reverse idler gear retaining, use with L126646, L126645, L127062 and L127063 transmissions

2шт.

60

D142278

BEARING LOCK NUT

NUT - special, use with L126646, L126645, L127062 and L127063 transmissions

1шт.
