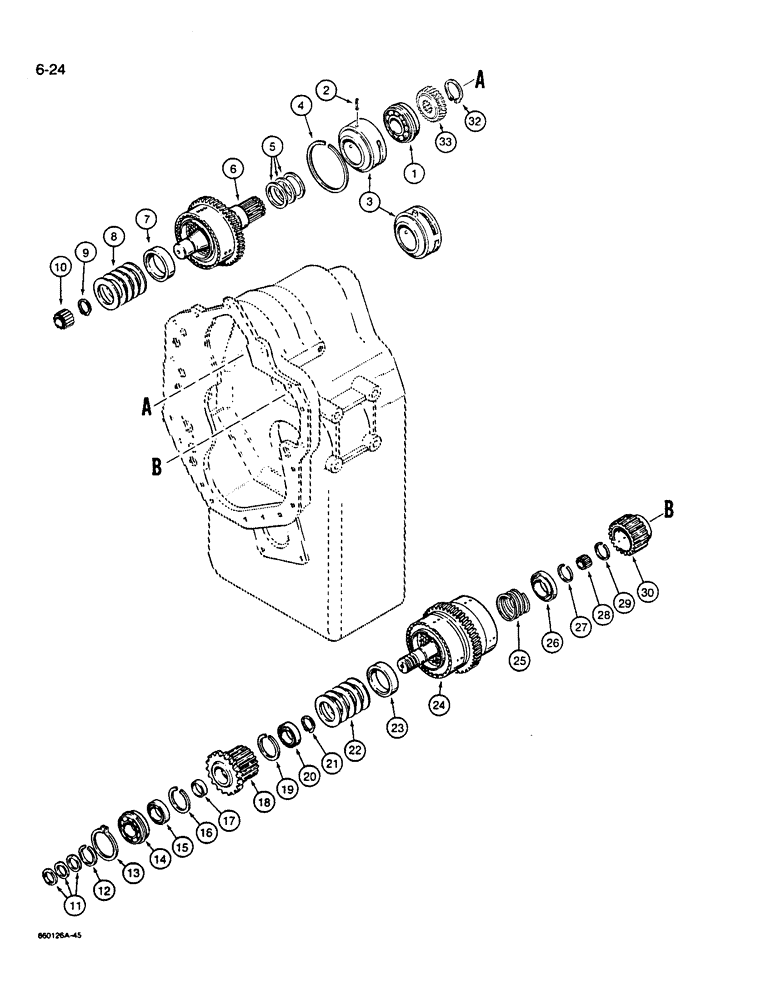

Запчасти Case W14B (6-24) - TRANSMISSION, FORWARD, REVERSE, AND SECOND GEARS (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - for correct assembly and components see figures 6-10 - 6-40, Includes: Ref. 1 - 33

1шт.

1

N9442

BALL BEARING

BEARING - rear, forward shaft

1шт.

2

E114357

AXLE PIN

ROLL PIN - sleeve, if used

1шт.

3

E114356

BUSHING

SLEEVE - piston ring, may be a sleeve with a hole for use with Ref. 2 roll pin or a formed sleeve with a tab in place of the roll pin setup

1шт.

4

E114355

RING

- retainer, piston ring sleeve

1шт.

5

A55824

SEAL

RING - piston, forward shaft

3шт.

6

NSS

NOT SOLD SEPARAT

DRUM AND SHAFT ASSEMBLY - forward, parts list figure 6-22

1шт.

7

N7215

SPACER

- piston return spring

1шт.

8

D87249

SPRING

BELLEVILLE SPRING - piston return

5шт.

9

D87257

RING

SNAP RING - spring retainer

1шт.

10

E114339

NEEDLE BEARING,44.44mm ID x 54.02mm OD x 19.05mm W

BEARING - forward pilot shaft

1шт.

11

A17925

SPRING

RING - piston, reverse and second shaft

3шт.

12

L33518

RING

- retainer, front bearing

1шт.

13

S89652

RING

SNAP RING - front bearing

1шт.

14

S89654

BALL BEARING,40mm ID x 90mm OD x 23mm W

BEARING - front, shaft, reverse and second

1шт.

15

A28236

BALL BEARING,1.5743" ID x 2.6772" OD x 0.5906"

BEARING - gear, clutch driven

1шт.

16

E114325

RING, SNAP

RING - retainer, bearing

1шт.

17

E114326

SPACER

- bearing, clutch driven gear

1шт.

18

N7270

GEAR

- reverse clutch, Includes: Ref. 18A

1шт.

18a

N13129

RING

- oil retaining, reverse clutch gear, not shown

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.

19

E114325

RING, SNAP

RING - retainer, bearing

1шт.

20

L33513

BALL BEARING,1.6748" ID x 2.6772" OD x 0.5906"

BEARING - gear, clutch driven

1шт.

21

D87257

RING

SNAP RING - spring retainer

1шт.

22

D87249

SPRING

BELLEVILLE SPRING - piston return

5шт.

23

N7215

SPACER

- spring, piston return

1шт.

24

NSS

NOT SOLD SEPARAT

CLUTCH ASSEMBLY - reverse and second, parts list figure 6-26

1шт.

25

E114331

SPRING

- piston return

1шт.

26

E114332

RETAINER

- spring

1шт.

27

E114328

RING, SNAP

SNAP RING - spring retainer

1шт.

28

N7216

NEEDLE BEARING,1.125" ID x 1.5012" OD x 1"

BEARING - rear, shaft, reverse and second

1шт.

29

E114334

CLIP

RING - retainer, second clutch disc hub

1шт.

30

N8749

GEAR

- second clutch disc hub, Includes: Ref. 31

1шт.

31

N13129

RING

- oil retaining, second clutch disc hub gear, not shown

1шт.

The oil retaining ring is an internal part of the gear and it is recommended that the ring should not be removed.

1шт.

32

S117877

RING

- snap, forward gear

1шт.

33

N13325

GEAR WHEEL

GEAR - forward shaft

1шт.
