Запчасти Case W14B (6-18) - TRANSMISSION, IMPELLER, TURBINE, AND FLEXPLATE (06) - POWER TRAIN

REF

INSTRUCTION

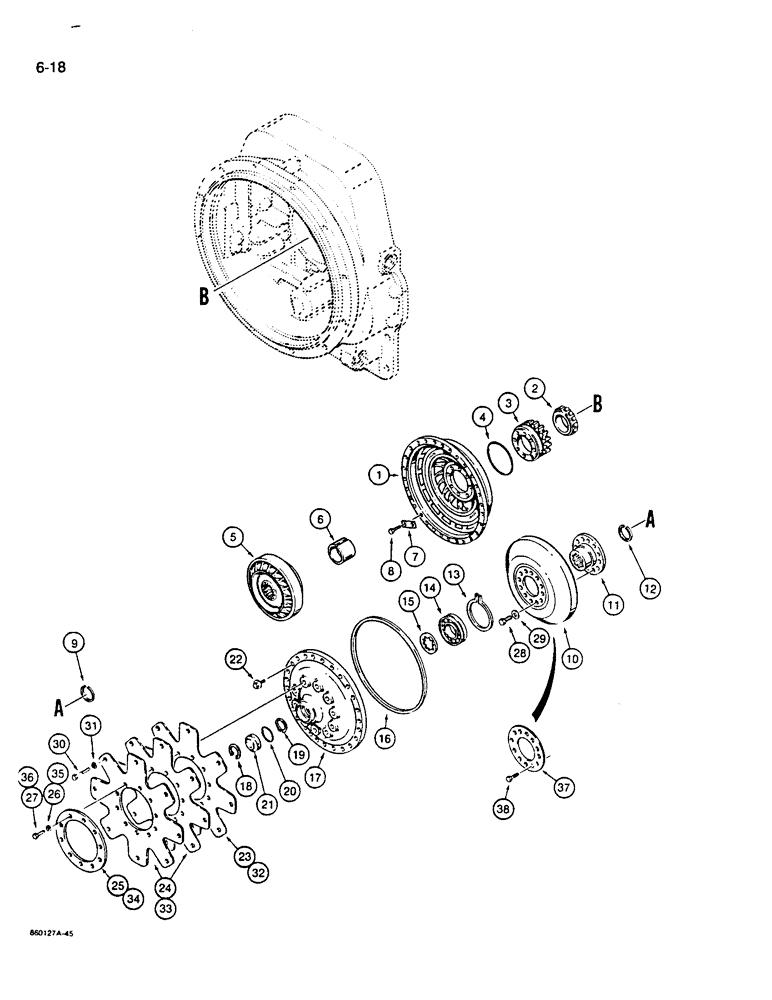

TRANSMISSION ASSEMBLY - for correct assembly and components see figures 6-10 - 6-40, Includes: Ref. 1 - 38

1шт.

1

N7192

IMPELLER

- torque converter

1шт.

2

D77034

BEARING, ROLLER, CYL,49.99mm ID x 72.1mm OD x 16mm W

BEARING - impeller hub gear

1шт.

3

E114280

GEAR WHEEL

GEAR - impeller hub

1шт.

4

E114281

O-RING,3.63mm Thk x 92.89mm ID, 75 Duro

- impeller hub

1шт.

5

N7688

STATOR

HUB - impeller

1шт.

6

E114284

SPACER

- vane, impeller to hub bearing

1шт.

7

E114283

LOCK

TAB - lock, Serial Range: impeller-hub

4шт.

8

28-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 8

- hex head, 3/8" - 24 NF x 3/4", grade 8

8шт.

9

E114286

CIRCLIP

RETAINING RING - bearing, small

1шт.

10

N7379

TURBINE

- shift

1шт.

11

N7378

BRACKET

HUB - turbine

1шт.

12

E114288

RING

RETAINING RING - hub

1шт.

13

E114290

RING

- locating, hub bearing

1шт.

14

E114291

BALL BEARING

BEARING - turbine hub

1шт.

15

E114292

WASHER

- bearing retaining

1шт.

16

T42352

SEALING RING,Square, 2.69mm Thk x 64.52mm ID

- impeller to cover

1шт.

N14131

COVER

ASSEMBLY - impeller, Includes: Ref. 17 and 18

1шт.

17

N7380

COVER

- impeller, no longer available separately, order N14131 assembly

1шт.

18

K621779

SNAP RING,1.688, Int, #168

Ring, Snap, 1.688", Int, #168, bore plug

1шт.

19

E114288

RING

- turbine retaining

1шт.

20

A62193

O-RING,1.424" ID x 1.63" OD

- impeller cover, bore plug

1шт.

21

E114296

PLUG

- bore

1шт.

22

D58177

CAPTIVE WASHER SCREW,3/8" - 16 x 1"

BOLT - hex head, 3/8" - 16 NC x 1", special

24шт.

N9441

DRIVE

KIT - flex plate, drive, no longer available, order D142271, see Refs. 32 - 36, Includes: Ref. 23 - 27

1шт.

23

NSS

NOT SOLD SEPARAT

FLEX PLATE - drive, threaded bolt holes

1шт.

24

NSS

NOT SOLD SEPARAT

FLEX PLATE - drive

2шт.

25

E114300

PLATE

RING - flex plate

1шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

27

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

28

A18033

SCREW

- hex head, 3/8" - 24 NF x 1", special

12шт.

29

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

12шт.

30

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- hex head, 3/8" - 24 NF x 1-3/4"

8шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

D142271

KIT

- flex plate, drive, Includes: Ref. 32 - 36

1шт.

32

NSS

NOT SOLD SEPARAT

FLEX PLATE - drive, threaded bolt holes

1шт.

33

NSS

NOT SOLD SEPARAT

FLEX PLATE - drive

2шт.

34

E114300

PLATE

RING - flex plate

1шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.

36

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

10шт.

37

D142273

WASHER

RING - backing, turbine

1шт.

38

D142272

LOCK BOLT,Locking, Hex, 3/8" - 24 x 3/4", Gr 8

BOLT - special, epoxy coated

12шт.
