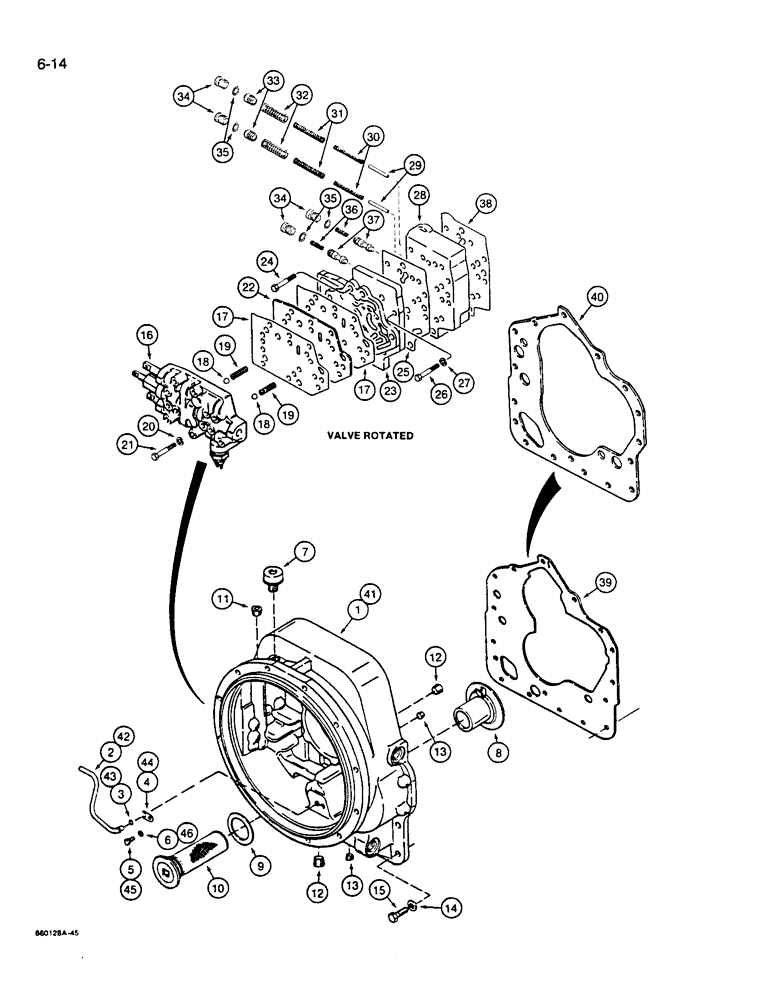

Запчасти Case W14B (6-14) - TRANSMISSION, TORQUE CONVERTER HOUSING AND CONTROL VALVE (06) - POWER TRAIN

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - for correct assembly and components see Figures 6-10 - 6-40, Includes: Ref. 1 - 46

1шт.

N8127

HOUSING

ASSEMBLY - torque converter, use with L116662, L118034, and L118035 transmissions, Includes: Ref. 1 - 6

1шт.

See Figure 6-10 for transmission identifications.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - torque converter

1шт.

2

N8128

TUBE

- lube by-pass

1шт.

3

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- tube

1шт.

4

NLS

NO LONGER SERVICED

CLAMP - tube

1шт.

5

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

7

N7134

BREATHER

- air, torque converter

1шт.

8

E114312

SLEEVE

- torque converter housing

1шт.

9

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

- screen

1шт.

10

L33482

FILTER SCREEN

SCREEN - filter

1шт.

11

S117872

PLUG

- 1/4", special, torque converter housing

1шт.

12

E114311

PLUG

- hex socket head, 1/2" NPT

2шт.

13

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

2шт.

14

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

16шт.

15

113-312

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

16шт.

16

E114307

VALVE

ASSEMBLY - forward and reverse, parts list Figure 6-40

1шт.

17

N13334

GASKET

- control valve and seal plate

2шт.

18

211-210

BALL,3/8" Dia

- 3/8", grade 200, chrome alloy, steel

2шт.

19

E114309

SPRING

- detent

2шт.

20

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

21

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

9шт.

22

N13335

PLATE

- control valve seal

1шт.

23

N13332

PLATE

- adaptor, valve mounting

1шт.

24

426372

HEX SOC SCREW,3/8" - 16 x 2 3/4"

SCREW - mounting, adaptor plate to housing

7шт.

25

N13333

GASKET

- adaptor, Serial Range: plate-housing

1шт.

26

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

S300321

VALVE

ASSEMBLY - modulator (replaces N8147), used with L127062 and L127063 transmissions

1шт.

Ref. 33 and 37 must be replaced as complete sets if previously built transmissions are to be converted to have S300321 modulator valve for faster shuttle shift. See Figure 6-10 for transmission identifications.

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - modulator valve

1шт.

29

N8148

AXLE PIN

PIN - accumulator

2шт.

30

N8149

SPRING

- accumulator, inner

2шт.

31

N8150

SPRING

- accumulator, middle

2шт.

32

N8151

SPRING

- accumulator, outer

2шт.

33

S300309

SPOOL

VALVE - accumulator

2шт.

Ref. 33 and 37 must be replaced as complete sets if previously built transmissions are to be converted to have S300321 modulator valve for faster shuttle shift. See Figure 6-10 for transmission identifications.

1шт.

34

86625138

PLUG,7/18" - 14

Includes Ref. 35 Hex Soc, 7/8"-14 ORB

4шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

36

N8547

SPRING

- regulator

2шт.

37

S300308

SPOOL

- regulator

2шт.

Ref. 33 and 37 must be replaced as complete sets if previously built transmissions are to be converted to have S300321 modulator valve for faster shuttle shift. See Figure 6-10 for transmission identifications.

1шт.

38

E114409

GASKET

- modulator valve to converter housing

1шт.

39

N7138

WASHER

GASKET - converter housing to transmission housing, no longer available, order D87221 gasket, Ref. 40

1шт.

40

D87221

GASKET

- converter housing to transmission housing

1шт.

S300125

HOUSING ASSY.

HOUSING ASSEMBLY - torque converter, use on models with L126646, L126645, L127062 and L127063 transmissions, Includes: Ref. 41 - 46

1шт.

See Figure 6-10 for transmission identifications.

1шт.

41

NSS

NOT SOLD SEPARAT

HOUSING - torque converter

1шт.

42

NLS

NO LONGER SERVICED

- lube by-pass

1шт.

43

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- tube

1шт.

44

N8129

CLIP

CLAMP - tube

1шт.

45

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

1шт.

46

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.
