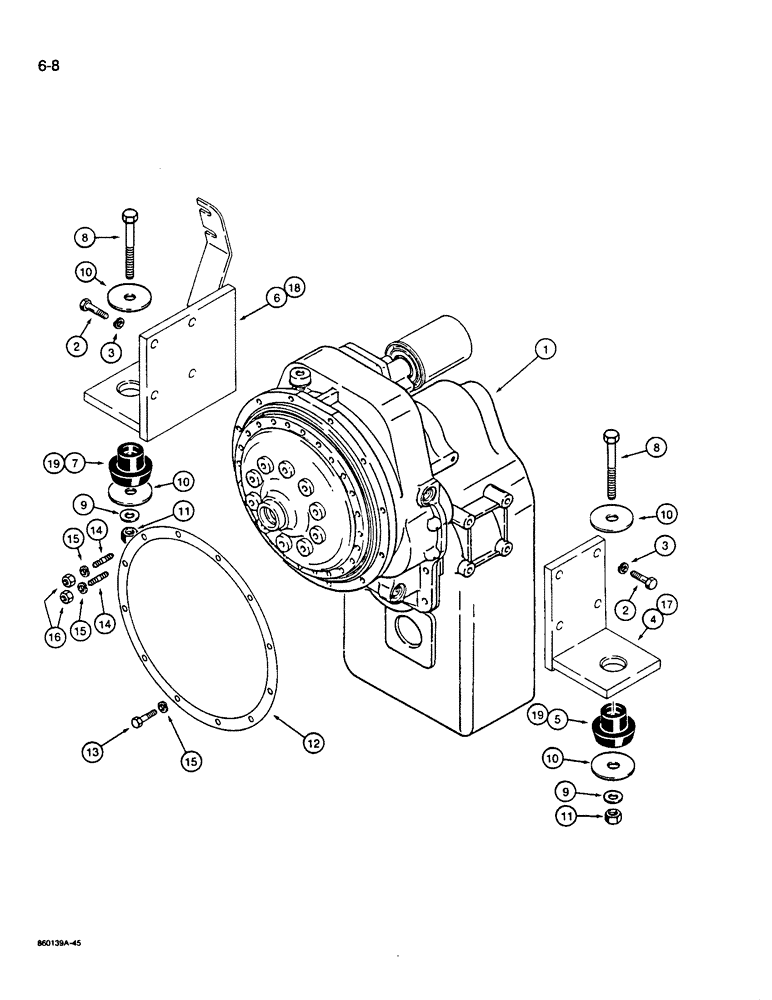

Запчасти Case W14B (6-08) - TRANSMISSION AND TRANSMISSION MOUNTS (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION - for correct asembly and components see figures 6-10 - 6-40

1шт.

2

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

3

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

L116692

SUPPORT

BRACKET ASSEMBLY - transmission mounting, right-hand, no longer available, order L126170 and A19066, Refs. 17 and 19, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

BRACKET - transmission mounting

1шт.

5

A19066

MOUNTING PARTS

MOUNT - transmission, rubber

1шт.

L117193

SUPPORT

BRACKET ASSEMBLY - transmission mounting, left-hand, used with transmission mounted parking brake, not shown, Includes: Ref. 6 and 7

1шт.

L117538

SUPPORT

BRACKET ASSEMBLY - transmission mounting, left-hand, used with axle mounted parking brake, no longer available, order L126174 and A19066, Refs. 18 and 19, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET - transmission mounting

1шт.

7

A19066

MOUNTING PARTS

MOUNT - transmission, rubber

1шт.

8

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

9

L79179

WASHER

- special, hardened, 1-1/2" O.D.

2шт.

10

A19068

WASHER

- rubber transmission mount, 3-3/4" O.D.

4шт.

11

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, 3/4"-10, GB

2шт.

12

D47428

GASKET

- converter housing to engine, no longer available, order B17428 sealant shown below

1шт.

13

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

- hex head, 10 mm - 1.5 x 40 mm (8.8), plated, housing to engine

10шт.

14

L112126

STUD

- converter, Serial Range: housing-engine

2шт.

15

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm, plated

12шт.

16

825-1110

NUT,M10, Cl 8

hex, plated M10, Cl 8

2шт.

17

L126170

SUPPORT

BRACKET - transmission mounting, right-hand

1шт.

18

L126174

SUPPORT

BRACKET - transmission mounting, left-hand, used with axle mounted parking brake

1шт.

19

A19066

MOUNTING PARTS

MOUNT - transmission, rubber

2шт.

B17428

LOCTITE

SEALANT - Gasket Eliminator No. 504, 50 ml tube, seals converter housing to engine housing, not shown

1шт.
