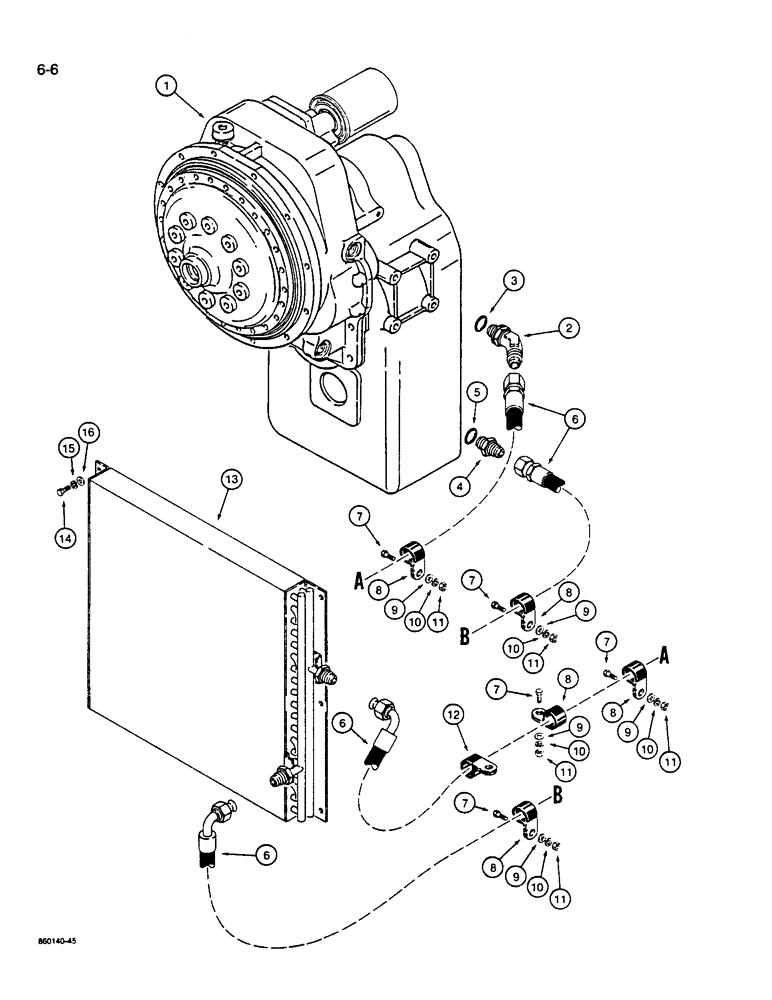

Запчасти Case W14B (6-06) - TRANSMISSION HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION - for correct assembly and components see figures 6-10 - 6-40

1шт.

2

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, transmission to cooler hose, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER- straight, cooler to transmission hose, Incl. Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Adapter

1шт.

6

L113477

HOSE ASSY.

HOSE - 87" (2210 mm) long, Serial Range: transmission-cooler

2шт.

7

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

8

D39138

CLAMP

- hoses

5шт.

9

195-103

WASHER,5/16"

- flat, , plated 5/16"

5шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER - lock, 3/8", plated

5шт.

11

9635082

NUT,5/16" - 18, Gr 5

5шт.

12

D43364

CLAMP

- hose, at frame, uses existing hardware

1шт.

13

A172527

COOLER, OIL

OIL COOLER - transmission

1шт.

14

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

16

195-25

WASHER,3/8"

- flat, , plated 3/8"

6шт.
