Запчасти Case W14B (5-18) - CHECK VALVE FOR AUXILIARY STEERING (05) - STEERING

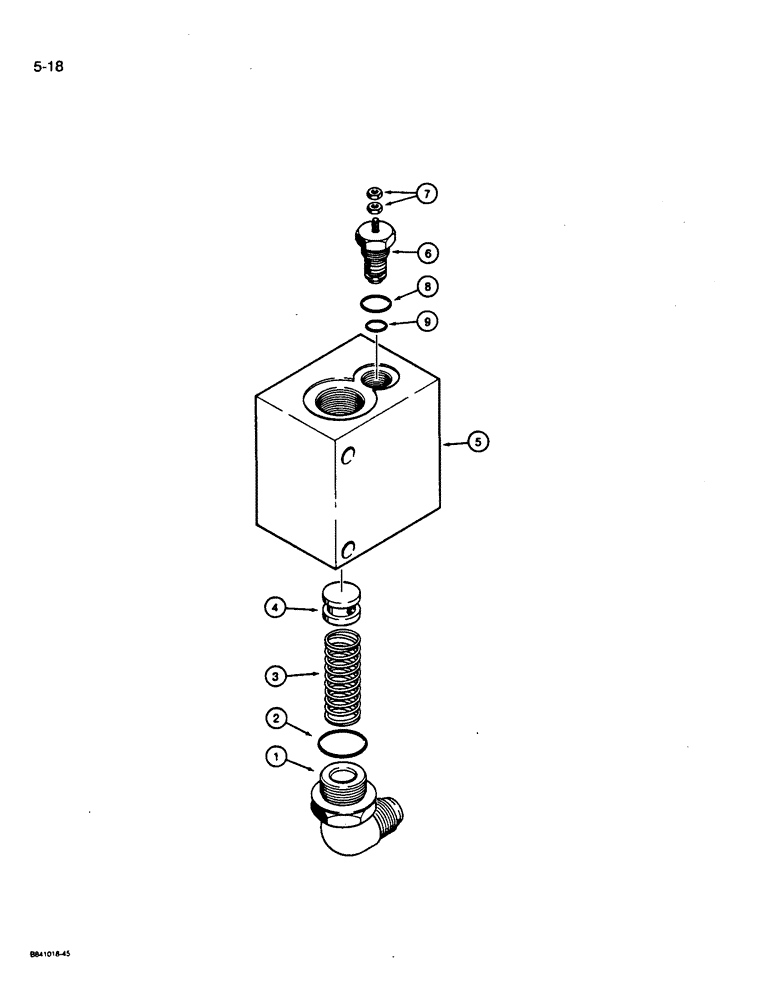

Схема запчастей Case W14B - (5-18) - CHECK VALVE FOR AUXILIARY STEERING (05) - STEERING

Артикул

Название

Примечание

Количество

L114148

CHECK VALVE

- auxiliary steering, Includes: Ref. 1 - 9

1шт.

1

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes: Ref. 2 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

3

L105563

SPRING

- check poppet

1шт.

4

L114126

VALVE POPPET

POPPET - check valve

1шт.

5

L107276

VALVE BODY

BODY - check valve

1шт.

N7782

TRANSMITTER

SWITCH ASSEMBLY - filter, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

7

129-17

NUT,Hex, #10 - 24

NUT - No. 10 - 24 NC, plated

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Switch, large, outer

1шт.

9

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- switch, small, inner

1шт.

Выбрано товаров: 11
