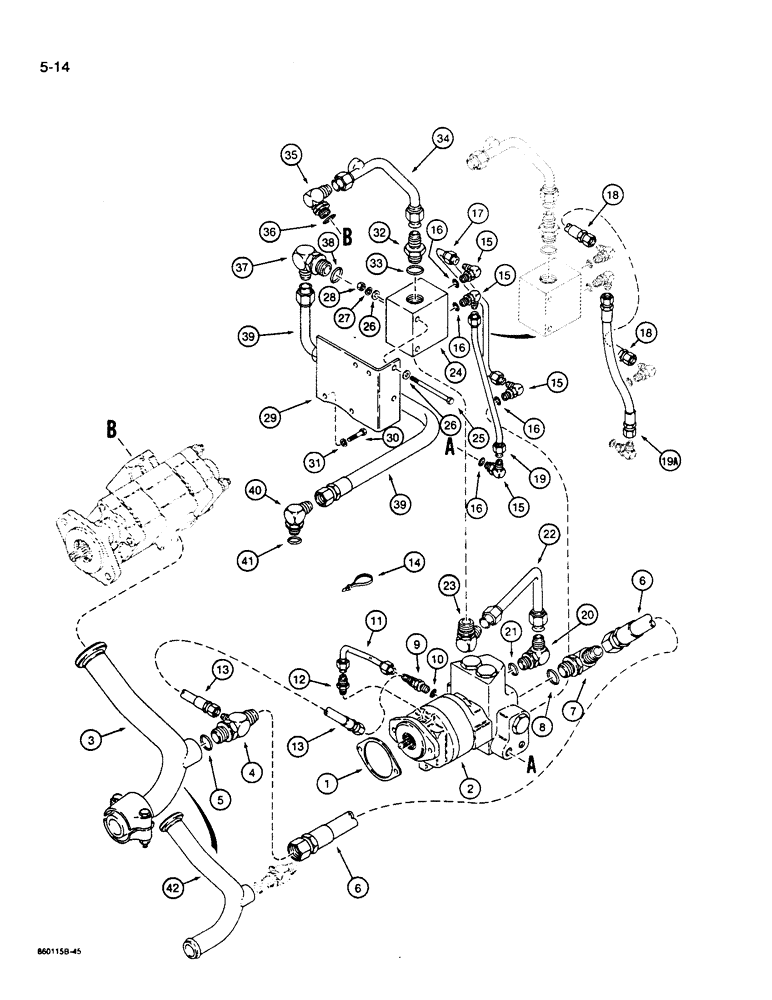

Запчасти Case W14B (5-14) - AUXILIARY STEERING HYDRAULIC CIRCUIT (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A58617
GASKET
- pump
1шт.
2
L106442
PUMP
ASSEMBLY - auxiliary steering, no longer available, order (4) 14-8124 bolts, N14455 pump assembly, and N8173 valve assembly, see Figure 5-16
1шт.
3
L118072
HOSE,50.8 mm OD
TUBE - suction, includes clamping hardware, use on units prior to P.I.N. JAK0017835
1шт.
4
L117500
TEE
- special, Includes: Ref. 5
1шт.
6
L117497
HOSE,25.4 mm ID x 500.00 mm, SAE 100R4
Suction 25.4 mm ID x 500.00 mm, SAE 100R4
1шт.
7
218-5110
ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. Ref. 8 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring
1шт.
9
218-5289
TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
- adjustable, drain, Includes: Ref. 10
1шт.
10
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, Tee
1шт.
11
L117301
TUBE,6.35 mm OD
- drain
1шт.
12
218-441
HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF
ADAPTER - straight
1шт.
13
D52712
HOSE ASSY.
HOSE - 27" (686 mm) long, drain
1шт.
14
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
2шт.
15
218-5103
90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
- 90 degree, Includes: Ref. 16
4шт.
16
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
4-1, 90 Duro, .351" ID x .072" Thk, Elbow
1шт.
17
L117311
TUBE ASSY.,6.35 mm OD
TUBE - pilot, to upper port on check valve, if used
1шт.
18
D52712
HOSE ASSY.
HOSE -27" (686 mm) long, pilot, to upper port on check valve, replaces L117311 tube (Ref. 17) used on some models
1шт.
19
L117286
HOSE ASSY.,6.35 mm OD x 336, 81 mm L
TUBE - pilot, to lower port on check valve, no longer available, replace with D61212 hose, Ref. 19A
1шт.
19a
D61212
HOSE ASSY.
HOSE - 19 inch long, pilot, to lower port on check valve
1шт.
20
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
90º, adjustable, Incl. Ref. 21
1шт.
21
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Elbow
1шт.
22
L117289
TUBE ASSY.,19.05 mm OD x 213 mm L
TUBE - pump to check valve
1шт.
23
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
part of L114148 check valve, parts list Figure 5-18 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring
1шт.
24
L114148
CHECK VALVE
VALVE - check, steering, parts list Figure 5-18
1шт.
25
413-668
BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5
- hex head, 3/8" - 16 NC x 4-1/4", plated
2шт.
26
495-21044
WASHER,3/8"
4шт.
27
492-11038
LOCK WASHER,3/8"
2шт.
28
425-106
NUT,3/8"-16, Cl 5
2шт.
29
L112106
BRACKET
- valve mounting
1шт.
30
413-728
BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5
2шт.
31
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
32
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
ADAPTER - straight, Incl. Ref. 33
1шт.
34
L117319
TUBE ASSY.,19.04 mm OD
TUBE - check valve to equipment and steering pump
1шт.
35
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
90º, adjustable, Incl. Ref. 36
1шт.
36
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk, Elbow
1шт.
37
218-5118
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Includes: Ref. 38 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring
1шт.
39
L117495
HOSE ASSY.
HOSE - 26-1/2" (672 mm) long, check valve to steering valve
1шт.
40
218-5123
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
- 90 degree, Includes: Ref. 41
1шт.
41
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
- elbow
1шт.
42
L126796
TUBE,50.8 mm OD
- suction, without clamping hardware, used with Refs. 1 and 39 on Figure 8-04, Start Serial: JAK0017835
1шт.
Выбрано товаров: 43
