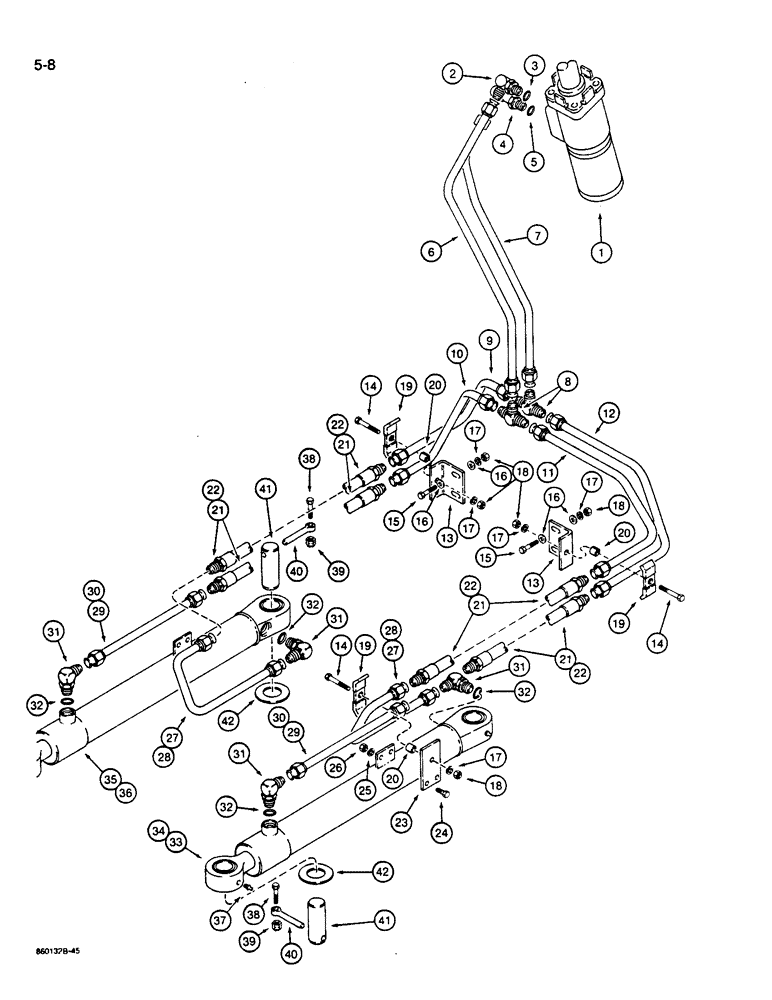

Запчасти Case W14B (5-08) - STEERING HYDRAULIC CIRCUIT, CONTROL VALVE TO CYLINDERS (05) - STEERING

1

L79641

PUMP

CONTROL VALVE - steering, parts list Figure 5-04

1шт.

2

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

4

L113702

ELBOW

- special, 90 degree, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

6

L113116

TUBE ASSY.,15.88 mm OD x 447.3, 486.9 mm L

TUBE - steering valve to tee, rear

1шт.

7

L113118

TUBE ASSY.,15.88 mm OD

TUBE - steering valve to tee, front

1шт.

8

218-595

TEE,7/8"-14, 37 Degree

- male

2шт.

9

L113875

TUBE ASSY.,15.88 mm OD

TUBE - manifold, to closed end of left-hand cylinder

1шт.

10

L113877

TUBE ASSY.,15.88 mm OD

TUBE - manifold, to rod end of left-hand cylinder

1шт.

11

L113871

TUBE ASSY.,15.88 mm OD

TUBE - manifold, to closed end of right-hand cylinder

1шт.

12

L113873

TUBE ASSY.,15.88 mm OD

TUBE - manifold, to rod end of right-hand cylinder

1шт.

13

L113819

BRACKET

- tube mounting

2шт.

14

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch, zinc plated

4шт.

15

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4", zinc plated

4шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

8шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, plated

8шт.

19

D33316

CLAMP

- tube

4шт.

20

D76209

SPACER

- tube

4шт.

21

L74997

HOSE ASSY.,0.50" ID x 20.00"

HOSE ASSY, , To Steering Cylinders, Used With G107460 and G107461 Steering Cylinders; See Figure 5-22 for Cylinder Identification, If Used 0.50" ID x 20.00"

4шт.

22

H263293

HOSE,0.50" ID x 17.00", SAE 100R2

to Steering Cylinders, used with G110186 and G110187 Steering Cylinders, see Figure 5-24 for Cylinder Identification, if used 0.50" ID x 17.00", SAE 100R2

4шт.

23

L114052

BRACKET

- tube mounting

2шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

4шт.

25

492-11038

LOCK WASHER,3/8"

4шт.

26

425-106

NUT,3/8"-16, Cl 5

4шт.

27

L113867

TUBE ASSY.,15.88 mm OD x 256.5, 143.2 mm L

TUBE - steering cylinder, head end, used with G107460 and G107461 steering cylinders, see Fig. 5-22 for cylinder identification, if used

2шт.

28

L118452

TUBE ASSY.,15.88 mm OD x 256.5, 143.2 mm L

TUBE - steering cylinder, head end, used with G110186 and G110187 steering cylinders, see Fig. 5-24 for cylinder identification, if used

2шт.

29

L113865

TUBE ASSY.,15.88 mm OD x 336 mm L

TUBE - steering cylinder, rod end, used with G107460 and G107461 steering cylinders, see Fig. 5-22 for cylinder identification, if used

2шт.

30

L118450

TUBE ASSY.,15.88 mm OD x 412.2 mm L

TUBE - steering cylinder, rod end, used with G110186 and G110187 steering cylinders, see Fig. 5-24 for cylinder identification, if used

2шт.

31

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 32

4шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

33

G107460

CYLINDER

- steering, right-hand, parts list Fig. 5-22, if used

1шт.

34

G110186

CYLINDER

- steering, right-hand, parts list Fig. 5-24, if used

1шт.

35

G107461

CYLINDER

- steering, left-hand, parts list Fig. 5-22, if used

1шт.

36

G110187

CYLINDER

- steering, left-hand, parts list Fig. 5-24, if used

1шт.

37

219-3

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, long

2шт.

38

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8"-16 NC x 1-1/2", zinc plated

4шт.

39

131-52

NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC, plated

4шт.

40

L74982

END

PIN - lock, cylinder

4шт.

41

L47952

PIN,34.91mm OD x 95.25mm L

- cylinder mounting

4шт.

42

A31269

WASHER,38.89mm ID x 73.03mm OD x 3.17mm Thk

- thrust, special

4шт.
