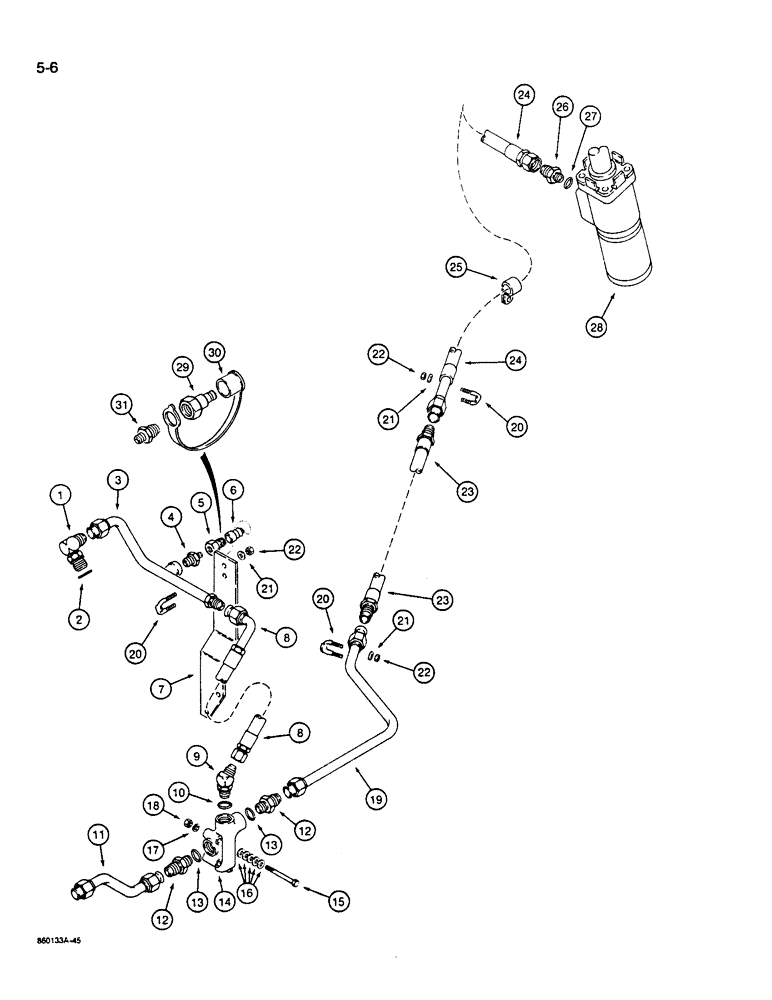

Запчасти Case W14B (5-06) - STEERING HYDRAULIC CIRCUIT, PUMP TO CONTROL VALVE (05) - STEERING

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, Incl. Ref. 2

1шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, Elbow

1шт.

3

L116887

TUBE ASSY.,223.4 mm L

TUBE - steering supply, from pump

1шт.

4

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

ADAPTER - straight, 3/4 PT x 1/4 PT, used on units with S206607 quick disconnect only

1шт.

5

S206607

DISC

QUICK DISCONNECT - male, test, if used

1шт.

6

D123387

DUST CAP

CAP - dust, with chain, used on units with S206607 quick disconnect

1шт.

7

L118142

BRACKET

- tube support

1шт.

8

L116838

HOSE ASSY.

HOSE - 90-1/2" (2300 mm) long, steering supply from pump

1шт.

9

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Incl. Ref 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

11

L116919

TUBE ASSY.,19.05 mm OD x 242.7, 119.6 mm L

TUBE - return to filter

1шт.

12

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, Includes: Ref. 13

2шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

14

L51457

VALVE

FLOW CONTROL VALVE ASSEMBLY - parts list Figure 5-20

1шт.

15

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex head, 5/16" - 18 NC x 3", zinc plated

2шт.

16

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

10шт.

17

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

- hex, 5/16" - 18 NC, zinc plated

2шт.

19

L113804

TUBE ASSY.,19.05 mm OD x 48.14, 275.5 mm L

TUBE - flow control valve to steering valve

1шт.

20

L78948

U-BOLT

- tube mounting

3шт.

21

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

6шт.

22

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC, plated

6шт.

23

L77031

HYDRAULIC HOSE,0.63" ID x 20.00"

Steering Supply, Across Hinge 0.63" ID x 20.00"

1шт.

24

L117744

HOSE

- 58" (1473 mm) long, steering supply to steering valve

1шт.

25

D34033

CLAMP

- hose, use existing hardware on manifold tube mounting bracket, see Figure 5-08

1шт.

26

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, Includes: Ref. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Adapter

1шт.

28

L79641

PUMP

CONTROL VALVE - steering, parts list Figure 5-04

1шт.

29

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

COUPLING - quick disconnect, if used

1шт.

30

H434163

DUST CAP

CAP - dust, use on units with D137625 coupling

1шт.

31

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 1-1/16-12 flare x 3/4 inch PT, used on units with D137625 coupling only

1шт.
