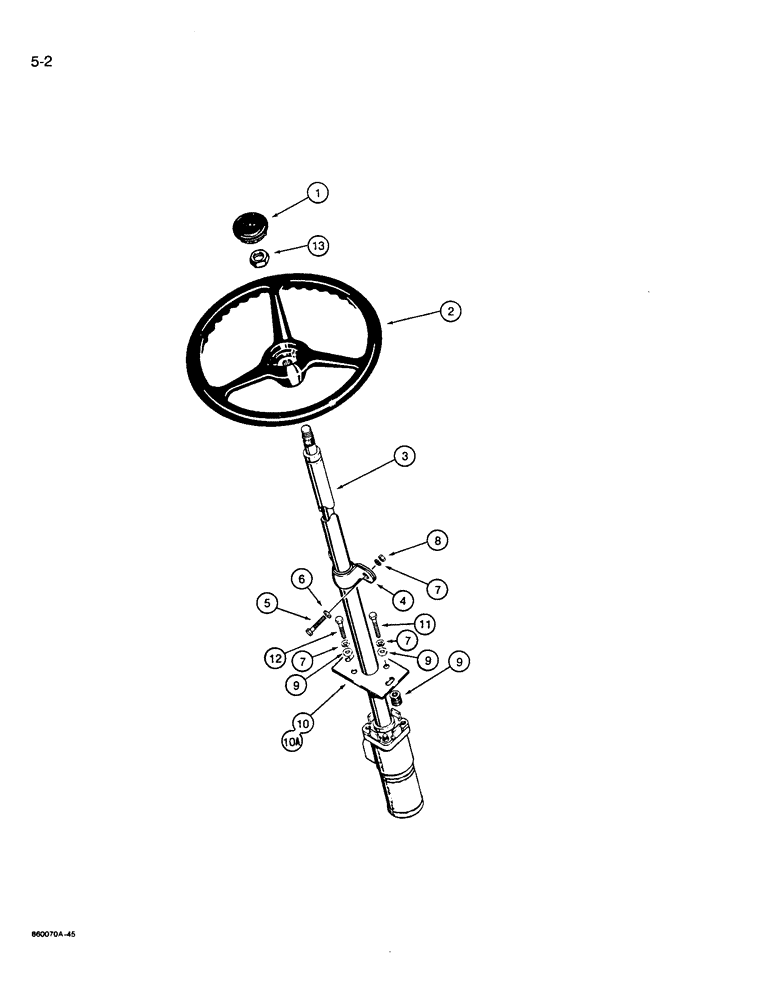

Запчасти Case W14B (5-02) - STEERING CONTROL VALVE AND WHEEL (05) - STEERING

1

L114276

CAP

- steering wheel

1шт.

2

L74518

WHEEL

STEERING WHEEL - tractor

1шт.

3

L79641

PUMP

VALVE ASSEMBLY - steering, parts list Figure 5-04

1шт.

4

L105044

BEARING

- steering column support

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

2шт.

6

495-21044

WASHER,3/8"

2шт.

7

492-11038

LOCK WASHER,3/8"

6шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

495-21044

WASHER,3/8"

12шт.

10

L112431

BRACKET

PLATE - floor, steering alignment, used on chassis with square opening, if used

1шт.

10a

L118281

BRACKET

PLATE - floor, steering alignment, used on chassis with rectangular opening, if used

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", zinc plated

2шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex head, 3/8" - 16 NC x 1", zinc plated

2шт.

13

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex, special, steering wheel

1шт.
