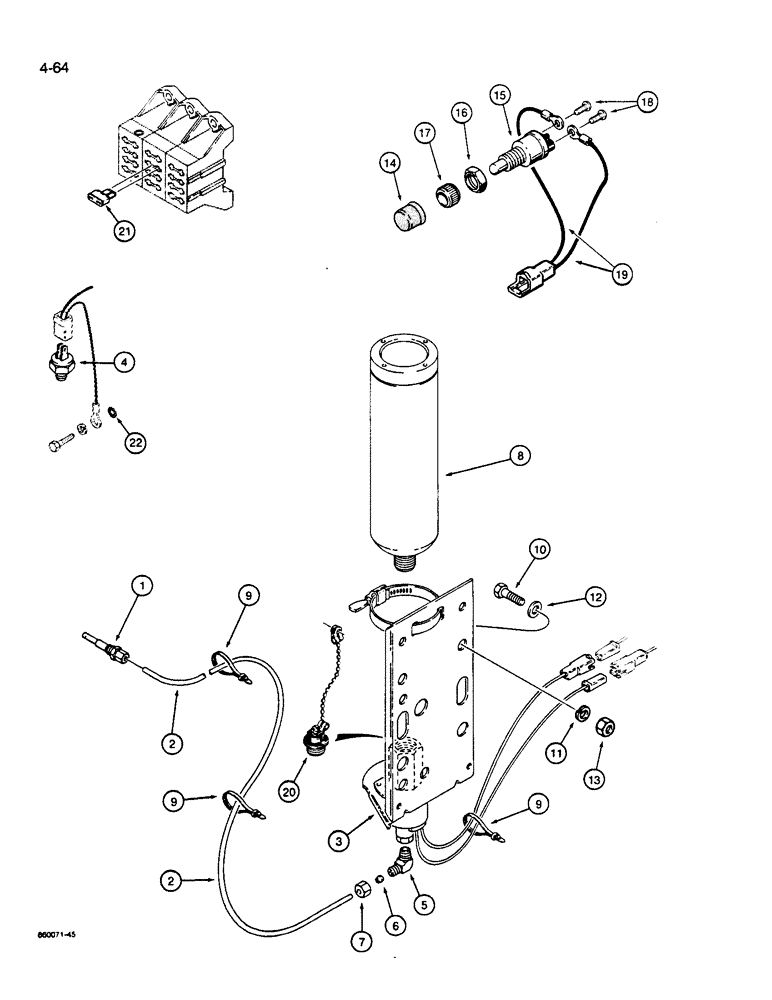

Запчасти Case W14B (4-64) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

L115827

GLOW PLUG

KIT - cold start, for service order component parts below, Includes: Ref. 1 - 7

1шт.

1

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - cold start injector, dual orifice nozzle, replaces existing plug, mounts to side of manifold, component parts not serviced separately

1шт.

N8728

TUBE,1/8" OD x 96" L

KIT - tube, Includes: Ref. 2, 6 and 7

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - valve to injector nozzle, 24" (610 mm) long, cut from 96" (2438 mm) tube provided in kit

1шт.

3

N14224

VALVE

ASSEMBLY - 3 cc starting fluid injection, with bracket, component parts not serviced separately

1шт.

4

A172117

SWITCH

- thermostat, circuit breaking

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - elbow, Includes: Ref. 5 - 7

1шт.

6

222-650

SLEEVE,1/8" Tube, Comp

Brass 1/8" Tube, Comp

1шт.

7

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8", brass 5/16"-24, 45º Fl, Comp

1шт.

8

A171940

CYLINDER

CONTAINER - starting fluid

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

10

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

12

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

14

L60490

BUTTON

BOOT - switch

1шт.

L72776

SWITCH

ASSEMBLY - cold start, Includes screws and Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

SWITCH - cold start

1шт.

16

H275784

JAM NUT

- hex, jam, special

1шт.

17

D73741

NUT

- special

1шт.

18

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE SCREW - round head slotted, No. 8 - 32 NC x 1/4", plated

2шт.

19

L115041

CABLE

WIRE - jumper

1шт.

20

N8826

PLUG

- with chain, place in starting fluid valve when starting fluid canister is not in place, if used

1шт.

21

A149800

FUSE,10 Amp

- 10 amp

1шт.

22

193-74

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER - internal-external tooth lock, 5/16", plated

1шт.
