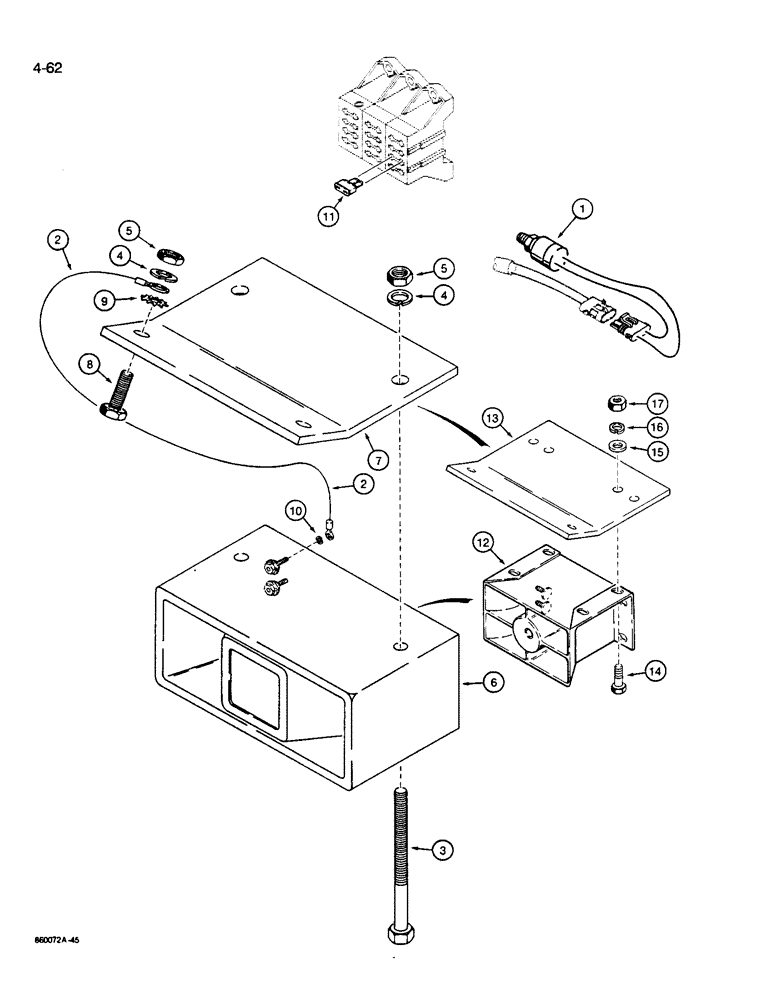

Запчасти Case W14B (4-62) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

L116235

IGNITION SWITCH

SWITCH - backup alarm, mounts to transmission control valve

1шт.

2

L115696

HARNESS

WIRE - ground

1шт.

3

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

2шт.

4

492-11038

LOCK WASHER,3/8"

2-4шт.

5

425-106

NUT,3/8"-16, Cl 5

2-4шт.

6

L116668

ALARM

ASSEMBLY - backup, no longer available, order (1) each of Ref. 12, D121972 and Ref. 13, L126819, and (2) each of Ref. 14, 15, 16, and 17 hardware

1шт.

Ref #6 - D121972 Alarm can be used.

1шт.

7

L116569

BRACKET

- backup alarm, use on units with L116668 alarm

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4", plated

2шт.

9

193-72

LOCK WASHER

- internal-external toolth lock, 3/8", plated

1шт.

10

192-31

LOCK WASHER,1"

WASHER - lock, No. 8, plated

2шт.

11

A149796

FUSE

- 3 amp

1шт.

12

D121972

ALARM

- backup

1шт.

13

L126819

BRACKET

- backup alarm, use on units with D121972 alarm

1шт.

14

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex head, 1/4" - 20 NC x 7/8", zinc plated

2шт.

15

495-21031

WASHER,1/4"

- flat, , zinc plated 1/4"

2шт.

16

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

17

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, 1/4" - 20 NC, zinc plated

2шт.
