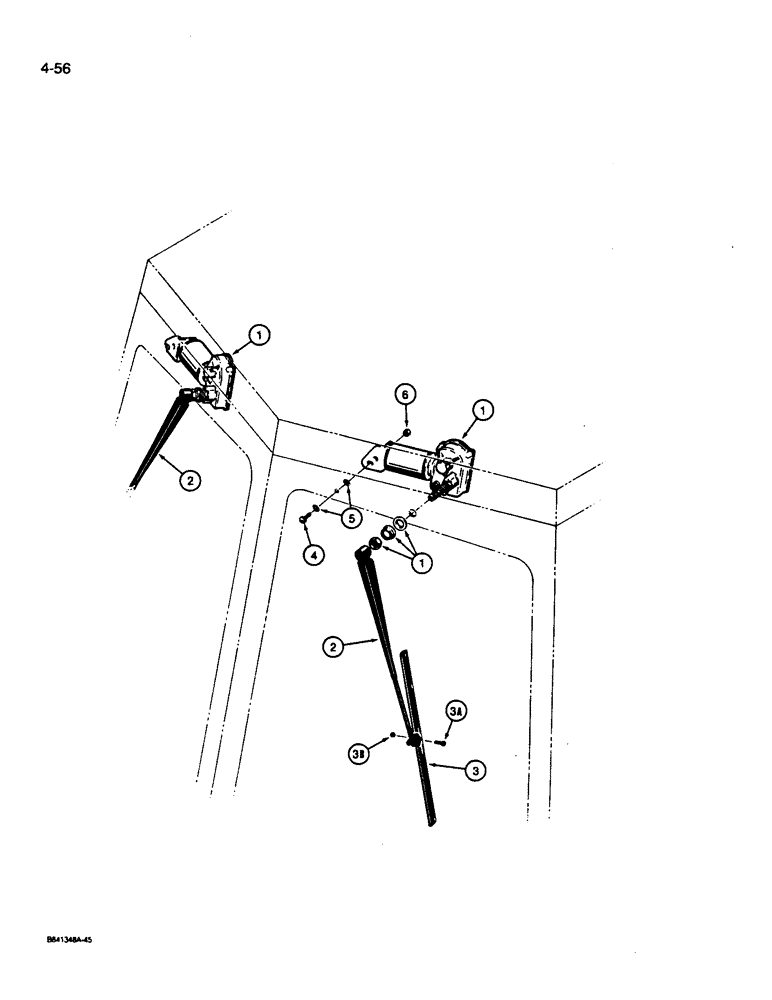

Запчасти Case W14B (4-56) - REAR WIPER (04) - ELECTRICAL SYSTEMS

1

L112536

MOTOR, ELECTRIC

MOTOR - rear wiper

2шт.

2

T41946

ARM

- rear wiper

2шт.

3

L112540

WIPER

BLADE - rear wiper, Includes: Ref. 3A and 3B

2шт.

3a

170-105

SCREW,Sl Pan Hd, #5 - 40 x 1/2"

- machine, pan head slotted, No. 5 NC x 1/2 inch, blade attaching

1шт.

3b

129-14

NUT,#5-40

Blade attaching #5-40

1шт.

4

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

5

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC

2шт.
