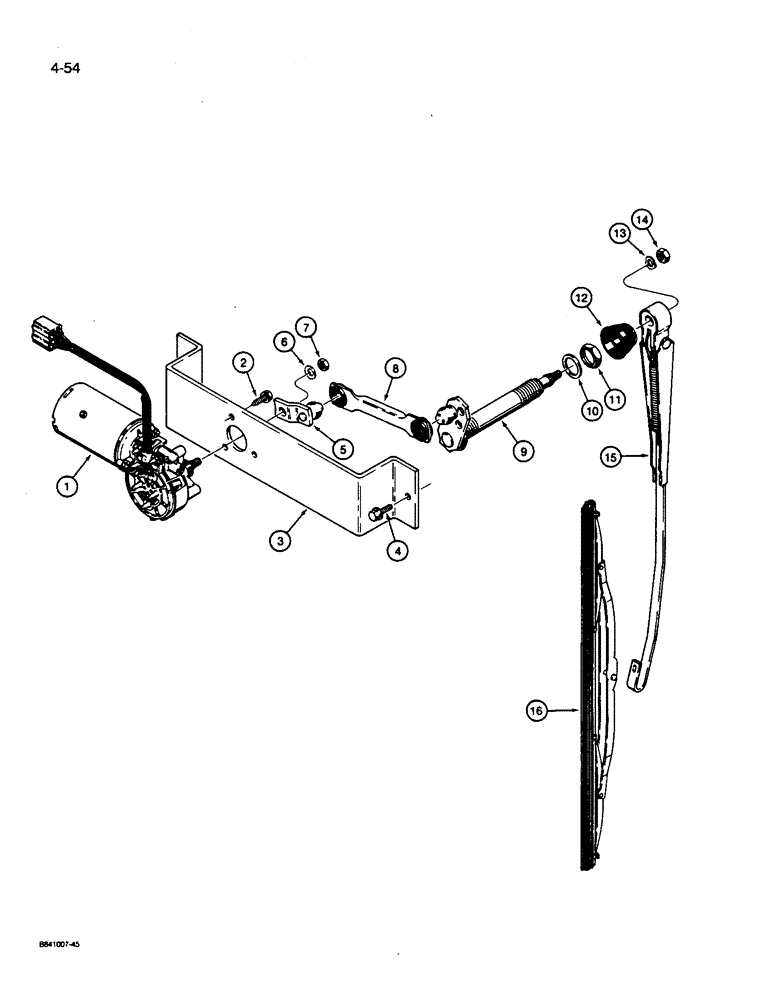

Запчасти Case W14B (4-54) - CAB FRONT WIPER (04) - ELECTRICAL SYSTEMS

1

F96877

WIPER MOTOR

MOTOR - front wiper, 24 volt

1шт.

2

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER - special, motor to bracket

3шт.

3

F45282

BRACKET

- front wiper mounting

1шт.

4

187-575

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex washer head, self-tapping, 1/4" - 20 NC x 3/4"

2шт.

5

N8360

SUPPORT

ARM - drive

1шт.

6

N8361

SPRING WASHER

- bent, special

1шт.

7

L112090

NUT

- hex, special, 8 mm

1шт.

8

F45346

ROD

LINK - wiper

1шт.

9

F45345

PIN

SHAFT - pivot

1шт.

10

L112088

WASHER

- special

1шт.

Ref #10A - 122117A1 Seal, released to add to the windshield wiper shaft to help seal out water.

1шт.

11

L112087

NUT

- special

1шт.

12

L112081

CAP

- pivot shaft

1шт.

13

L112089

WASHER

- bent, special

1шт.

14

L112090

NUT

- hex, special, 8 mm

1шт.

15

F45283

ARM

- wiper

1шт.

16

L112080

WIPER

BLADE - wiper arm

1шт.
