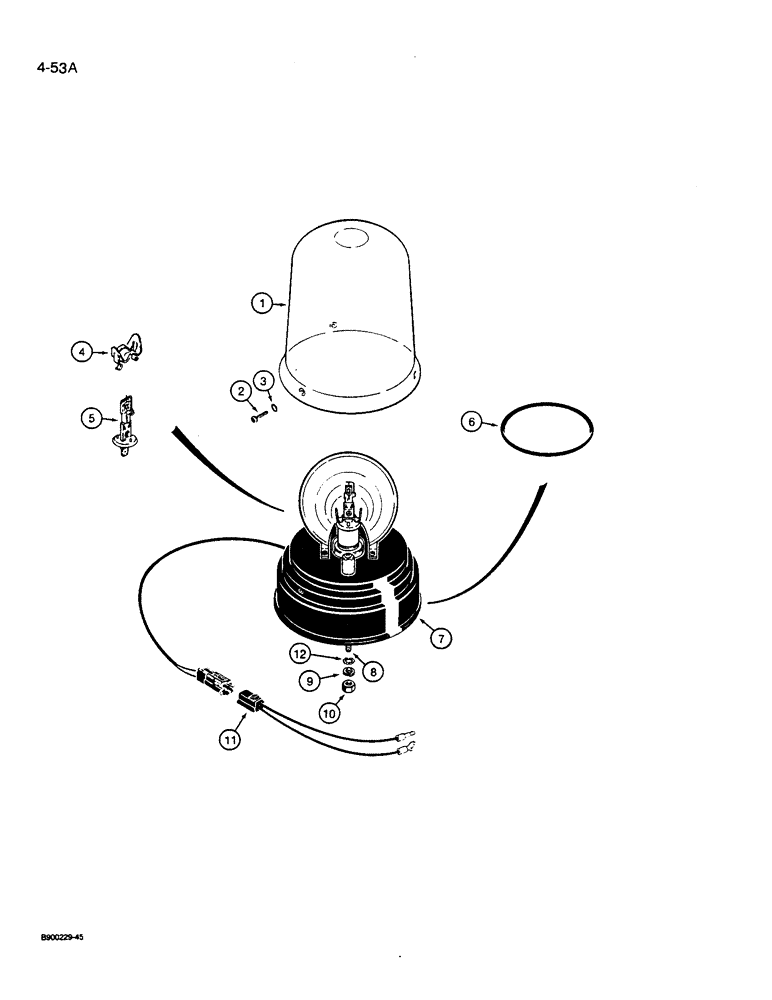

Запчасти Case W14B (4-53A) - A187528 ROTATING BEACON (04) - ELECTRICAL SYSTEMS

A187528

LIGHT ASSY.

BEACON ASSEMBLY - rotating, Includes: Ref. 1 - 10

1шт.

For other rotating beacon see Figure 4-52.

1шт.

1

A187542

LENS

- beacon, amber

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

- drive, round head, No. 8 x 1/2 inch, Lens mounting

3шт.

3

S5598

O-RING,0.106" ID x 0.218" OD x 0.73"

SEAL - lens mounting screw

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP - bulb

1шт.

5

A187543

BULB,H1 24V 70W

- halogen, rotating beacon

1шт.

6

A187575

O-RING

Drive Motor, Rotating Beacon

1шт.

7

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY - with drive motor, rotating beacon

1шт.

8

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 - 1 x 20 mm

3шт.

9

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

10

825-1406

NUT,M6, Cl 8

3шт.

11

L127770

ELECTRICAL WIRE

WIRE - jumper, rotating beacon, if used

1шт.

12

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - internal external tooth lock, 1/4 inch, if used

1шт.
