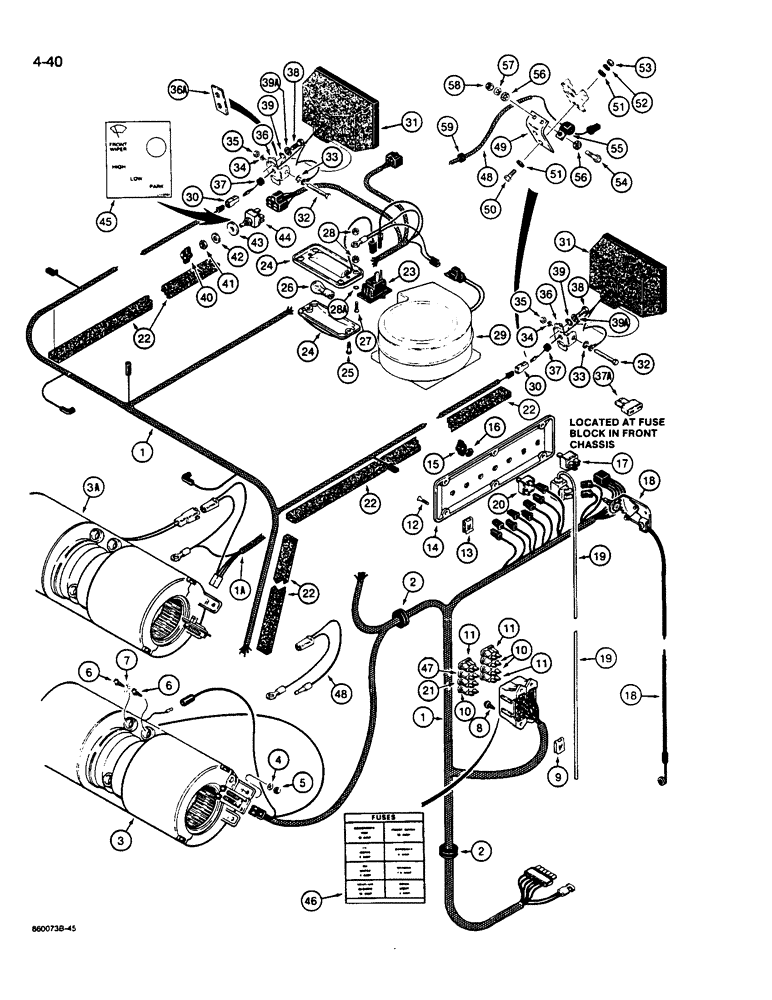

Запчасти Case W14B (4-40) - CAB AND CANOPY WIRING (04) - ELECTRICAL SYSTEMS

1

L114811

HARNESS

- cab, used on models with F96902 blower motor (see Ref. 3)

1шт.

1a

A187761

HARNESS

- cab, used on models with A187600 blower motor (see Ref. 3A)

1шт.

2

A75989

GROMMET

- harness

2шт.

3

REF

INSTRUCTION

BLOWER ASSEMBLY - cab, with bullet type connector, use with L114811 harness, parts list Figure 4-60

1шт.

3a

REF

INSTRUCTION

BLOWER ASSEMBLY - cab, with molded terminal, use with A187761 harness, parts list Figure 4-60

1шт.

4

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

5

F45165

SPECIAL NUT,#10-24

NUT - special

4шт.

6

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, No. 10 - 16 NC x 1/2"

2шт.

7

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - external-internal tooth lock, 1/4"

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - special

4шт.

9

131-121

SPRING NUT,Tinn, U, #10-24

4шт.

10

A149796

FUSE

- 3 amp

1-3шт.

11

A149800

FUSE,10 Amp

- 10 amp

2-3шт.

12

179-156

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- No. 10 - 24 NC x 3/4"

6шт.

13

131-143

SPRING NUT,Tinn, U, #10-24

6шт.

14

F96787

COVER

PANEL - control

1шт.

15

L74694

KNOB

- control

2-7шт.

16

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switch

2-7шт.

17

A42622

SWITCH

- blower

1шт.

18

L108188

CABLE

- heat control

1шт.

19

L108189

SWITCH

- air conditioner thermostat

1шт.

20

L70872

SWITCH

- accessories

1-4шт.

21

A149799

FUSE

- 7.5 amp

1шт.

22

F45178

FOAM

SUPPORT - harness

3шт.

23

L108547

SWITCH

- dome lamp

1шт.

24

F96897

LAMP

- dome, Includes: Ref. 25 and 26

1шт.

25

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

MACHINE SCREW - No. 8 - 32 NC x 1/4"

2шт.

26

D71459

LAMP

BULB - dome lamp, 24V, No. 1591

1шт.

27

171-238

SCREW,Sl Flat Hd, #8 - 32 x 5/8"

MACHINE SCREW - slotted head, No. 8 - 32 NC x 5/8"

4шт.

28

129-16

NUT,#8-32

5шт.

28a

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

29

REF

INSTRUCTION

DEFROSTER - cab, parts list Figure 4-58

1шт.

30

223-166

CONNECTOR, ELEC

CONNECTOR - harness female

2шт.

31

L113375

LIGHT ASSY.

LAMP - front flood, parts list Figure 4-44

2шт.

32

113-110

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16"-18 x 2 1/4", G5

2шт.

33

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

2шт.

36

L113415

BRACKET

- flood lamp

2шт.

36a

F45392

PLATE

- cover, flood lamp bracket

2шт.

37

L13766

GROMMET

- bracket

2шт.

37a

A149800

FUSE,10 Amp

- 10 amp, flood lamp, located in fuse block in front chassis

1шт.

38

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

39

193-72

LOCK WASHER

- external-internal tooth lock, 3/8"

4шт.

39a

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

40

L74694

KNOB

- wiper

1шт.

41

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- wiper switch

1шт.

42

195-2018

WASHER,.469" x 3/4" x .065"

- special

1шт.

43

195-2066

WASHER,33/64" x 7/8" x .180"

- special

1шт.

44

L111292

SWITCH

- wiper

1шт.

45

L112701

DECAL

- wiper

1шт.

46

R52564

DECAL

- fuses in cab

1шт.

47

A149798

FUSE

- 5 amp

1шт.

48

A187699

HARNESS

ADAPTOR - harness, use to adapt L114811 harness (Ref. 1) to A187600 blower motor (see Ref. 3A), parts used on models with ROPS canopy only

1шт.

49

L113416

BRACKET

- flood lamp mounting to canopy roof, parts used on models with ROPS canopy only

2шт.

50

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Parts used on models with ROPS canopy only Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

51

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated, parts used on models with ROPS canopy only

8шт.

52

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Parts used on models with ROPS canopy only 3/8"

4шт.

53

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Parts used on models with ROPS canopy only 3/8"-16, G5

4шт.

54

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Parts used on models with ROPS canopy only Hex, 5/16"-18 x 1", G5, Full Thd

4шт.

55

S83716

CLAMP,1/8", Insul, 5/16" Bolt

- lamp wire, parts used on models with ROPS canopy only

2шт.

56

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, , Parts used on models with ROPS canopy only Ext-Int Tooth, 5/16"

8шт.

57

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Parts used on models with ROPS canopy only 5/16"

4шт.

58

9635082

NUT,5/16" - 18, Gr 5

Parts used on models with ROPS canopy only 5/16"-18, G5

4шт.

59

A17599

GROMMET,1/4" ID x 7/16" Groove Dia

- flood lamp wire through canopy frame, parts used on models with ROPS canopy only

4шт.
