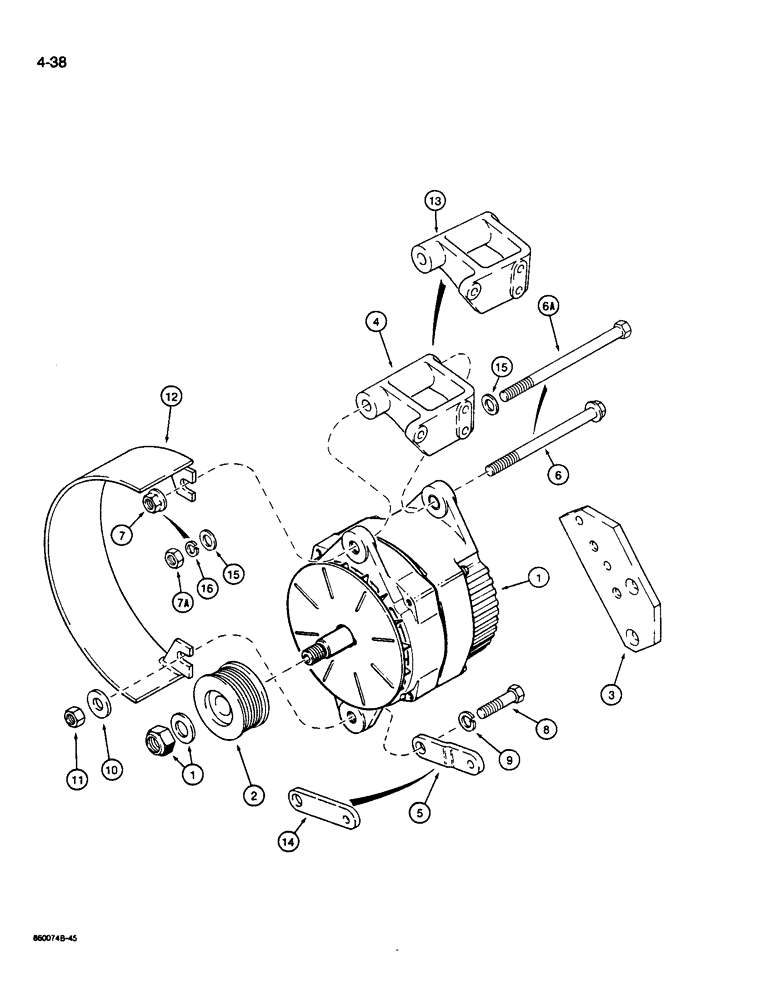

Запчасти Case W14B (4-38) - 65 AMP ALTERNATOR AND MOUNTING PARTS (04) - ELECTRICAL SYSTEMS

1

L114250

ALTERNATOR ASSEMBLY - engine (Delco-Remy No. 1105474), includes pulley mounting hardware, parts list Figure 4-4

1шт.

2

L118380

PULLEY

- alternator

1шт.

3

J904552

SUPPORT

BRACKET - belt tensioner

1шт.

4

J906383

BRACE

BRACKET - alternator mounting, no longer available, order J910923, Ref. 13

1шт.

5

J903104

PLATE

BRACE - alternator mounting, no longer available, order J910924, Ref. 14

1шт.

6

J903105

FLANGE BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

BOLT - special, 12 mm x 150 mm, replaced by 413-8104, Ref. 6A

1шт.

If either Ref. 6 or 7 is replaced, Ref. 6A, 7A, 15 and 16 must be ordered.

1шт.

6a

413-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

- hex, 1/2 NC x 6-1/2 inch

1шт.

7

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

- hex flange, 12 mm - 1.75, class 10, Special, Replaced by 425-108, Ref 7A

1шт.

If either Ref. 6 or 7 is replaced, Ref. 6A, 7A, 15 and 16 must be ordered.

1шт.

7a

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4", plated

1шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

195-106

WASHER,1/2"

- flat, , plated 1/2"

1шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

12

L117681

GUARD

- alternator fan

1шт.

13

J910923

BRACE

BRACKET - alternator mounting

1шт.

14

J910924

PLATE

BRACE - alternator mounting

1шт.

15

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Used with 413-8104 bolt M13.5 x 24 x 2.5

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with 413-8104 bolt 1/2"

1шт.
