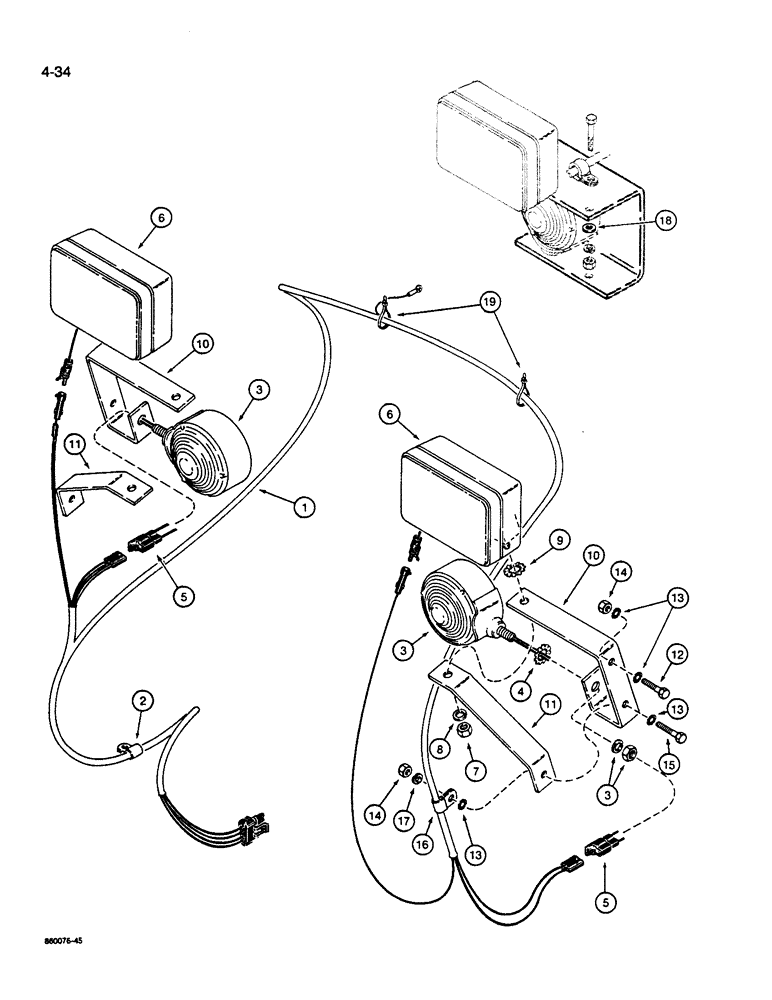

Запчасти Case W14B (4-34) - REAR LAMP HARNESS (04) - ELECTRICAL SYSTEMS

1

L115332

HARNESS

- rear lamps

1шт.

2

49838

CLAMP

- harness

1шт.

3

L114617

LAMP

- stop and tail, parts list Figure 4-46

2шт.

4

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

5

223-173

CONNECTOR, ELEC

CONNECTOR - wire

2шт.

6

L113373

LIGHT ASSY.

LAMP - flood, parts list Figure 4-44

2шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

10

L114519

BRACKET

- mounting, rear flood lamp, if used

2шт.

11

L114520

BRACE

- mounting, rear flood lamp, if used

2шт.

12

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

13

193-72

LOCK WASHER

- external-internal tooth lock, 3/8", plated

8шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

16

49845

CLAMP

- harness

2шт.

17

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

195-104

WASHER,3/8"

- flat, , plated 3/8"

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
