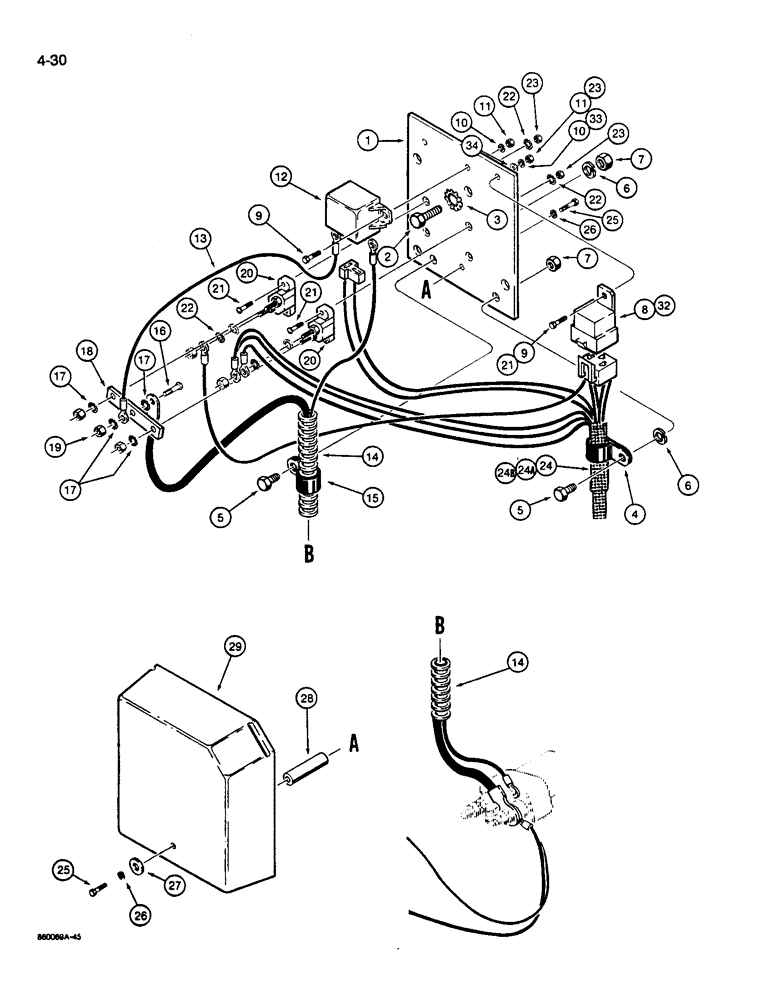

Запчасти Case W14B (4-30) - REAR HARNESS TO RELAY PANEL (04) - ELECTRICAL SYSTEMS

1

L115657

PLATE

PANEL - relay mounting

1шт.

2

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

193-72

LOCK WASHER

- internal-external tooth lock, 3/8", plated

1шт.

4

NLS

NO LONGER SERVICED

- harness

1шт.

5

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16" - 18 NC x 1", zinc plated

2шт.

6

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

2шт.

8

L114539

RELAY

- cab, plastic, no longer used, order Ref. 21, 32, 33, and 34

1шт.

9

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

(1) used with Ref. 8, plastic relay Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (1) used with Ref. 8, plastic relay 1/4"

3шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, (1) used with Ref. 8, plastic relay

3шт.

12

L115883

RELAY

- starter

1шт.

13

L114058

HARNESS

WIRE - jumper

1шт.

14

L114132

CABLE

-, Serial Range: starter-relay

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- cable

1шт.

16

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- pan head slotted, No. 10 - 24 NC x 5/8", plated

1шт.

17

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

4шт.

18

L114028

BAR

- connector

1шт.

19

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated

1шт.

20

L114199

BREAKER

CIRCUIT BREAKER - 30 amp

2шт.

21

182-127

SCREW,Sl Pan Hd, #10 - 24 x 3/4"

- pan head slotted, No. 10 - 24 NC x 3/4", (1) used with metal relay

5шт.

22

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

6шт.

23

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, (1) used with metal relay

5шт.

24

L118146

HARNESS

- rear, used with Delco alternator

1шт.

24a

L123681

HARNESS

- rear, used with Bosch alternator, uses plastic alternator output cap, no longer available, order L124473

1шт.

24b

L124473

HARNESS

- rear, used with Bosch alternator, has molded rubber alternator output cap

1шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

27

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

28

L114195

SPACER

- relay cover

1шт.

29

L114612

COVER

- relay panel

1шт.

30

B17400

CLEANER

- electrical, 16 oz. spray, not shown

1шт.

31

M20861

ADHESIVE

SEAL - electrical, 16 oz. spray, not shown

1шт.

32

L118429

RELAY

- lamps, metal

1шт.

33

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Used with metal relay #10

1шт.

34

195-13

WASHER,#10

- flat, No. 10, used with metal relay

1шт.
